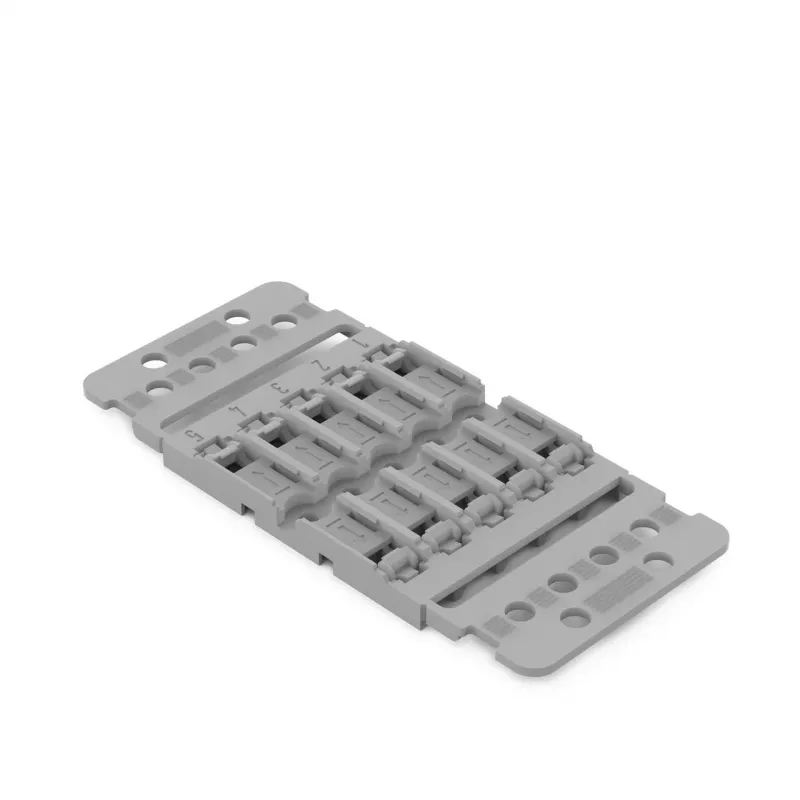

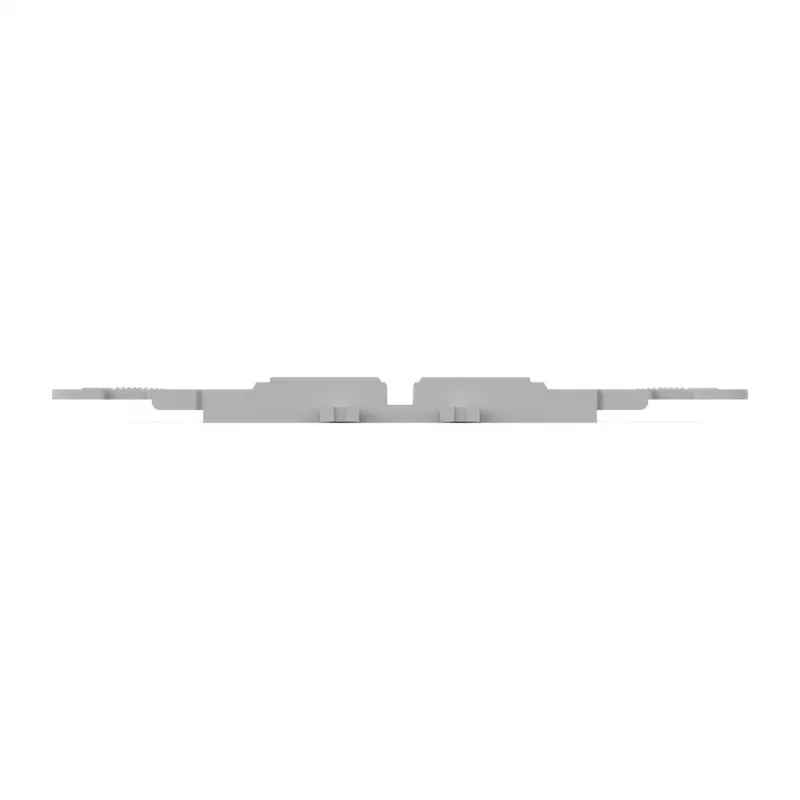

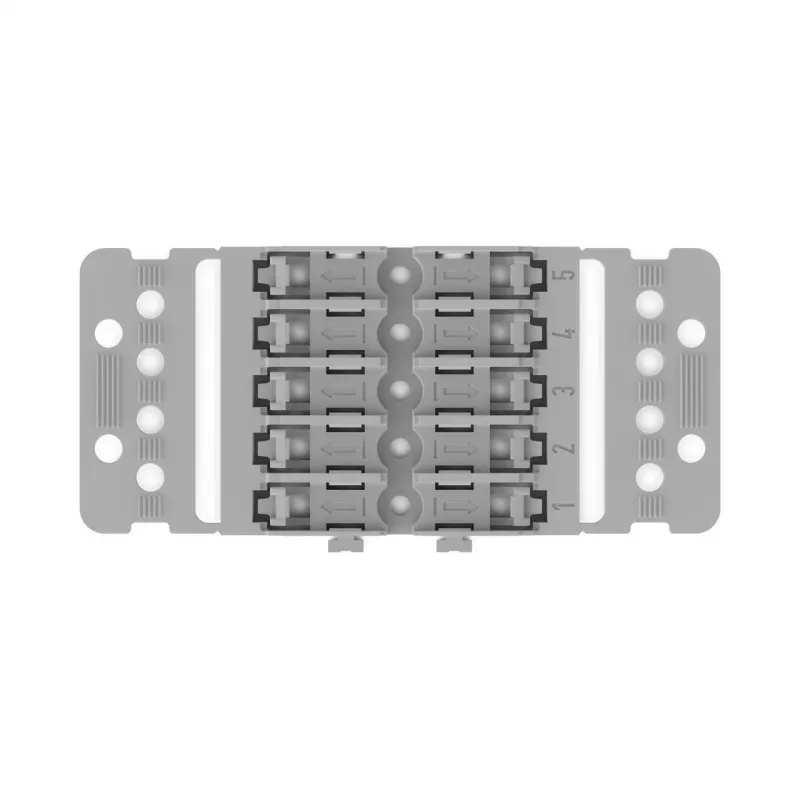

WAGO 221-2505 Βάση τοποθέτησης με ανακούφιση έλξης, 5 θέσεων, γκρι

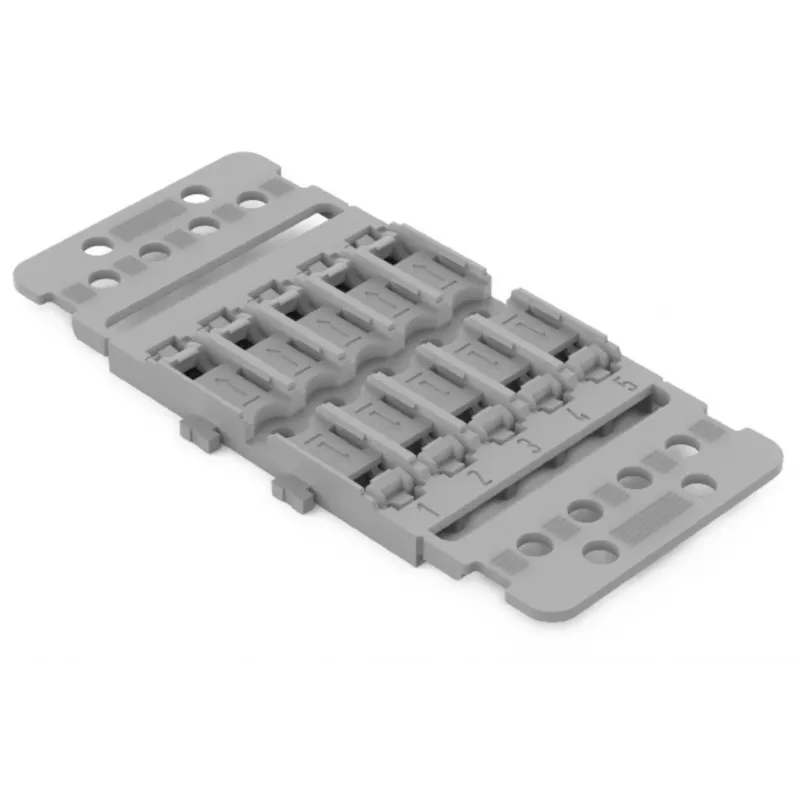

The WAGO 221-2505 is a 5-position mounting carrier with integrated strain relief, designed for use with WAGO 221 Series splicing connectors. It enables secure panel or surface mounting of multiple connectors while providing cable strain relief for up to two cables with diameters from 3.5 to 12 mm. Made from durable polyamide 66 (PA 66) with a UL94 V2 flammability rating, this carrier is suitable for a wide range of electrical installations.

Advantages

Integrated strain relief protects cable connections from tension and bending. Screw mounting with 3.2 mm holes and 90 mm spacing ensures easy and secure installation. Compatible with multiple WAGO 221 connector models (221-2411, 221-2412, 221-2413, 221-2414, 221-2415) for flexible wiring solutions.

Suitable for

• Panel mounting of WAGO 221 Series splicing connectors
• Surface mounting in junction boxes or control cabinets
• Applications requiring organized, strain-relieved cable connections

Key specifications

• Product Type: Mounting Carrier
• Number of Positions: 5
• Compatible Connector Series: WAGO 221
• Mounting Method: Screw Mounting
• Mounting Hole Diameter: 3.2 mm
• Mounting Hole Spacing: 90 mm
• Integrated Strain Relief: Yes
• Number of Strain Relief Entries: 2
• Cable Diameter Range (Strain Relief): 3.5 - 12 mm
• Material: Polyamide 66 (PA 66)
• Color: Gray
• Operating Temperature: -20 to +85 °C
• Flammability Rating (UL94): V2
• Application: Panel Mounting, Surface Mounting

Recommendations

For a complete wiring solution, pair this mounting carrier with WAGO 221 Series splicing connectors and appropriate cables. Ensure the mounting surface is clean and the screws are tightened to the recommended torque.
