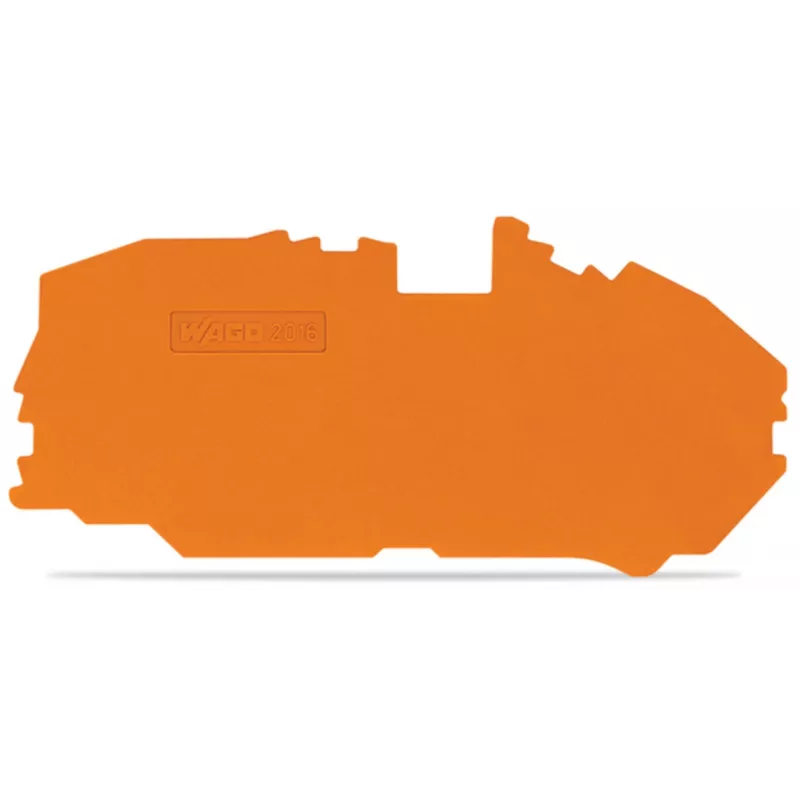

WAGO 2016-7692 Πλάκα τερματισμού, πορτοκαλί, 1 mm, 84,5 mm, 41,7 mm, 3,11 g

The WAGO 2016-7692 End Plate is a high-quality accessory designed for use with WAGO TOPJOB® S 2016 series terminal blocks. It provides insulation and protection for terminal block assemblies, ensuring safe and reliable electrical connections. Made from durable Polyamide 66 (PA 66) with a UL 94 V-0 flammability rating, this end plate offers excellent thermal and mechanical resistance. Its snap-on mounting allows for quick and easy installation without tools.

Advantages

• Provides reliable insulation and protection for terminal block assemblies
• Snap-on mounting for fast and tool-free installation
• Made from self-extinguishing Polyamide 66 (PA 66) with UL 94 V-0 rating
• Compatible with 2-conductor and 3-conductor terminal blocks
• RoHS and REACH compliant, ensuring environmental safety

Suitable for

• Industrial control cabinets
• Building automation systems
• Electrical distribution panels
• Any application requiring secure termination of conductors

Key specifications

• Product Type: End Plate
• Series Compatibility: WAGO TOPJOB® S 2016 Series
• Color: Orange
• Material: Polyamide 66 (PA 66)
• Flammability Rating: UL 94 V-0
• Mounting Type: Snap-on
• Terminal Block Compatibility: 2-conductor and 3-conductor terminal blocks
• Length: 84.5 mm
• Width (Thickness): 1 mm
• Height (from DIN-rail): 41.7 mm
• Weight: 3.11 g
• Operating Temperature: -35 to +105 °C
• RoHS Compliance: Yes
• REACH Compliance: Yes

Recommendations

For optimal performance and safety, always use WAGO end plates with compatible terminal blocks. Ensure proper installation by following the manufacturer's guidelines. This end plate is an essential component for maintaining organized and secure wiring in any electrical installation.
