Vivolink VLVW1X4 επεξεργαστής βιντεοτοίχου μαύρο 11 W

The Vivolink VLVW1X4 Black video wall processor provides one HDMI input and four HDMI outputs. The device accepts input resolutions up to 4Kx2K@60Hz 4:4:4 while its outputs are fixed to 1920x1080p@60Hz. It supports HDMI 2.0b, consumes 11 W of power and has compact dimensions (210 × 110 × 18 mm), making it suitable for multi-screen display installations.

Advantages

This video wall processor offers nine selectable video wall modes controlled from the front panel or via IR remote, allowing flexible layout configurations such as 2x2 tiling or 1x2 horizontal stretching. The outputs are standardized to Full HD for consistent display across four screens, and multiple units can be cascade-coupled to expand support up to 16 screens. The unit's small footprint and low power consumption simplify installation in confined spaces.

Suitable for

• Retail displays and digital signage
• Control rooms and monitoring stations
• Exhibition booths and presentation setups
• Corporate lobbies and information walls

Key specifications

• Model: Vivolink VLVW1X4
• Inputs: 1 × HDMI (up to 4Kx2K@60Hz 4:4:4)
• Outputs: 4 × HDMI (fixed 1920x1080p@60Hz)
• Video wall modes: 9 selectable modes (e.g., 2x2, 1x2)
• HDMI version: HDMI 2.0b
• Power consumption: 11 W
• Dimensions (W×D×H): 210 × 110 × 18 mm
• Weight: 0.45 kg
• Colour: Black
• MPN: VLVW1X4
• EAN: 5704174472650

How to use

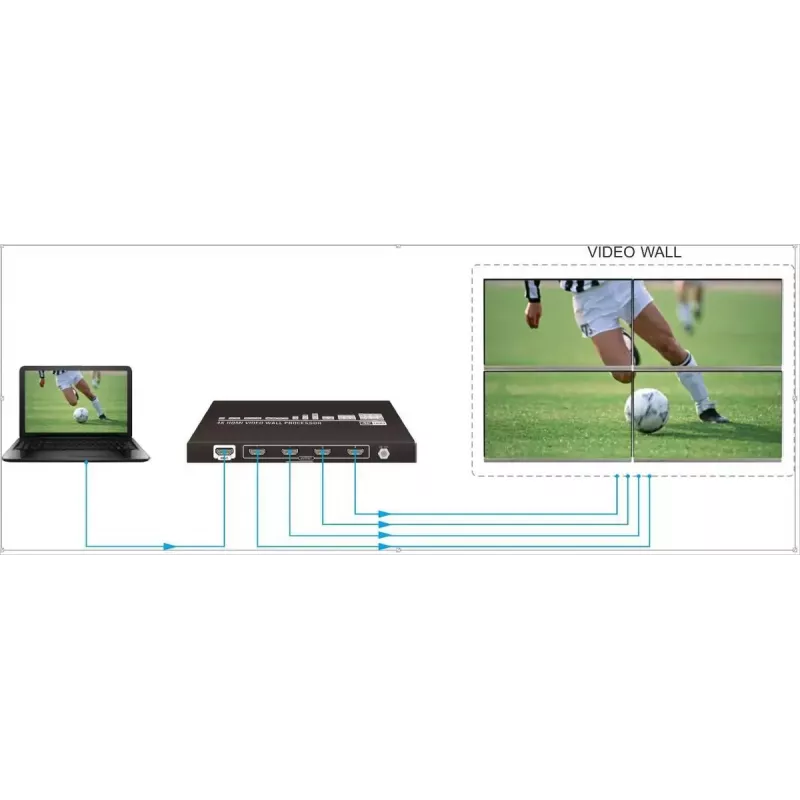

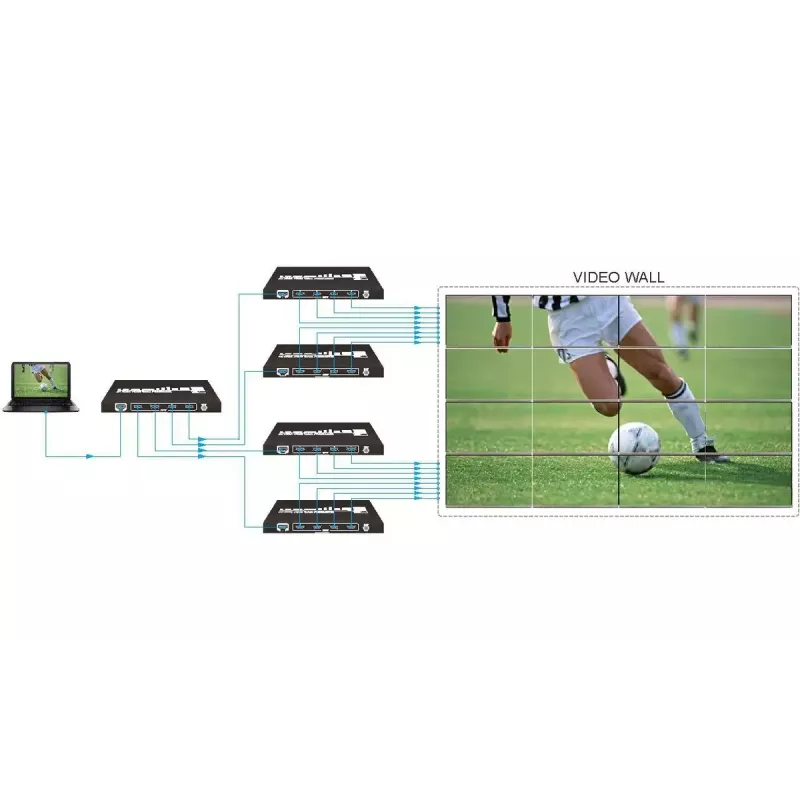

Connect a source device to the HDMI input and connect up to four displays to the HDMI outputs. Select the desired video wall mode using the front panel buttons or the included IR remote. The processor will output a 1920x1080p@60Hz signal to each connected display. To create larger video walls, cascade multiple VLVW1X4 units according to the manufacturer's cascade procedure so that the system supports up to 16 screens.

Recommendations

For optimal results, use displays with matching 1080p resolution and thin bezels, ensure HDMI cables meet the required bandwidth for the input resolution, and place the unit in a well-ventilated location. When cascading units, follow the manufacturer instructions for signal timing and synchronization to avoid image misalignment.
