Βιντεοθυροτηλέφωνο Fanvil i55A

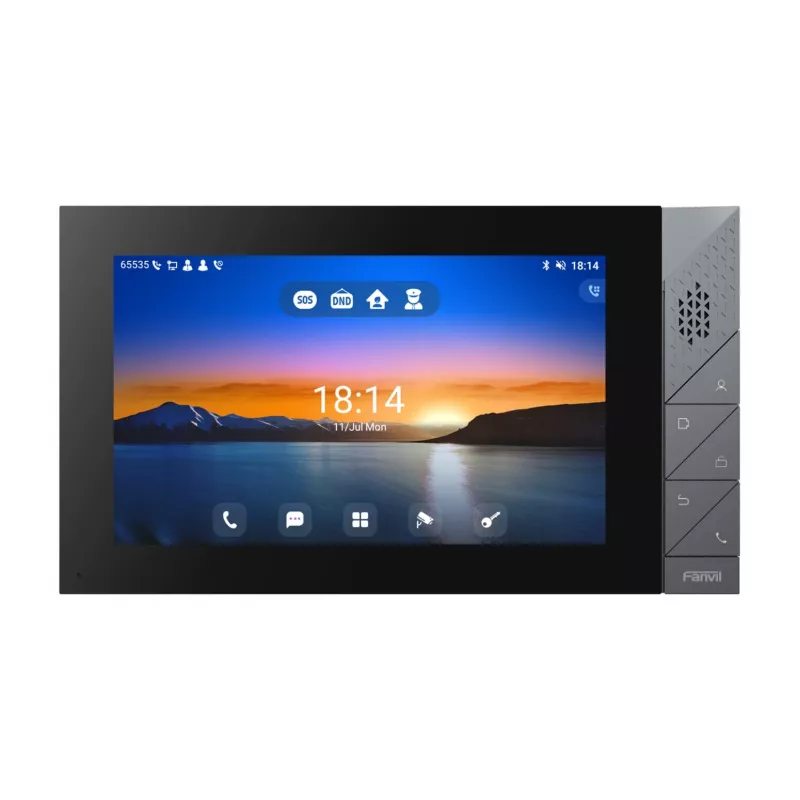

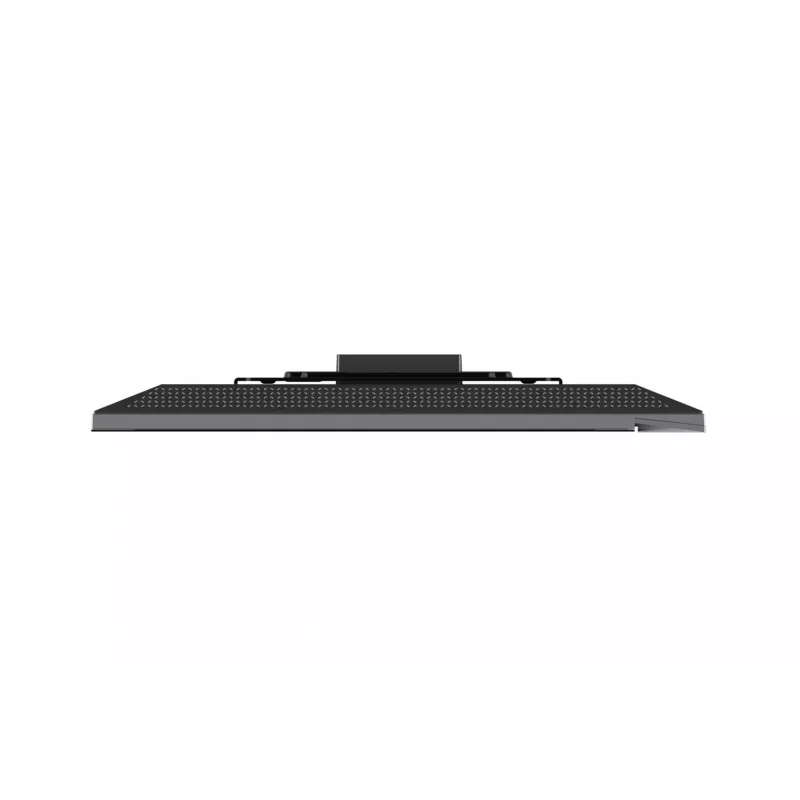

The Fanvil i55A indoor station is a video intercom system with a 7-inch color touch screen and an intuitive user interface. Running Android 9.0, it supports industry-specific customization and secondary development. The device offers remote door opening and real-time monitoring capabilities for security devices and is suitable for management of communities, villas and office buildings. The unit features a 7" LCD with 1024 x 600 resolution, a stainless steel construction, horizontal installation option, 10/100 Mbit/s Ethernet connectivity and operates from a 12V AC adapter. Its compact dimensions (217 mm × 124 mm × 21 mm) allow flexible installation in various indoor locations.

Advantages

The Fanvil i55A combines a responsive 7-inch touch display with the flexibility of an Android 9.0 platform, enabling application customization and secondary development. Built with stainless steel and supporting fast Ethernet, it provides reliable connectivity and durable construction for indoor intercom applications. Remote door release and real-time monitoring functions simplify access control and on-site supervision for residential and commercial installations.

Suitable for

• Residential communities and apartment buildings
• Private villas and gated homes
• Office buildings and corporate reception areas
• Indoor security and access-control panels

Key specifications

• Display: 7" color LCD, 1024 × 600 pixels
• Operating system: Android 9.0
• Construction: Stainless steel, horizontal installation supported
• Network: 10/100 Mbit/s Ethernet
• Power: 12V AC adapter
• Dimensions: 217 mm (W) × 124 mm (D) × 21 mm (H)
• Model: Fanvil i55A (MPN: I55A, EAN: 6937295603415)

How to use

Install the Fanvil i55A in a suitable indoor location, following horizontal placement guidance if required. Connect the unit to the local network via the 10/100 Mbit/s Ethernet port and supply power using the specified 12V AC adapter. Configure network and SIP/intercom settings through the Android-based interface, upload or install required applications for customization, and pair the station with door lock hardware and security devices to enable remote door opening and real-time monitoring.

Recommendations

For reliable operation, use a stable Ethernet connection and the recommended 12V AC adapter. When performing secondary development or installing custom applications, follow Fanvil’s developer guidelines and ensure network security settings are configured to protect access-control functions.
