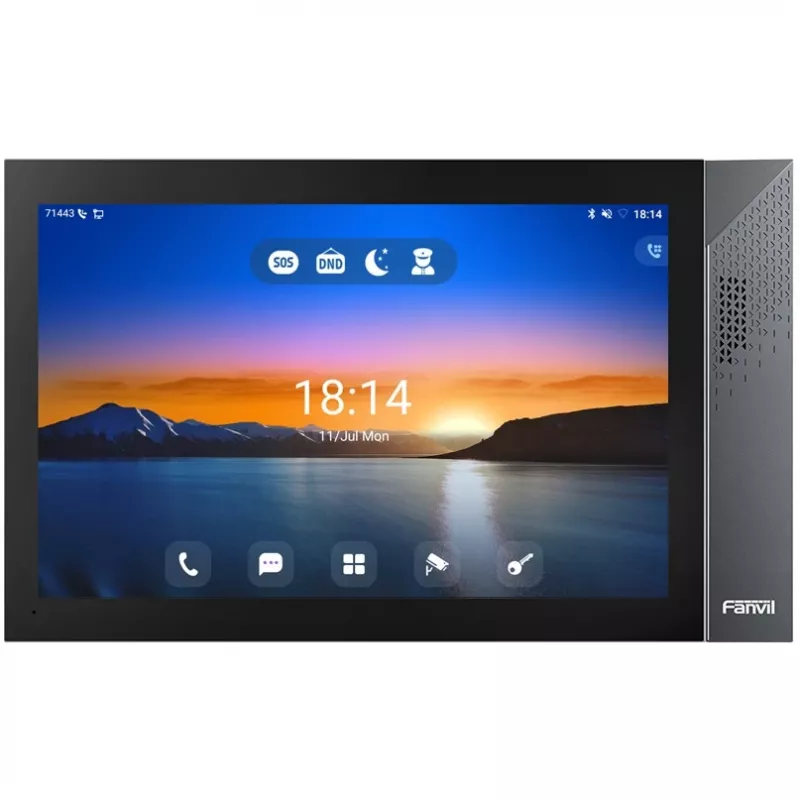

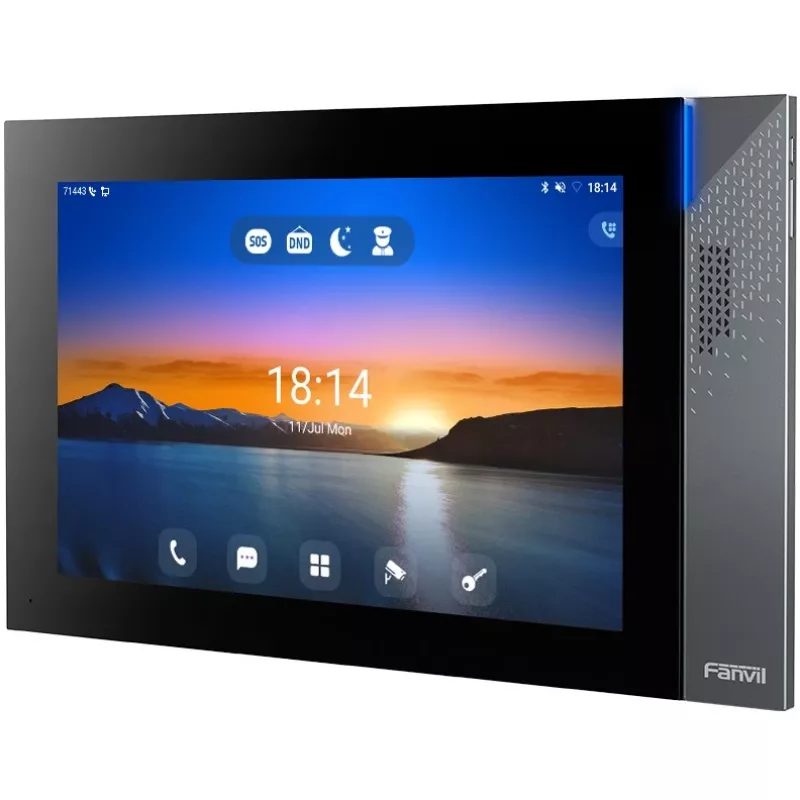

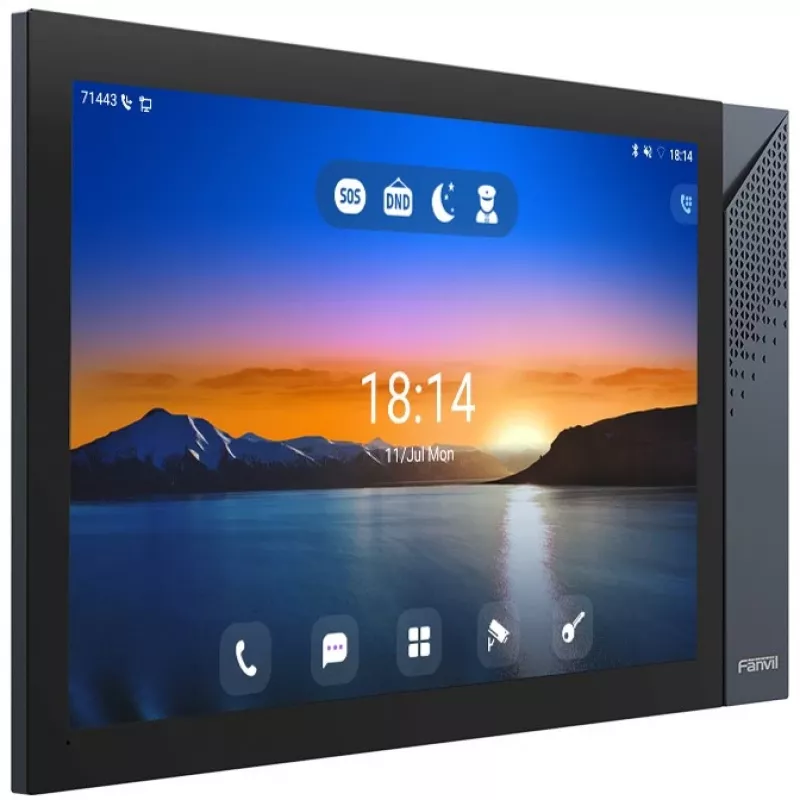

Σύστημα βίντεο ενδοεπικοινωνίας Fanvil i57A

The Fanvil i57A indoor station is a video intercom system with a 10.1-inch color touch screen and an intuitive user interface. Running Android 9.0 and featuring a 1280 × 600 LCD, the device supports secondary development and industry-specific customization. Its stainless steel and black housing, compact dimensions (295 × 181 × 24 mm) and Fast Ethernet connectivity make the i57A suitable for secure entry management in communities, villas and office buildings.

Advantages

The Fanvil i57A combines a large capacitive touch display with Android 9.0 to enable flexible application development and easy operation. It provides real-time monitoring and remote door opening functions for access control, supports horizontal installation, and uses a standard 12 V power supply. The device’s metal front and compact form factor offer durability and a modern appearance while Fast Ethernet ensures stable network communication.

Suitable for

• Apartment building and residential community entry management
• Villas and gated houses with remote door release
• Office building reception and visitor control
• Security monitoring points requiring a wall-mounted indoor station

Key specifications

• Display: 10.1-inch color touch screen, 1280 × 600 pixels
• Operating system: Android 9.0
• Network: Fast Ethernet
• Power supply: 12 V
• Dimensions: 295 mm × 181 mm × 24 mm
• Finish: stainless steel front, black housing
• Placement: horizontal

How to use

Mount the Fanvil i57A on a suitable indoor wall in horizontal orientation and connect it to a 12 V power source and the local network via Fast Ethernet. Configure the device through the Android-based interface, register it with your intercom or access control platform, and set user permissions for remote door opening and monitoring. Use the touch screen to view camera feeds, accept calls, and activate door release when required.

Recommendations

For reliable operation, install the unit in a dry, indoor location with stable network access. Keep firmware updated to ensure compatibility with third-party systems and enable necessary security settings for remote access. If integrating with an existing access control system, verify protocol and wiring compatibility before installation.
