Βάση οθόνης σήμανσης SMS Smart Media Solutions PD210001

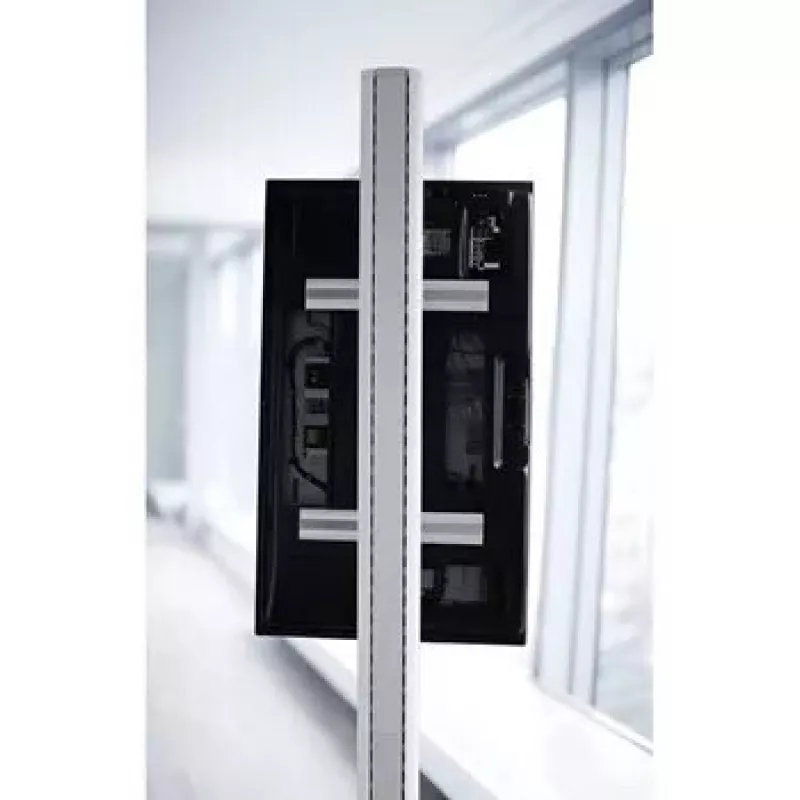

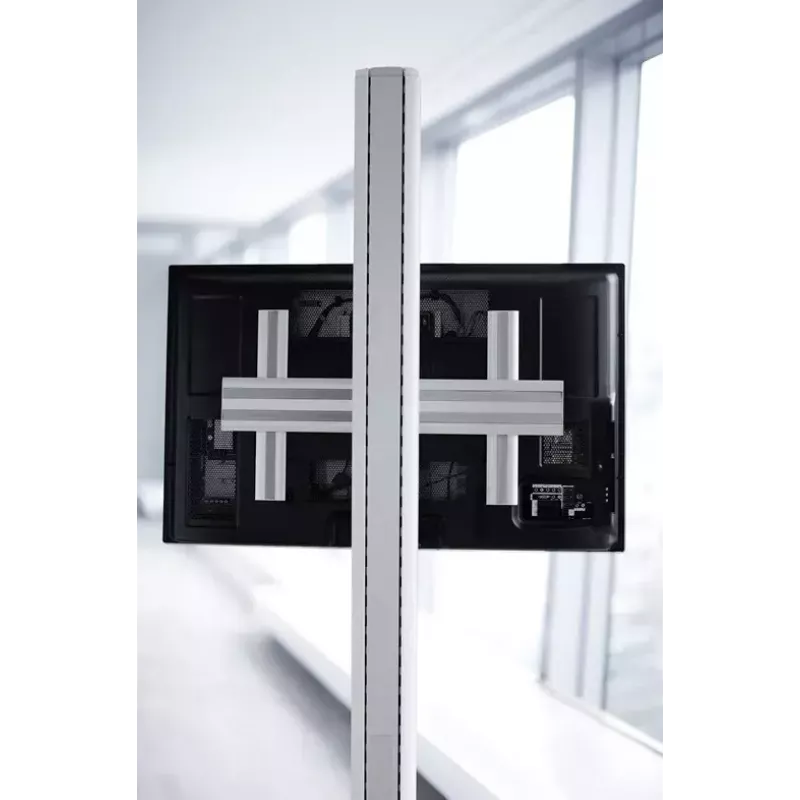

SMS X H Unislide is a slim aluminium universal slide supplied with ceiling/wall and floor brackets as part of the X-series. It supports VESA patterns from 200 x 200 mm up to 800 x 400 mm and carries displays up to the product's rated capacity. The rear has the same high-quality finish as the front and includes an integrated rubber strip that conceals all screws. The Unislide can be positioned at selected points along the column, and the screen may be mounted vertically or horizontally.

Advantages

The aluminium construction provides a lightweight but sturdy structure suitable for commercial and personal installations. Compatibility with a wide range of VESA standards (200 x 200 to 800 x 400 mm) ensures flexibility for different display sizes. Concealed fasteners behind an integrated rubber strip create a neat appearance from both front and back. The slide’s adjustability along the column allows precise positioning of the display.

Suitable for

• Digital signage displays in retail and hospitality
• Office and conference room screens
• Interactive kiosks and information points
• Home media walls with compatible VESA mounts

Key specifications

• Brand: SMS
• Model: X H Unislide (part of X-series)
• MPN: PD210001
• Maximum VESA: 200 x 200 mm to 800 x 400 mm
• Maximum weight capacity: 50 kg
• Number of displays supported: 1
• Product weight: 5 kg
• Colour: Silver

How to use

Mount the supplied ceiling/wall and floor brackets according to the installation location, ensuring the supporting surfaces are rated for the combined load. Attach the Unislide column to the brackets and position it at the desired height. Secure the display to the slide using the appropriate VESA screws for the display’s mounting pattern. Check that the integrated rubber strip covers fasteners and that the display is level and tight before use.

Recommendations

Verify the display’s VESA pattern and weight do not exceed the mount’s specified limits (200 x 200 to 800 x 400 mm; 50 kg). Use appropriate fasteners for the mounting surface and, if installing in public areas, confirm that the installation meets local safety regulations.
