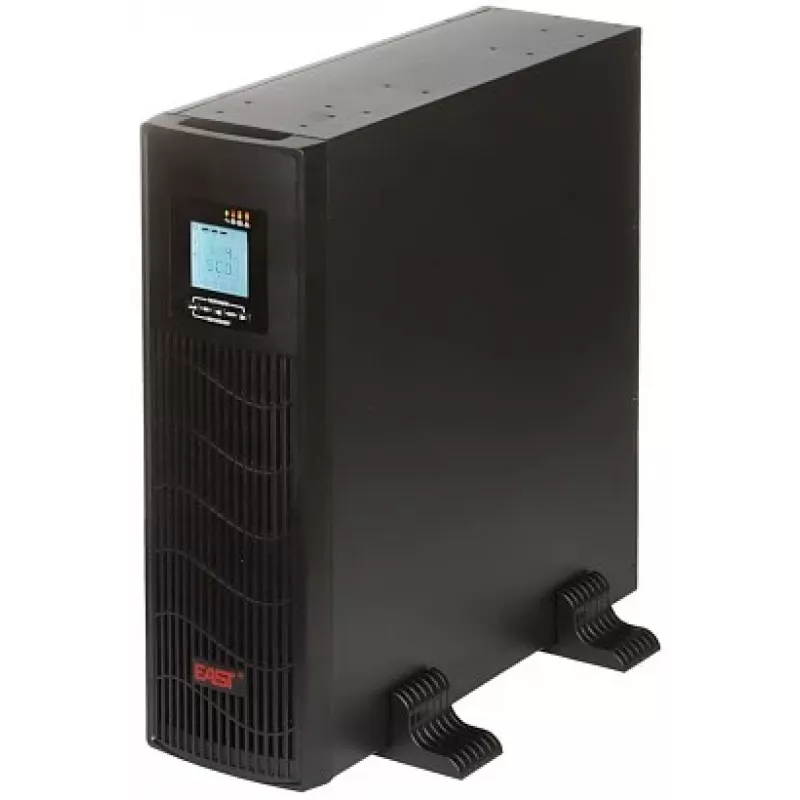

USV AT-UPS3000S-RT-RACK 3000 VA Online Double Conversion Rack/Tower 2U

The AT-UPS3000S-RT-RACK is a high-performance 3000 VA / 2700 W online double conversion UPS designed for critical IT infrastructure. Its rack/tower convertible 2U form factor offers flexible installation in server racks or as a standalone tower. With pure sine wave output, zero transfer time, and advanced voltage regulation, it ensures clean, uninterrupted power for servers, networking equipment, and other sensitive electronics.

Advantages

Reliable double-conversion topology isolates connected equipment from all power disturbances. The intelligent battery management extends battery life and provides up to 5 minutes backup at full load. The included USB and RS-232 ports enable remote monitoring and automatic shutdown. The unit also features an intelligent slot for optional SNMP card integration.

Suitable for

• Servers and data centers
• Network switches and routers
• Telecommunications equipment
• Medical devices and industrial controls

Key specifications

• Apparent Power: 3000 VA
• Real Power: 2700 W
• Topology: Online Double Conversion
• Form Factor: Rack/Tower Convertible (2U)
• Input Voltage: 230 VAC nominal (range 110-300 VAC)
• Output Voltage: 208/220/230/240 VAC selectable
• Output Waveform: Pure Sine Wave
• Outlets: 8x IEC C13 + 1x IEC C19
• Battery Type: Sealed Lead Acid, Maintenance-Free
• Typical Backup Time (Full Load): ~5 minutes
• Recharge Time: 4-6 hours to 90%
• Communication: USB, RS-232, Intelligent Slot
• Noise Level: <50 dB

Recommendations

For optimal performance, install in a well-ventilated area and connect only critical loads. Use the included software for graceful shutdown during extended outages. Consider adding an optional SNMP card for network management.
