Διαχειριζόμενο Switch TP-Link Omada ES210GMP 10 Θύρες Gigabit Ethernet PoE

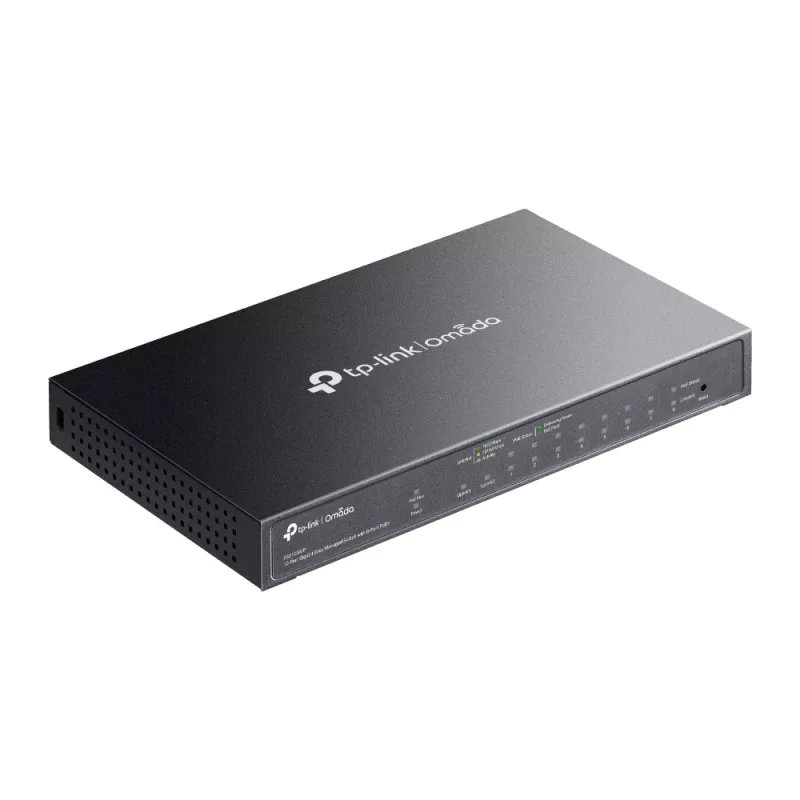

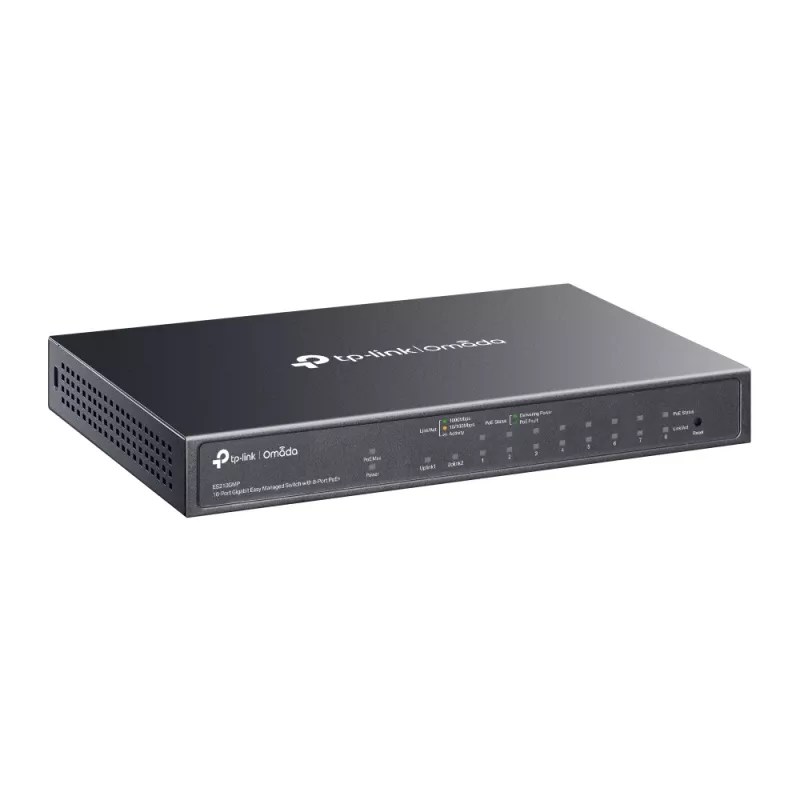

The TP-Link Omada ES210GMP 10 Ports Gigabit Ethernet PoE is a managed network switch designed for small to medium-sized network deployments. It offers ten Gigabit Ethernet (10/100/1000) RJ-45 ports with Power over Ethernet (PoE) capabilities and supports standard networking protocols including IEEE 802.1Q, 802.1ab, 802.1p, 802.3af and 802.3at for PoE. The switch provides a switching capacity of 20 Gbit/s and maintains a MAC address table capable of storing 8000 entries. The unit is supplied in a black enclosure and includes wall-mounting options for flexible installation.

Advantages

The managed design of the TP-Link Omada ES210GMP enables configuration and monitoring of network traffic using standard management interfaces, allowing administrators to apply VLANs and quality of service priorities in accordance with IEEE 802.1Q and 802.1p standards. Gigabit Ethernet connectivity on all ten ports ensures full-speed connections for connected devices, while PoE support (IEEE 802.3af/at) supplies power to compatible devices over the Ethernet cable, reducing the need for separate power supplies. Compact form factor and wall-mount capability simplify deployment in offices or network closets.

Suitable for

• Small and medium office networks requiring managed switching and PoE delivery
• Deployments with IP cameras, VoIP phones or wireless access points that accept PoE
• Network closets or locations where wall-mounted equipment saves space

Key specifications

• Switch type: Managed

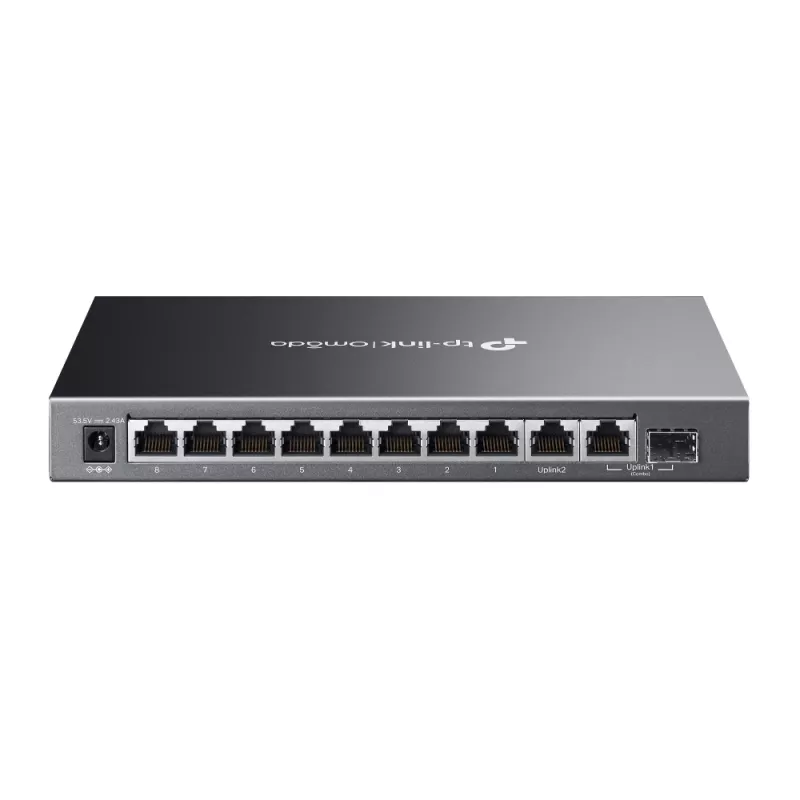

• Ports: 10 x Gigabit Ethernet (10/100/1000) RJ-45
• PoE standards: IEEE 802.3af, IEEE 802.3at
• Networking standards: IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.3x
• Switching capacity: 20 Gbit/s
• MAC address table: 8000 entries
• Product colour: Black

How to use

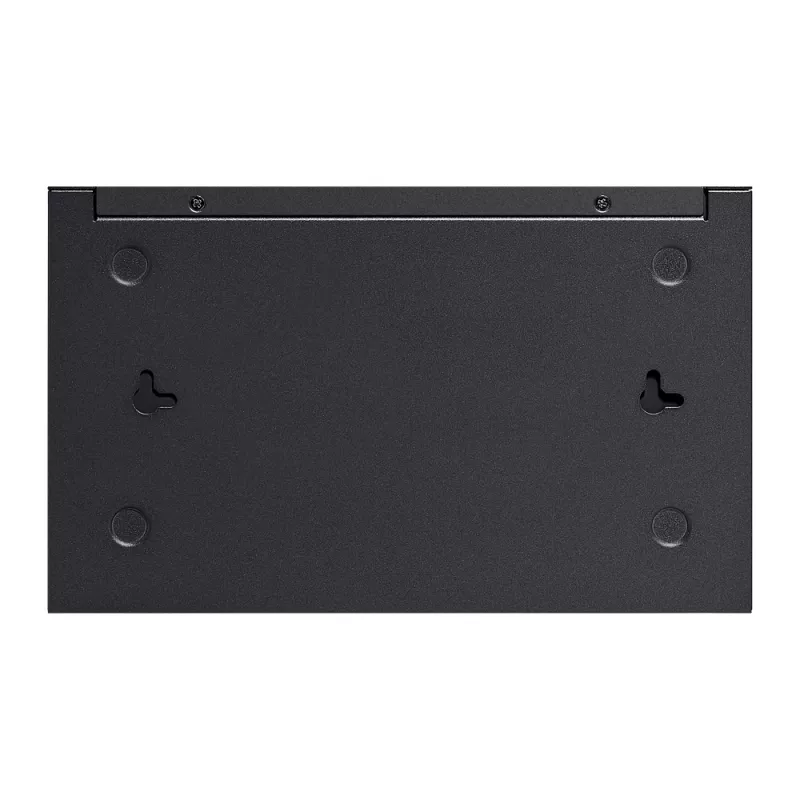

Install the TP-Link Omada ES210GMP in a suitable location using available wall-mount points or place it on a shelf in the network rack. Connect the switch to your network backbone using one of the Gigabit Ethernet ports. Attach end devices such as IP cameras, VoIP phones or access points to the remaining ports; PoE-capable ports will deliver power automatically to IEEE 802.3af/at compliant devices. Access the switch management interface through the supported management method (refer to TP-Link Omada documentation) to configure VLANs, QoS and any other available settings to match your network requirements.

Recommendations

For stable operation, deploy the switch in a ventilated area within the manufacturer’s recommended temperature and humidity ranges and use quality Ethernet cables. When powering multiple PoE devices, verify overall PoE budget and power allocation per port in the product documentation to avoid overloading the switch’s PoE capability. Use VLAN and QoS settings to separate traffic types and maintain predictable performance for voice and surveillance applications.
