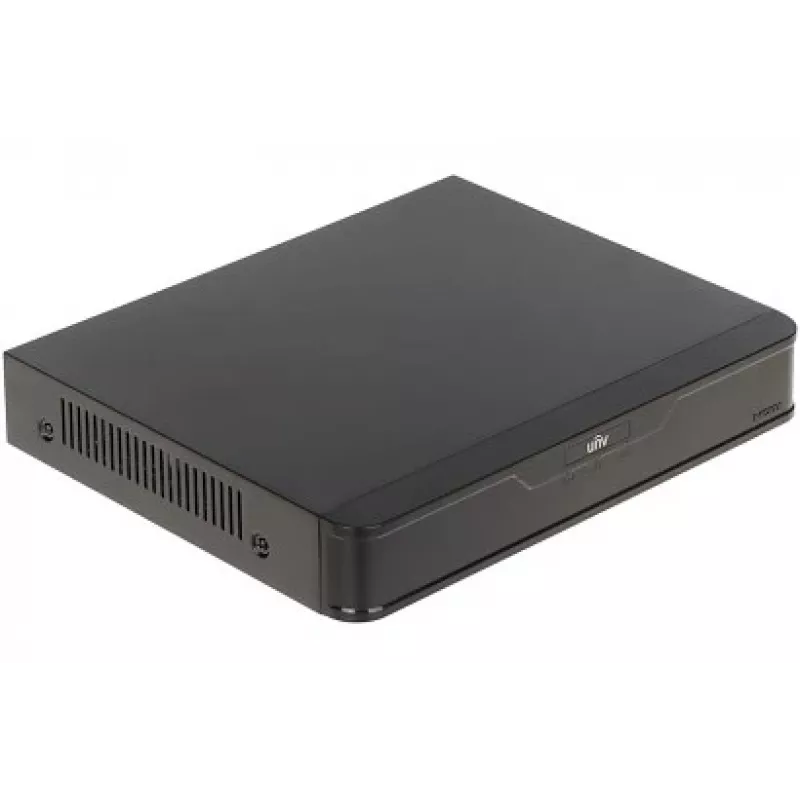

UNIVIEW NVR501-16B 16-Kanal 4K Network Video Recorder

The UNIVIEW NVR501-16B is a high-performance 16-channel network video recorder designed for professional surveillance systems. Supporting up to 12MP (4K) recording resolution, it delivers crisp and detailed video footage. With dual SATA interfaces supporting up to 20TB total storage, this NVR is ideal for medium to large-scale security installations.

Advantages

Supports Ultra 265, H.265, and H.264 compression for efficient bandwidth and storage usage. Incoming bandwidth of 160 Mbps ensures smooth recording from multiple high-resolution cameras. Smart functions like intrusion detection, cross line detection, and face detection enhance security monitoring. ONVIF Profile S/G/T compatibility allows integration with a wide range of IP cameras.

Suitable for

• Retail stores and shopping malls
• Office buildings and corporate campuses
• Warehouses and logistics centers
• Educational institutions
• Residential complexes

Key specifications

• 16-channel video input
• Max recording resolution: 12MP (4K)
• Incoming bandwidth: 160 Mbps, Outgoing: 64 Mbps
• Video compression: Ultra 265, H.265, H.264
• Audio compression: G.711A, G.711U
• 2 x SATA HDD interfaces, up to 10TB each (20TB total)
• 1x RJ45 10/100/1000Mbps Ethernet
• 1x HDMI (up to 4K), 1x VGA (up to 1080P)
• 1x USB 2.0 (front), 1x USB 3.0 (rear)
• Alarm I/O: 4 in / 1 out
• Audio I/O: 1 in / 1 out (RCA)
• Power supply: 12V DC, consumption ≤10W (without HDD)
• Operating temperature: -10°C to +55°C (14°F to 131°F)
• ONVIF Profile S/G/T support
• Mobile app: EZView

Recommendations

For optimal performance, pair with UNIVIEW IP cameras and use enterprise-grade SATA HDDs. Ensure proper ventilation and stable power supply.
