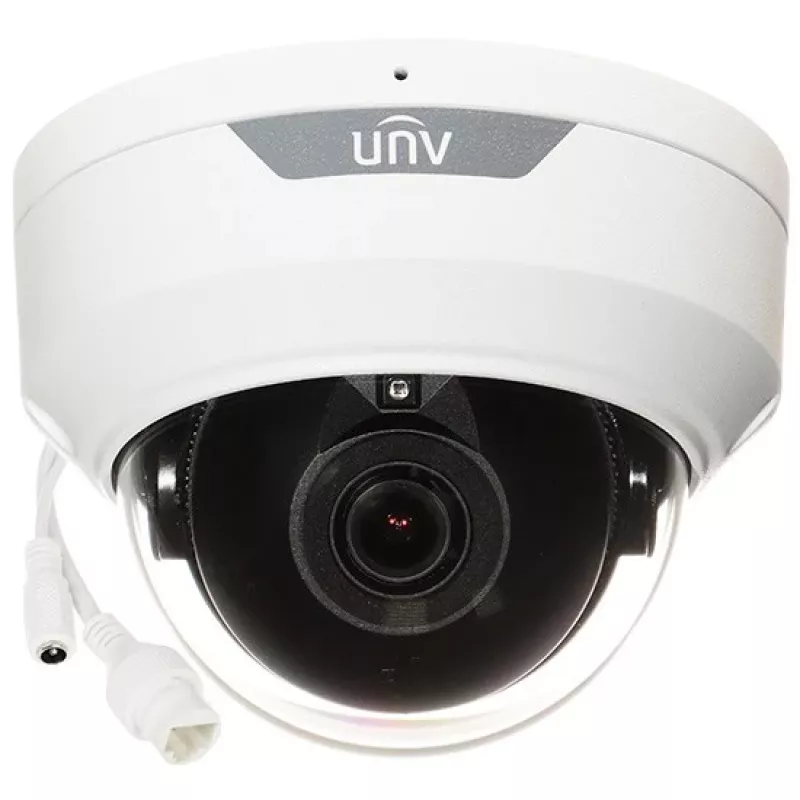

UNIVIEW IPC324LE-ADF40K-H Ανθεκτική IP κάμερα 4Mpx 4mm

The UNIVIEW IPC324LE-ADF40K-H is a high-performance vandal-proof IP camera designed for reliable 24/7 surveillance in demanding environments. Featuring a 4-megapixel resolution and a 4mm fixed lens, this camera delivers crisp and detailed images. With AcuSense smart detection, it accurately distinguishes between humans and vehicles, reducing false alarms. The camera is equipped with a 1/3" Progressive Scan CMOS sensor, 120 dB WDR, and 3D DNR for clear footage even in challenging lighting conditions. Its IP67 and IK10 ratings ensure protection against dust, water, and vandalism, making it ideal for outdoor and indoor use.

Advantages

• AcuSense technology: Human and vehicle target classification minimizes false alerts.
• High-quality imaging: 4MP resolution at 2688×1520, 25/30 fps.
• Robust design: IP67 weatherproof and IK10 vandal-resistant housing.
• Flexible installation: Supports 12 VDC and PoE (802.3af) for easy power options.
• Extended IR range: Up to 30 m (98 ft) for night vision.
• Local storage: Built-in MicroSD slot supports up to 256 GB.

Suitable for

• Retail stores and shopping centers
• Office buildings and corporate campuses
• Parking lots and garages
• Warehouses and industrial facilities
• Residential complexes and gated communities

Key specifications

• Image Sensor: 1/3" Progressive Scan CMOS
• Max Resolution: 2688 × 1520 (4 MP)
• Lens: 4 mm fixed, F1.6
• Field of View: H: 84°, V: 45°, D: 100°
• Video Compression: H.265+/H.265/H.264+/H.264
• Minimum Illumination: Color 0.005 Lux, B/W 0 Lux with IR
• IR Range: Up to 30 m
• WDR: 120 dB
• Noise Reduction: 3D DNR
• Smart Features: AcuSense (human/vehicle), Motion Detection 2.0, Line Crossing, Intrusion Detection
• Storage: MicroSD slot up to 256 GB
• Network: 1 RJ45 10/100 M Ethernet
• Power: 12 VDC ±25%, PoE (802.3af, Class 3)
• Ingress Protection: IP67
• Vandal Resistance: IK10
• Audio: Built-in microphone

Recommendations

For optimal performance, use a PoE switch or injector compliant with IEEE 802.3af. Ensure the MicroSD card is high endurance for continuous recording. Mount the camera at a height of 2.5–3 m for best coverage.
