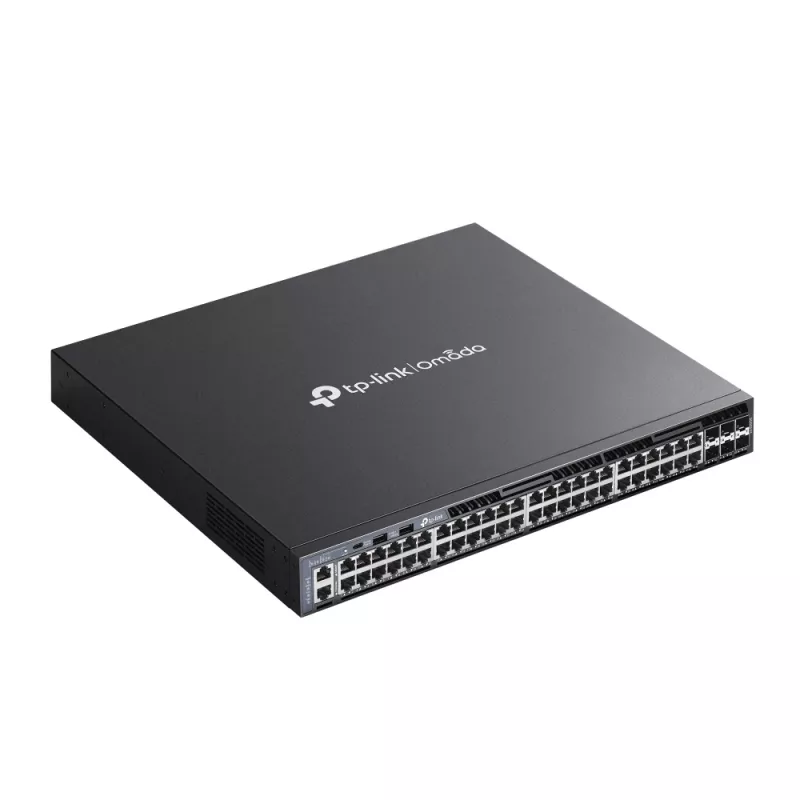

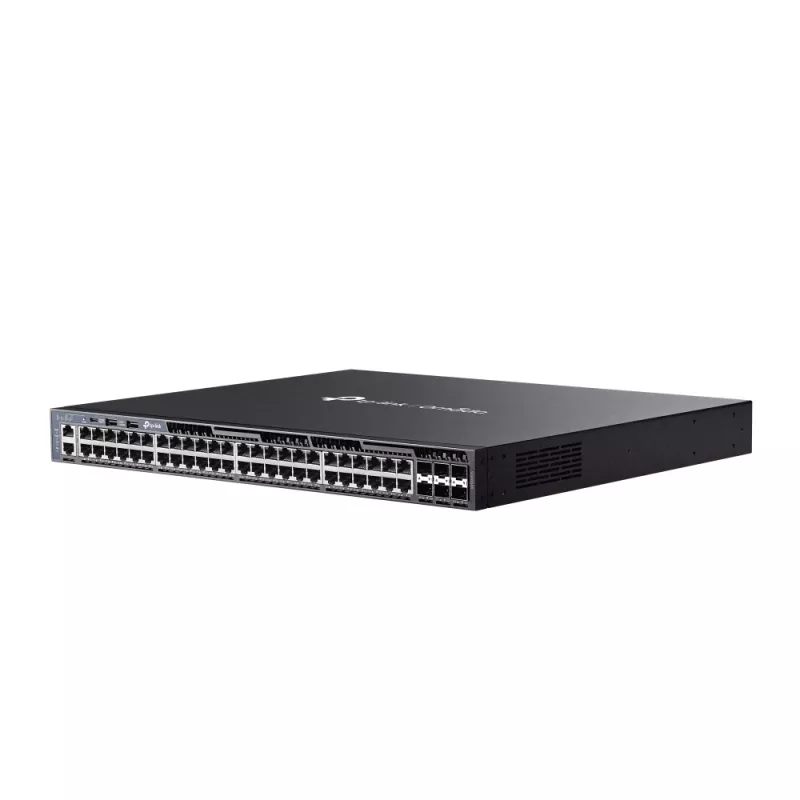

TP-Link Omada 48-Port Gigabit Stackable L3 Managed Switch με 6 10G-Slots

Omada SG6654X is a managed Layer 3 switch that provides L3 routing, high-speed wired connectivity and resilient power options for convergence-layer deployments. The unit includes 48 Gigabit RJ45 ports, six 10 Gbps SFP+ slots and supports physical stacking. With integrated security and comprehensive management features, the SG6654X is designed for reliable performance in SMB, enterprise and ISP networks.

Advantages

The switch delivers up to 216 Gbps switching capacity per device and supports physical stacking of up to four units for a combined switching capacity of up to 864 Gbps. It offers extensive Layer 3 functionality including Static Routing, RIP, OSPF, ECMP, VRRP, DHCP Server and DHCP Relay, plus PIM-DM for multicast routing. Built-in redundant fixed power supplies, VRRP and ERPS improve availability, while access control lists (IPv4/IPv6), Dynamic ARP Inspection, IEEE 802.1X, MAB, Port Security and SSH provide enhanced security. Management is available via Omada SDN cloud, a web GUI or CLI with SSL/SSH protection, and SNMP/RMON support allows monitoring and alerting.

Suitable for

• Enterprise access or aggregation layer
• Small and medium business core or distribution
• ISP network edge requiring routing and high throughput
• Environments needing physical stacking and redundant power

Key specifications

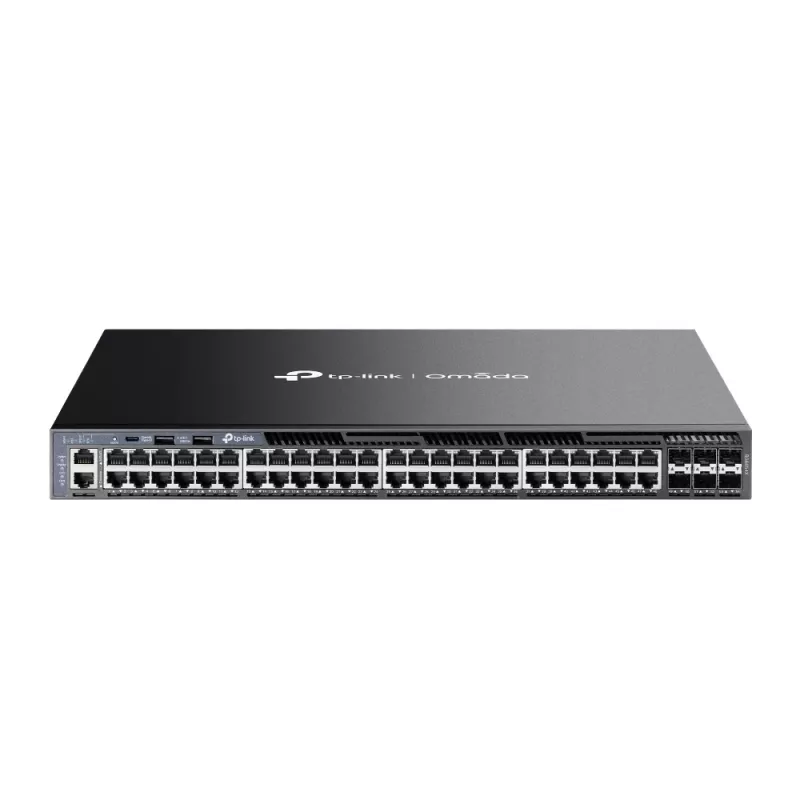

• Ports: 48 × Gigabit RJ45 (10/100/1000) and 6 × 10 Gbps SFP+
• Switching capacity: 216 Gbps per unit
• Stacking: physical stacking up to 4 units (up to 864 Gbps)
• Layer 3 features: Static Routing, RIP, OSPF, ECMP, VRRP, DHCP Server, DHCP Relay, PIM-DM
• MAC address table: 32,000 entries

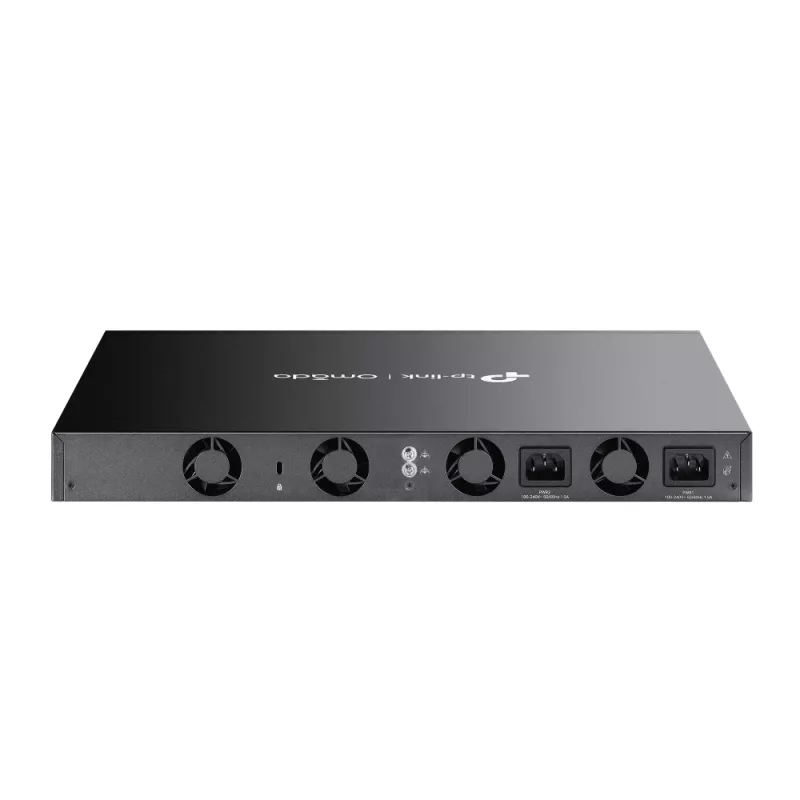

• Redundancy: internal fixed redundant power supplies, VRRP, ERPS
• Security: ACL (IPv4 & IPv6), Dynamic ARP Inspection, IEEE 802.1X, MAB, Port Security, SSH
• Management: Omada SDN cloud, web GUI, CLI, SSL/SSH, SNMP (v1/v2c/v3), RMON
• Colour: Black

How to use

Install the SG6654X in a standard 19" rack and connect uplink or aggregation links to the 10 Gbps SFP+ slots and access devices to the 48 Gigabit RJ45 ports. Configure Layer 3 routing protocols and VLANs via the Omada SDN controller, the web-based GUI or the CLI depending on your management preference. For monitoring and alerts, enable SNMP and RMON. Use the stacking ports and procedures to join up to four units when greater aggregated throughput or redundancy is required.

Recommendations

For mission-critical deployments enable VRRP and ERPS, keep a documented IP and VLAN plan before configuring routing protocols, and use the redundant power supply capability to minimise downtime. When centrally managing multiple devices, use the Omada SDN controller with ZTP for streamlined provisioning.
