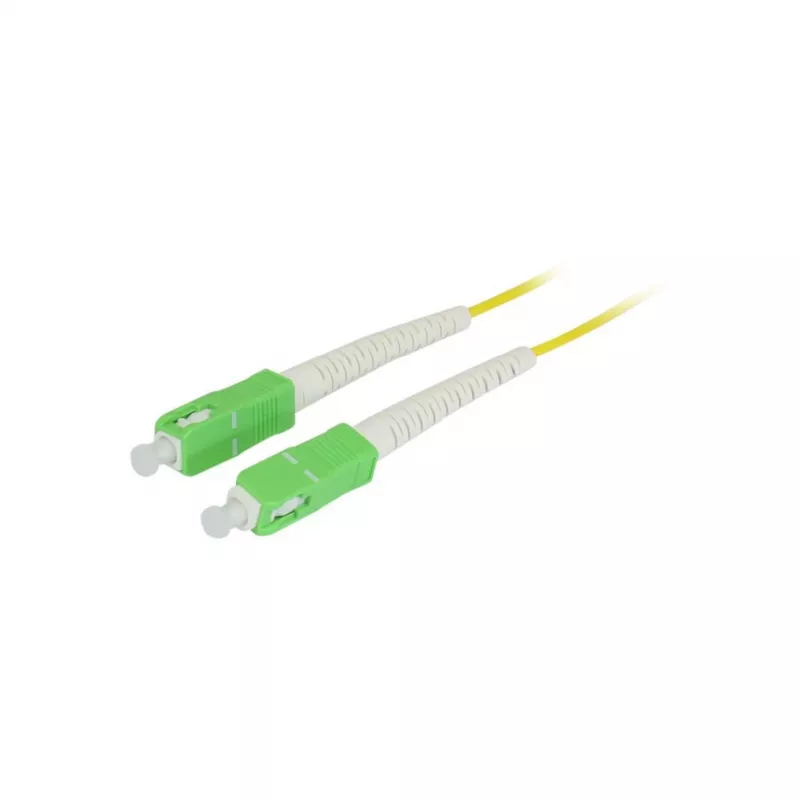

SYNERGY21 Καλώδιο Patch Οπτικών Ινών 10m SC/APC σε SC/APC OS2 G.657A2 2mm Simplex

The SYNERGY21 S215717 is a high-quality single-mode fiber optic patch cable designed for reliable and high-performance data transmission. With a length of 10 meters and SC/APC connectors on both ends, this simplex cable is ideal for FTTH, telecommunications, and data center applications. The OS2 fiber meets ITU-T G.657.A2 standards, offering excellent bend insensitivity and low insertion loss.

Advantages

This fiber optic patch cable provides superior signal integrity with low insertion loss (≤0.3 dB) and high return loss (≥60 dB for SC/APC). The G.657.A2 compliant fiber allows for tight bends without performance degradation, making installation in confined spaces easy. The 2 mm outer diameter and flexible jacket ensure easy handling and routing.

Suitable for

• Fiber-to-the-Home (FTTH) installations
• Telecommunications networks
• Data center interconnects
• Local Area Networks (LAN) requiring single-mode fiber
• Indoor cabling applications

Key specifications

• Cable Type: Fiber Optic Patch Cable
• Fiber Type: Single-Mode (OS2)
• Fiber Standard: ITU-T G.657.A2
• Core/Cladding: 9/125 µm
• Number of Fibers: 1 (Simplex)
• Connector A: SC/APC
• Connector B: SC/APC
• Length: 10 m
• Outer Diameter: 2 mm
• Jacket Color: Yellow
• Insertion Loss: ≤ 0.3 dB
• Return Loss: ≥ 60 dB
• Application: Indoor

Recommendations

For optimal performance, ensure connectors are clean before mating. This cable is compatible with standard SC/APC ports. Store in a clean, dry environment.
