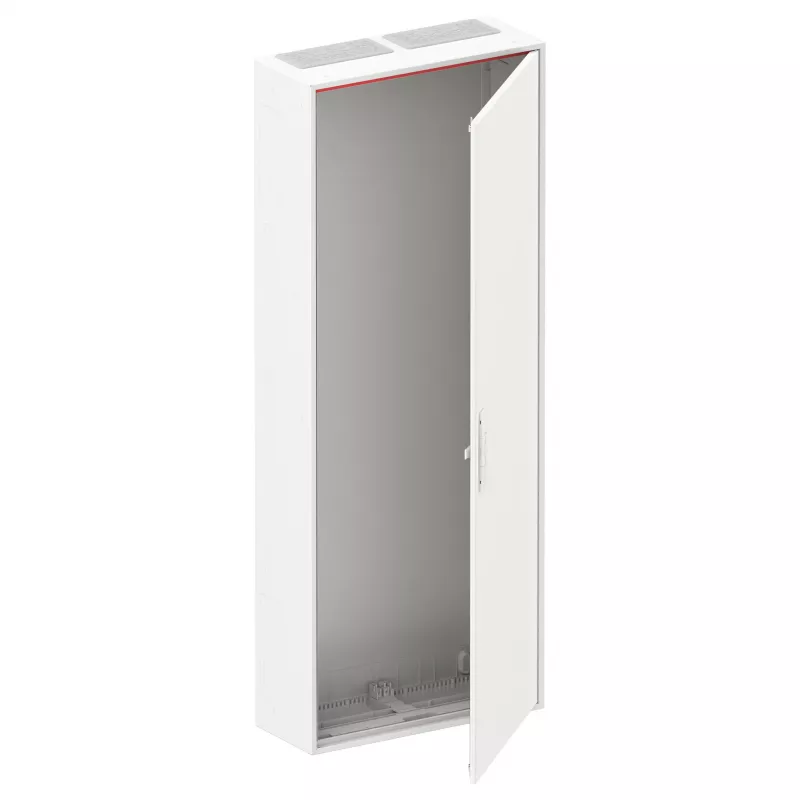

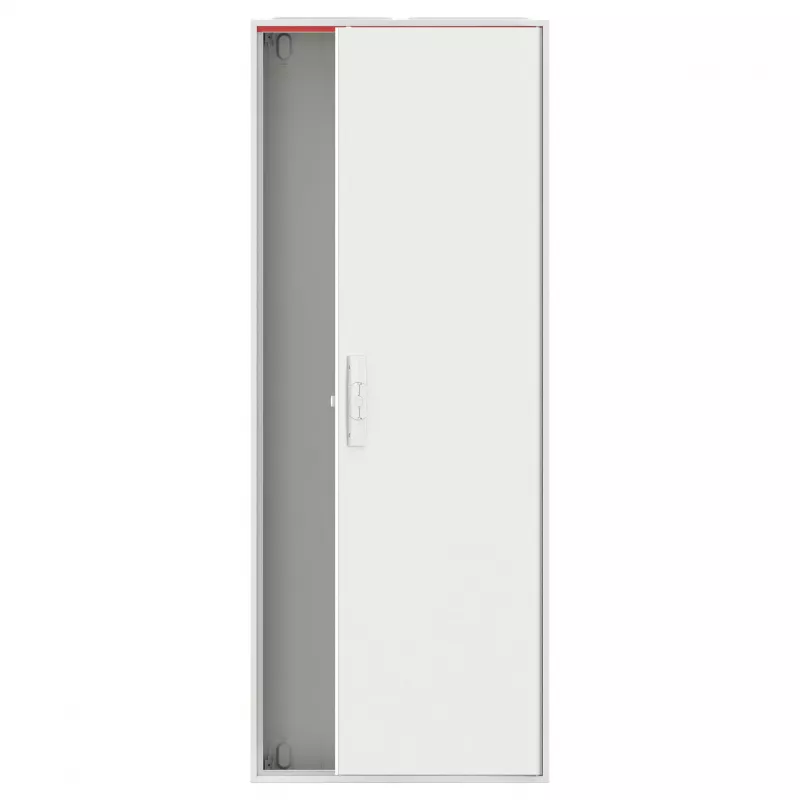

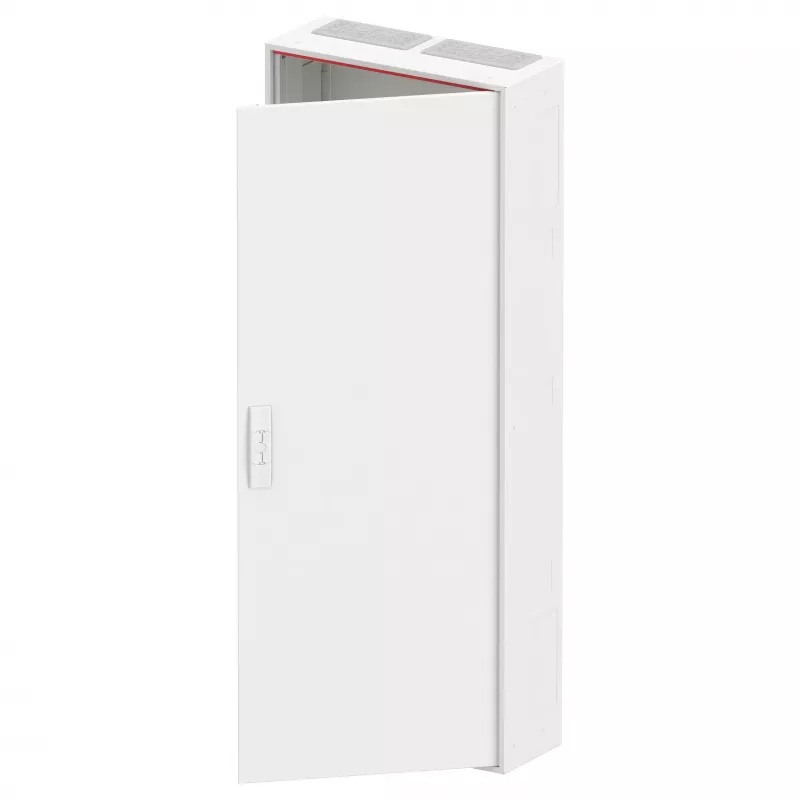

Striebel & John A29 Επιτοίχια θήκη κενή 2FB 9 σειρών 2CPX052041R9999

The Striebel & John A29 wall cabinet is a high-quality, empty enclosure designed for surface-mounted installation. With 2 fields and 9 rows per field, it offers a total of 216 module units (TE), providing ample space for electrical distribution components. The cabinet is made of sheet steel with a pure white (RAL 9010) finish and features an opaque steel sheet door with a double-bit lock. It is rated IP44 for protection against dust and splashing water, and has an impact resistance of IK07. Ideal for use in residential and commercial buildings, this cabinet meets DIN VDE 0603-1 and DIN 43870-1 standards.

Advantages

Robust sheet steel construction with a durable powder-coated finish in pure white (RAL 9010). The IP44 protection rating ensures reliable operation in damp environments. The double-bit lock provides security, while the 120° door opening angle allows easy access. The cabinet is glow wire tested to 650°C for enhanced safety.

Suitable for

• Surface-mounted electrical distribution in residential and commercial buildings
• Installation of modular DIN rail components such as circuit breakers, RCDs, and contactors
• Use in indoor or sheltered outdoor areas requiring IP44 protection

Key specifications

• Enclosure Type: Wall Cabinet
• Mounting Type: Surface-mounted (AP)
• Number of Fields: 2
• Number of Rows per Field: 9
• Total Module Units (TE): 216
• Protection Class: IP44
• Material: Sheet Steel
• Door Type: Steel Sheet Door (Opaque)
• Colour: Pure White (RAL 9010)
• Impact Resistance: IK07
• Rated Insulation Voltage: 400 V AC
• Rated Current: Up to 125 A
• Glow Wire Test: 650 °C
• Door Opening Angle: 120°
• Lock Type: Double-bit lock
• Standards: DIN VDE 0603-1, DIN 43870-1

Recommendations

This empty wall cabinet is perfect for customizing your electrical distribution setup. Combine with appropriate DIN rail components and accessories for a complete solution.
