StarTech.com C10043 Πομπός και Δέκτης Επέκτασης USB

StarTech.com C10043 USB extender transmitter and receiver

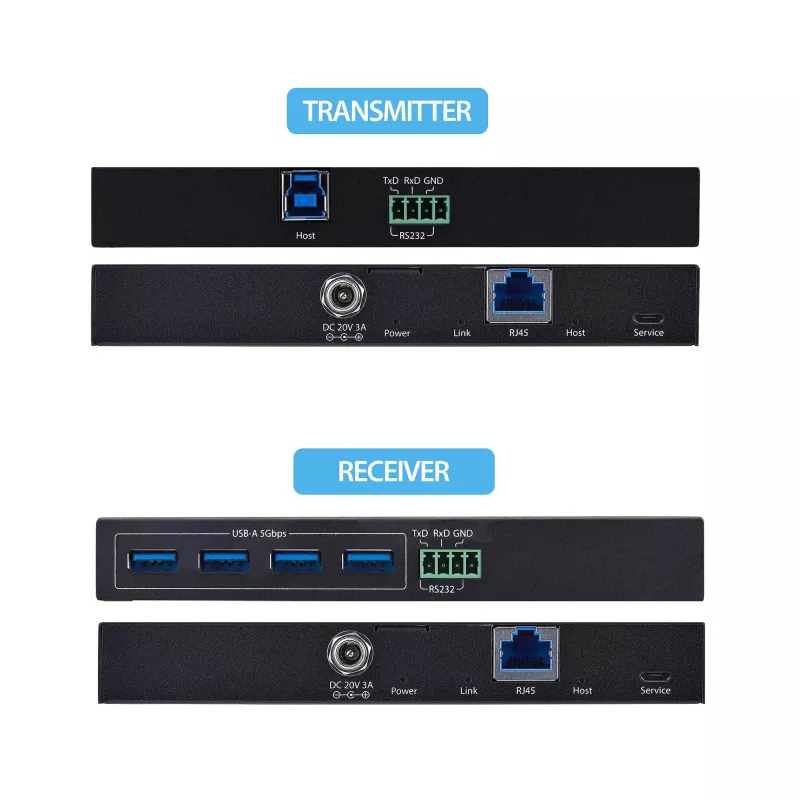

This USB 3.0-over-Ethernet extender kit connects up to four USB peripherals to a host computer over distances of up to 100 m, using a single, directly run Cat6a, Cat7 or Cat8 RJ45 cable. Overcome USB distance limits: this compact extender kit is ideal for extending the typical reach of USB cables well beyond standard lengths. Use it to connect webcams, data acquisition devices, storage solutions and input devices in locations such as classrooms, kiosks, industrial workstations or control rooms. The system supports USB 3.2 Gen 1 at 5 Gbit/s, delivering high throughput with reliable operation over long distances. Flexible power over the cable (PoC): power either the transmitter or the receiver unit using the supplied power adapter, as both devices share power over the Ethernet cable. This simplifies installation and reduces the need for separate power sources at both ends, which is especially handy in cramped or hard-to-reach environments. Designed for professional integration: it offers transfer speeds of up to 5 Gbit/s and supports RS-232 pass-through for serial control in automation solutions. Rugged metal housings provide added protection and durability. Driverless and OS-independent, this point-to-point USB extender needs no software and is compatible with Windows, macOS and Linux.

Specifications

• Depth: 150 mm
• Height: 20.5 mm
• Master (outer) case height: 380 mm
• Master (outer) case length: 453 mm
• Master (outer) case width: 535 mm
• Operating temperature (T-T): 0 - 45 °C
• Package depth: 170 mm
• Package height: 80 mm
• Package weight: 1.2 kg
• Package width: 250 mm
• Product colour: Black
• Products per master (outer) case: 20 pc(s)
• Storage temperature (T-T): -20 - 70 °C
• Weight: 350 g
• Width: 100 mm
• Compliance certificates: Trade Agreements Act (TAA)
• Operating relative humidity (H-H): 10 - 90%
• Type: Console transmitter & receiver
• Housing material: Steel
• Data transfer rate: 5000 Mbit/s

Genuine Startech product — MPN: C10043-USB-EXTENDER · EAN: 065030924245.
