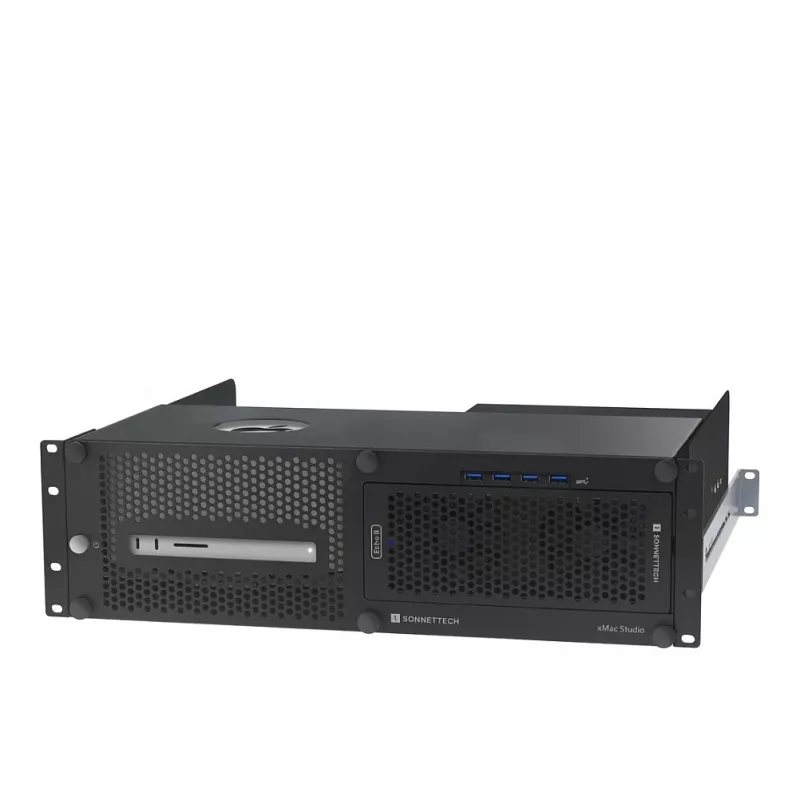

Sonnet xMac Studio / Echo II DV Module Thunderbolt 5 (μαύρο, 3U)

The Sonnet xMac Studio / Echo II DV Module Thunderbolt 5 is a professional-grade rackmount enclosure designed to expand the capabilities of your Apple Mac Studio. This 3U chassis integrates seamlessly with the Echo II DV Module (sold separately) to provide three PCIe 4.0 slots for adding high-performance cards such as GPUs, audio interfaces, or storage controllers. With Thunderbolt 4 connectivity, it delivers up to 40Gbps data transfer speeds and includes a 500W internal power supply. The enclosure features a robust steel construction, temperature-controlled fans, and front-panel USB-A ports for easy access. Ideal for creative professionals, this solution transforms your Mac Studio into a powerful, rack-mounted workstation.

Advantages

Expand your Mac Studio with three PCIe 4.0 slots for GPUs, audio cards, or storage. Thunderbolt 4 ensures fast data transfer and daisy-chaining. The 500W power supply supports demanding cards. Rackmount design saves desk space and integrates into professional environments.

Suitable for

• Video editors needing GPU acceleration
• Audio engineers requiring additional audio interfaces
• Data scientists using high-performance storage
• IT professionals deploying Mac Studios in server racks

Key specifications

• Enclosure Type: Rackmount Enclosure
• Rack Units: 3U
• Host Compatibility: Apple Mac Studio (M1, M2, M3 Max & Ultra)
• Module Compatibility: Sonnet Echo II DV Module (required, not included)
• Thunderbolt Interface: Thunderbolt 4
• Thunderbolt Ports: 2x Thunderbolt 4 (1x Host, 1x Device/Daisy Chain)
• PCIe Slots (via Echo II DV Module): 3x PCIe 4.0 (1x x16, 2x x8 mechanical/electrical)
• PCIe Card Support: Full-height, full-length, double-width
• Power Supply: 500W internal with 75W auxiliary power connector
• Drive Bays: 2x 2.5-inch SSD/HDD (internal, optional mounting kit)
• Cooling: Temperature-controlled, variable-speed fans
• Front Panel: 2x USB-A 3.2 Gen 2 (10Gbps), Mac Studio power button
• Rear Panel: Extends all Mac Studio rear ports (Thunderbolt, USB-A, HDMI, 10Gb Ethernet, Audio)
• Data Transfer Rate: Up to 40Gbps (Thunderbolt 4)
• OS Compatibility: macOS
• Material: Heavy-duty steel
• Color: Black

Recommendations

For optimal performance, pair this enclosure with the Sonnet Echo II DV Module and your Mac Studio. Ensure your PCIe cards are compatible with the available slots and power requirements. The optional 2.5-inch drive mounting kit is recommended for additional internal storage.
