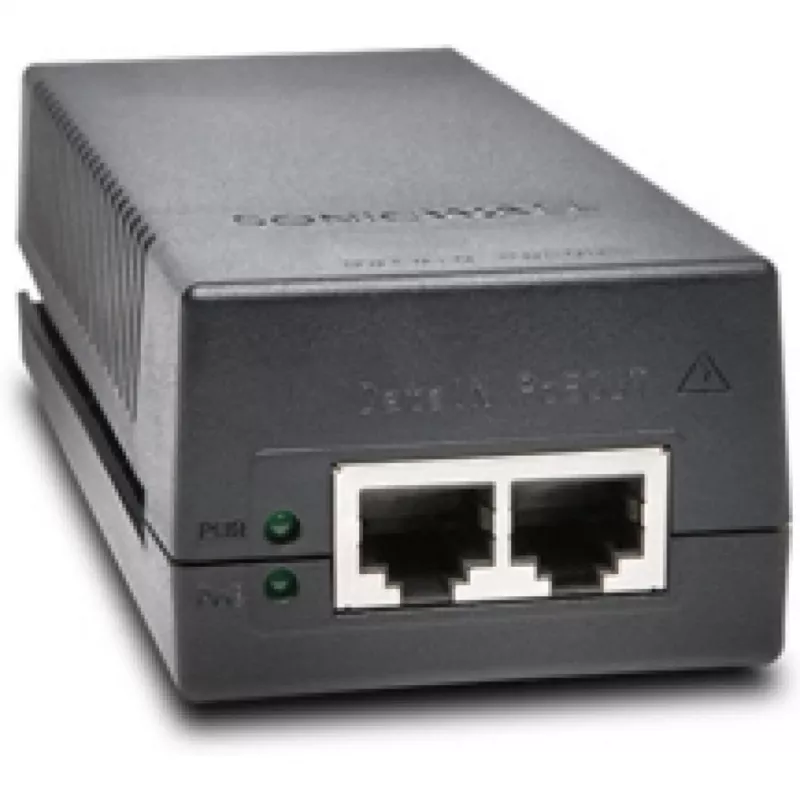

SonicWALL SonicWave Power Injector Global Multi-Gigabit PoE++

The SonicWALL SonicWave Power Injector is a high-performance Power over Ethernet (PoE) injector designed to power SonicWall SonicWave wireless access points. It supports the IEEE 802.3bt (PoE++) standard, delivering up to 60W of power, and features multi-gigabit data transfer rates up to 5 Gbps. This global version includes multiple regional power cords for worldwide use.

Advantages

This power injector ensures reliable and efficient power delivery to compatible SonicWave access points, eliminating the need for separate power supplies. Its multi-gigabit support (100 Mbps, 1 Gbps, 2.5 Gbps, 5 Gbps) allows for high-speed data transmission, making it ideal for demanding network environments. The compact desktop and wall-mountable design offers flexible installation options.

Suitable for

• Powering SonicWall SonicWave 200, 400, and 600 series wireless access points
• Enterprise and SMB networks requiring PoE++ power
• Deployments needing multi-gigabit connectivity

Key specifications

• PoE Standard: IEEE 802.3bt (Type 3 / PoE++)
• Max Power Output: 60 W
• Data Transfer Rate: 100 Mbps, 1 Gbps, 2.5 Gbps, 5 Gbps
• Input Voltage: 100-240 V AC
• Output Voltage: 54 V DC
• Input Frequency: 50/60 Hz
• Data Ports: 1 x RJ-45 (Data In)
• PoE Ports: 1 x RJ-45 (Data & Power Out)
• LED Indicators: Power, PoE Status
• Mounting Type: Desktop, Wall-mountable
• Operating Temperature: 0°C to 40°C (32°F to 104°F)
• Operating Humidity: 10% to 90% (non-condensing)
• Compatibility: SonicWall SonicWave 200, 400, 600 series
• Protection: Overload, Over-voltage, Short-circuit
• Power Plug Type: Global (multiple regional cords)
• Certifications: FCC, CE, RoHS

Recommendations

For optimal performance, use this power injector with SonicWall SonicWave access points. Ensure proper ventilation and avoid exceeding the maximum power output. The global power cord set allows deployment in various regions.
