Shining 3D FabCure 2 Μονάδα σκλήρυνσης (C5107)

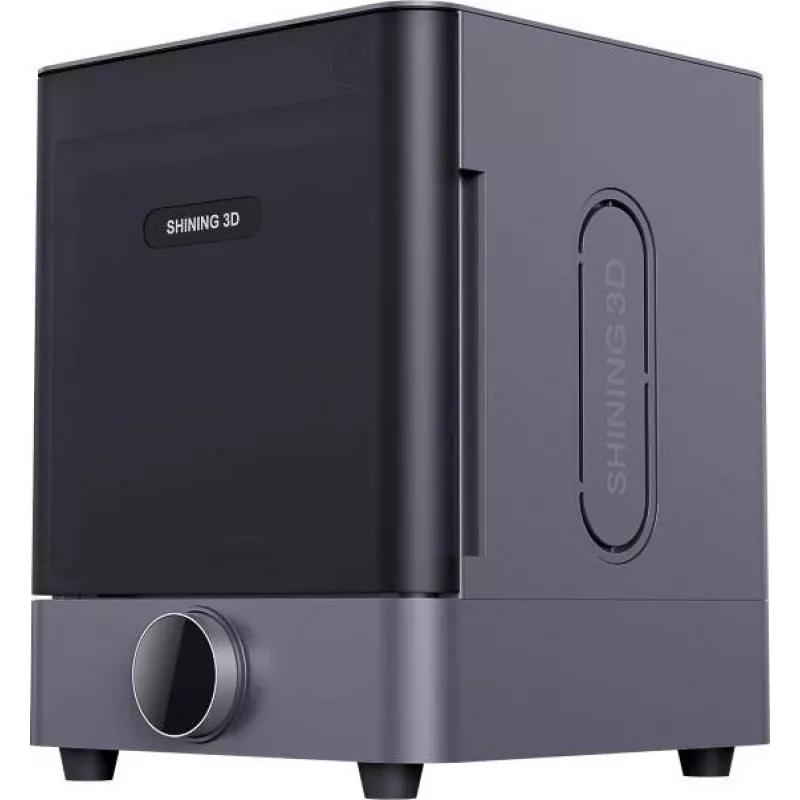

The Shining 3D FabCure 2 is a professional-grade UV curing unit designed for post-processing 3D printed resin models. It features dual-band UV LEDs (385nm & 405nm) and a 360° rotating platform for uniform curing. With a built-in heating function up to 60°C and a 4.3-inch color touchscreen, it offers precise control and faster curing times. Ideal for dental, jewelry, and industrial applications.

Advantages

Uniform curing from all angles thanks to multi-directional UV LEDs and automatic rotation. Dual wavelength compatibility ensures broad resin support. Heating accelerates curing and improves mechanical properties. Intuitive touchscreen interface with pre-set and customizable modes. Safety features include door sensor and over-temperature protection.

Suitable for

• Post-curing of 3D printed resin parts
• Dental models and surgical guides
• Jewelry patterns and castable resins
• Engineering prototypes and functional parts

Key specifications

• Curing Technology: UV Light
• Light Source: Multi-directional UV LED array
• UV Wavelengths: 385nm & 405nm (Dual-band)
• Curing Chamber Dimensions (D x H): 140 mm x 140 mm
• Max Part Dimensions (D x H): 140 mm x 140 mm
• Power Input: 100-240V AC, 50/60Hz
• Rated Power: 150 W
• Control Interface: 4.3-inch Color Touchscreen
• Heating Function: Yes, up to 60°C
• Curing Platform: Automatic 360° Rotating
• Resin Compatibility: Most 385nm & 405nm UV resins
• Safety Features: Door sensor, Over-temperature protection
• Connectivity: USB (for firmware updates)
• Curing Modes: Pre-set and Customizable
• Housing Material: Metal and ABS Plastic

Recommendations

For optimal results, use with Shining 3D resins or any standard 385/405nm UV resin. Ensure the chamber is clean and parts are fully cured before handling.
