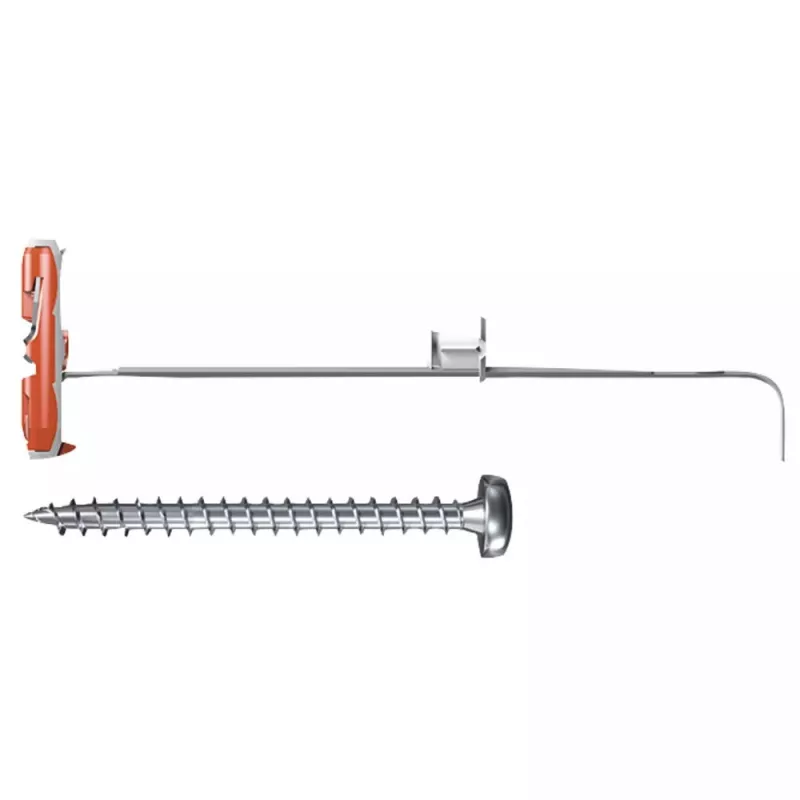

Σετ βιδών με άγκιστρο και ούπα Fischer DUOTEC 10 S PH

The Fischer DUOTEC 10 S PH screw hook and wall plug kit is an installation-friendly solution designed for high tensile and transverse loads in panel building materials and concrete. The nylon toggle anchor works with two components to secure fixtures in narrow and insulated cavities while requiring a small drill hole diameter of 10 mm and a minimum drill depth of 65 mm. The kit contains 25 pieces and includes a panhead screw that is matched to the toggle plug for dependable holding strength. In solid materials the DUOTEC also functions like a conventional expansion plug.

Advantages

The nylon gravity toggle folds automatically behind the panel, providing strength without cutting or weakening gypsum plasterboard. Its short toggle element and small drill diameter allow installation in narrow cavities and insulated panels. The flexible stainless steel screw seat accepts wood and chipboard screws as well as metric hooks and threaded rods with lock nuts, increasing application versatility. The panhead screw supplied is optimally matched to the DUOTEC toggle to ensure reliable hold.

Suitable for

• Fixing hooks and light to medium loads in gypsum plasterboard and hollow panels
• Mounting in insulated cavities and narrow panel spaces
• Applications in concrete and solid masonry where it behaves as an expansion anchor
• Use with wood/chipboard screws, metric hooks or threaded rods with lock nuts

Key specifications

• Brand: FISCHER
• Model: DUOTEC 10 S PH
• Contents: 25 pieces
• Drill hole diameter: 10 mm
• Minimum drill hole depth: 65 mm
• Length: 50 mm
• Suitable base materials: gypsum plasterboard, hollow panels, concrete, solid masonry
• MPN: 539025
• EAN: 4048962267426

How to use

Drill a 10 mm hole to at least 65 mm depth. Insert the DUOTEC toggle plug into the hole; the plug can be pre-installed without a screw and will not fall into the cavity. Push the supplied panhead screw through the fixture and screw it into the toggle until the nylon toggle folds and clamps behind the panel. Tighten until the fixture is secure but avoid over-torquing. In solid materials, if the drill hits a solid substrate, the plug will expand and behave like an expansion anchor.

Recommendations

Use the DUOTEC 10 S PH for secure mounting of hooks and fixtures in hollow panels and insulated cavities; select suitable screw types (wood/chipboard screws, metric hooks or threaded rods) to match the intended load and check substrate condition before installation.
