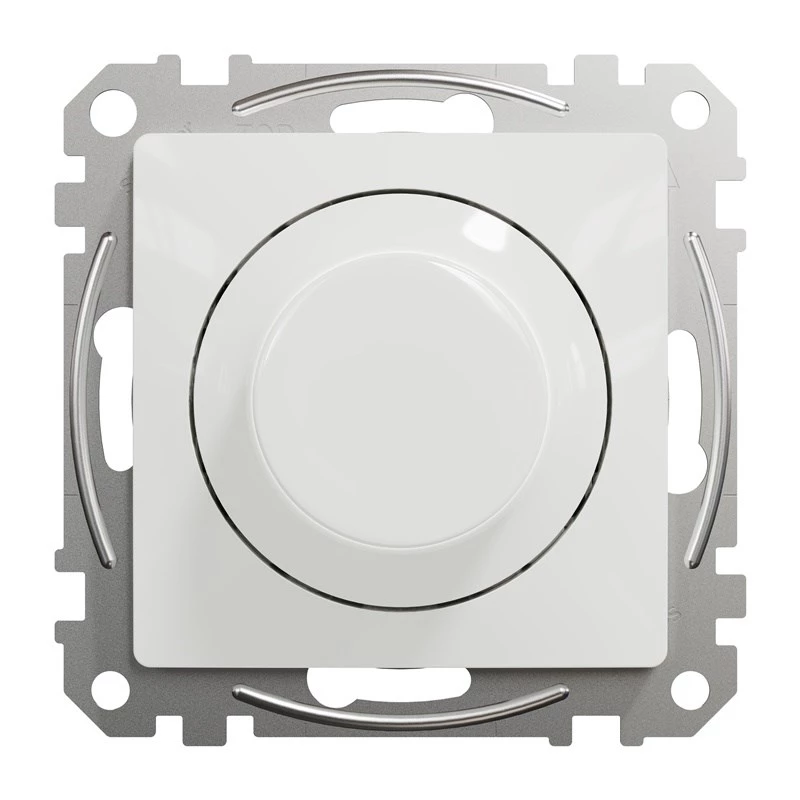

Schneider Electric Odace Styl Universal Dimmer SDD111502 Λευκό

The Schneider Electric Odace Styl Universal Dimmer SDD111502 in White is a high-quality flush-mount rotary dimmer designed for precise control of lighting loads. Suitable for LED, CFL, halogen, and incandescent lamps, it supports both leading edge and trailing edge dimming technologies. With a sleek white finish (RAL 9003) and robust thermoplastic ABS-UV stabilised material, this dimmer combines functionality with modern design.

Advantages

This universal dimmer offers versatile load compatibility, allowing you to control a wide range of light sources from a single device. Its rotary push-button control provides intuitive operation, while built-in protection features (overload, short-circuit, over-temperature) ensure safe and reliable performance. The 2-wire connection simplifies installation in existing flush-mount setups.

Suitable for

• Residential and commercial lighting control
• LED, CFL, halogen, and incandescent lamps
• Flush-mount installations with 2-wire wiring
• Applications requiring leading or trailing edge dimming

Key specifications

• Product Type: Universal Dimmer
• Dimming Technology: Leading edge / Trailing edge (Phase cut)
• Load Compatibility: LED, CFL, Halogen, Incandescent
• LED Load Range: 5-150 VA
• Halogen/Incandescent Load Range: 5-300 W
• Supply Voltage: 230 V AC
• Frequency: 50 Hz
• Control Method: Rotary push-button
• Mounting Type: Flush mount
• Wiring Type: 2-wire connection
• Colour: White (RAL 9003)
• Material: Thermoplastic ABS-UV stabilised
• IP Rating: IP20
• IK Rating: IK02
• Operating Temperature: 0-35 °C
• Protection Features: Overload, Short-circuit, Over-temperature
• Standards: EN 60669-2-1
• Series: Odace Styl

Recommendations

For optimal performance with LED loads, ensure compatibility with your specific LED driver. Use with a bypass if required for low-wattage LEDs (5-50W).
