SCHELINGER Επιτοίχιος Πίνακας Διανομής IP40 12N+12PE 12 Modules 1 Σειρά

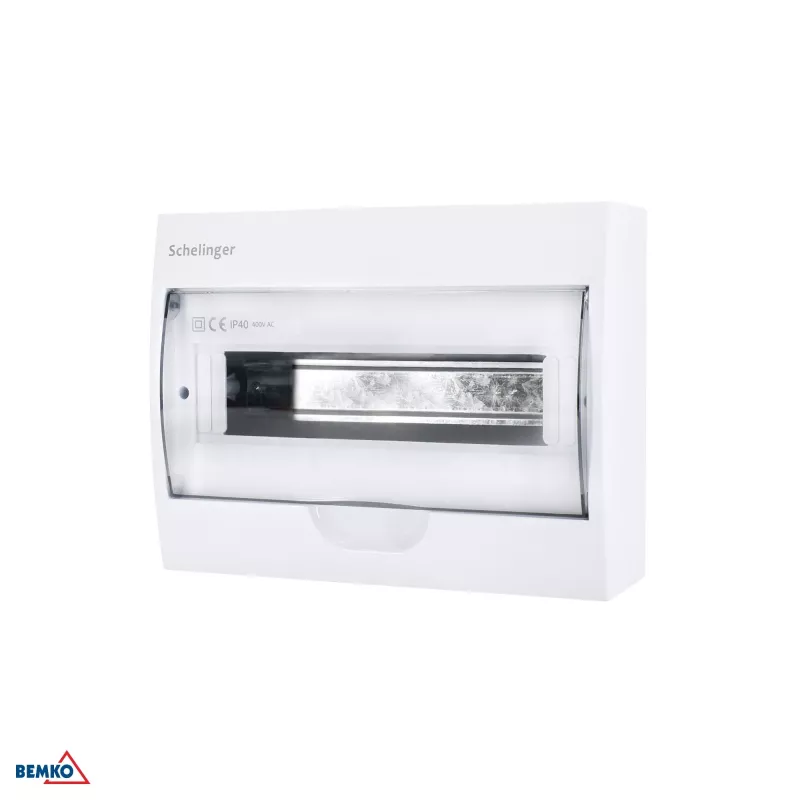

The SCHELINGER A80-RDN-IP40-NPE-12P is a high-quality surface-mounted distribution board designed for indoor electrical distribution in residential and commercial applications. With an IP40 protection rating, it offers reliable protection against dust and splashing water. The enclosure is made of durable ABS plastic with a transparent polycarbonate door, allowing easy visual inspection of the installed components. This board comes with 12 neutral and 12 earth terminals (N+PE), providing ample connection points for your electrical circuits.

Advantages

This distribution board combines robust construction with ease of installation. The surface-mounted design simplifies mounting on walls, and the included TH35 DIN rail accommodates standard modular devices. The reversible smoked transparent door adds a modern aesthetic while protecting internal components. The board is halogen-free and complies with PN-EN 62208 and PN-EN 60670-24 standards, ensuring safety and reliability.

Suitable for

• Residential electrical distribution
• Commercial buildings
• Indoor installations requiring IP40 protection
• Applications needing up to 12 modules in a single row

Key specifications

• Mounting Type: Surface-mounted
• IP Protection Rating: IP40
• Number of Modules: 12
• Number of Rows: 1
• Enclosure Material: ABS Plastic
• Door Material: Transparent Polycarbonate (PC)
• Color: White (RAL 9003)
• N+PE Terminal Blocks Included: Yes
• Number of Neutral Terminals: 12
• Number of Earth Terminals: 12
• Rated Insulation Voltage (Ui): 500V AC
• Rated Current (In): Up to 63A (for terminal blocks)
• Impact Resistance: IK07
• Glow Wire Test: 650°C
• Halogen-Free: Yes
• Standards Compliance: PN-EN 62208, PN-EN 60670-24
• Operating Temperature: -25°C to +60°C
• Door Type: Smoked transparent, reversible
• DIN Rail: TH35 (included)
• Application: Indoor electrical distribution

Recommendations

For optimal performance, ensure that the distribution board is installed by a qualified electrician. Use appropriate cable glands for cable entry and follow local electrical codes. The board is designed for indoor use only; avoid exposure to extreme weather conditions.
