SCHELINGER Μπλοκ διανομής 14 ακροδέκτες 2x7 (5x5,3mm + 2x7,5mm)

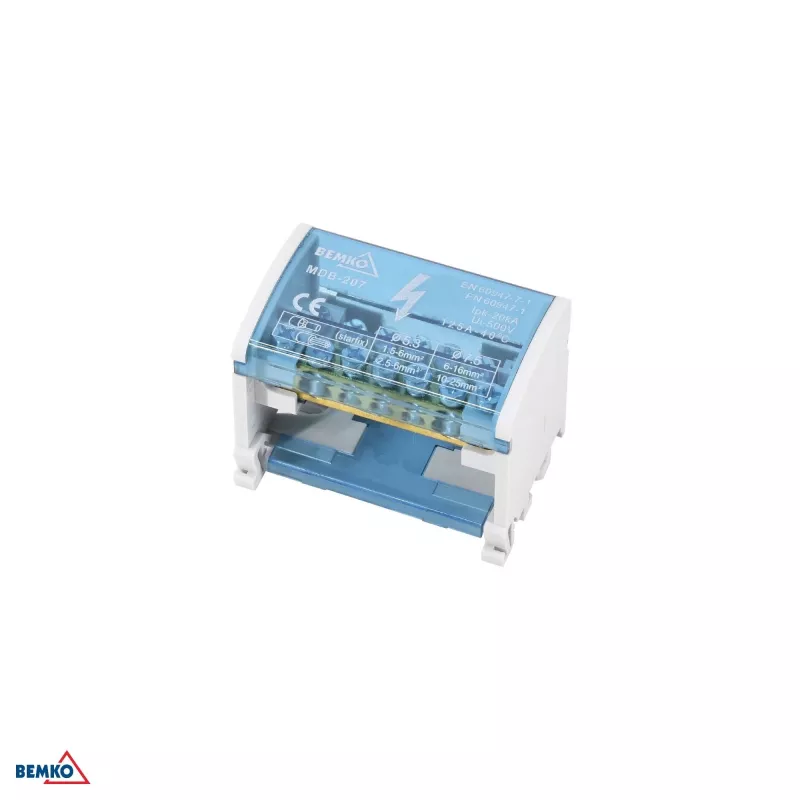

The SCHELINGER Distribution Block A18-MDB-207 is a high-quality terminal block designed for efficient power distribution in industrial and commercial electrical installations. With 14 terminals arranged in 2 poles of 7, it offers a compact and reliable solution for connecting multiple conductors.

Advantages

This distribution block ensures secure and organized wiring, reducing installation time and maintenance. Its robust construction with brass conductors and polyamide insulation guarantees long-lasting performance and safety. The dual mounting option (DIN rail or screw mount) provides flexibility for various enclosure types.

Suitable for

• Electrical distribution panels
• Control cabinets
• Industrial automation systems
• Power supply units

Key specifications

• Number of Poles: 2
• Total Terminals: 14 (7 per pole)
• Terminal Type: Screw Clamp
• Output Terminal Sizes (per pole): 5 x 5.3mm, 2 x 7.5mm
• Max Current Rating (per pole): 100 A
• Max Voltage Rating: 690 V AC
• Wire Cross-Section (5.3mm terminals): 1.5 - 16 mm²
• Wire Cross-Section (7.5mm terminals): 6 - 35 mm²
• Mounting Type: DIN Rail / Screw Mount
• Conductor Material: Brass
• Insulation Material: Polyamide (PA)
• Color: Grey
• Operating Temperature Range: -25°C to +80°C
• Protection Class: IP20
• Standards Compliance: CE, RoHS

Recommendations

For optimal performance, ensure proper torque settings when tightening screw clamps. Use appropriate wire ferrules for stranded conductors. This distribution block is ideal for applications requiring high current capacity and reliable connections.
