SCHELINGER Χωνευτός Πίνακας Διανομής IP40 18N+18PE 1x18P

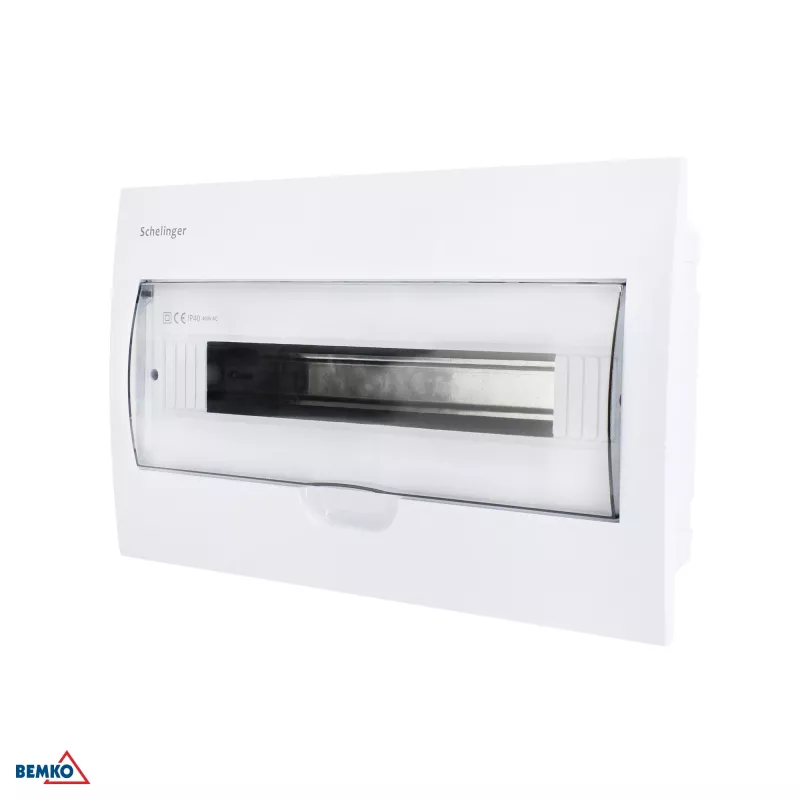

The SCHELINGER A80-RDP-IP40-NPE-18P is a high-quality flush-mounted distribution board designed for indoor electrical installations. It features 18 neutral and 18 protective earth terminals, providing reliable and organized wiring for residential and commercial applications. The board is IP40 rated, offering protection against solid objects larger than 1mm, and comes with a transparent smoked door for easy monitoring.

Advantages

This distribution board offers a compact 1-row design with 18 DIN modules, making it ideal for space-saving installations. The included N+PE terminals simplify wiring, while the high-quality ABS plastic body ensures durability and long service life. The transparent door allows quick visual inspection of circuit breakers and other components.

Suitable for

• Indoor electrical distribution in residential buildings
• Commercial electrical installations requiring flush-mounted boards
• Applications needing 18 neutral and 18 protective earth terminals

Key specifications

• Installation Type: Flush-mounted
• IP Protection Rating: IP40
• Number of Modules (DIN): 18
• Number of Rows: 1
• Number of Neutral Terminals: 18
• Number of Protective Earth Terminals: 18
• Material: High-quality ABS plastic
• Door Type: Transparent, Smoked
• Color: White (body), Smoked (door)
• Glow Wire Test: 650°C
• Impact Resistance: IK07
• Rated Insulation Voltage (Ui): 500V
• Rated Operating Voltage (Ue): 400V AC
• Operating Temperature Range: -5°C to +60°C
• Standards Compliance: PN-EN 60670-24, PN-EN 62208
• DIN Rail Included: Yes

Recommendations

For optimal performance, ensure proper installation by a qualified electrician. This distribution board is designed for indoor use only and should be mounted in a dry location. Always follow local electrical codes and regulations.
