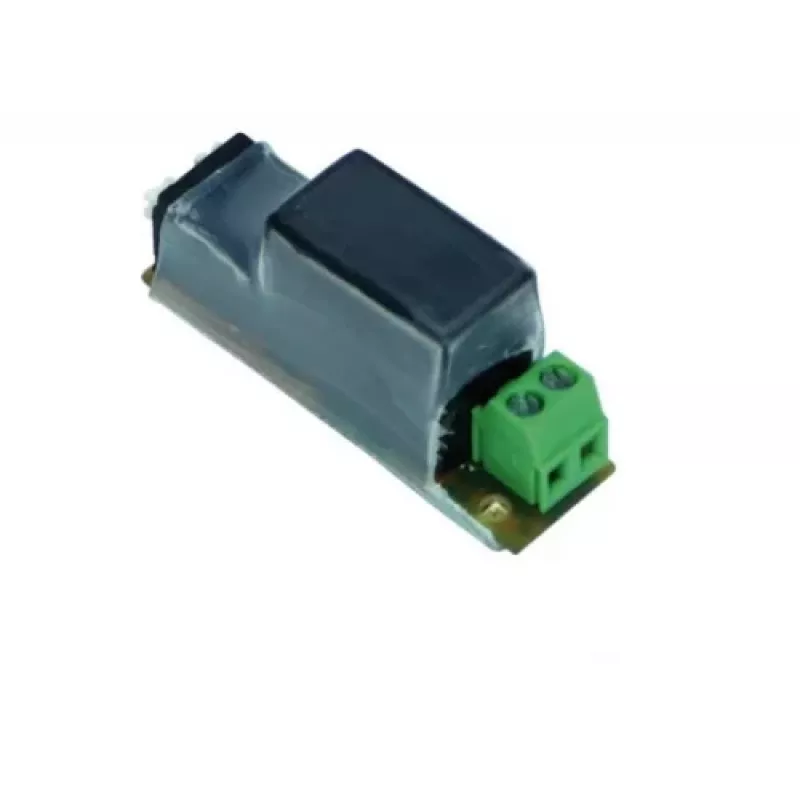

ROPAM RM5-12V-1P Μονάδα ρελέ 12V DC SPDT 10A ράγας DIN

The ROPAM RM5-12V-1P is a compact and reliable single-channel relay module designed for industrial and security applications. With a nominal supply voltage of 12V DC and SPDT contact configuration, it provides versatile switching capabilities for alarm systems, access control, and automation projects. The module features LED status indication, screw terminal connections, and supports both DIN rail (TS-35) and surface mounting.

Advantages

This relay module offers high reliability with a wide operating temperature range and low power consumption. The SPDT contacts allow both normally open and normally closed configurations, making it suitable for various control logic requirements. The LED indicator provides clear visual feedback of relay status, simplifying troubleshooting and monitoring.

Suitable for

• Alarm systems and security panels
• Access control systems (door locks, gates)
• Industrial automation and PLC interfaces
• Home automation and smart building controls
• Signal switching in low-voltage circuits

Key specifications

• Module Type: Relay Module
• Number of Relays: 1
• Relay Type: SPDT (Single Pole Double Throw)
• Nominal Supply Voltage: 12V DC
• Supply Voltage Range: 10V - 15V DC
• Max Contact Current (AC): 10A
• Max Contact Voltage (AC): 250V AC
• Max Contact Current (DC): 10A
• Max Contact Voltage (DC): 30V DC
• Current Consumption (Relay OFF): Approx. 20mA
• Current Consumption (Relay ON): Approx. 40mA
• Mounting Type: DIN Rail (TS-35) / Surface Mount
• Connection Type: Screw Terminals
• Max Wire Gauge: 2.5 mm²
• Status Indication: LED (for relay status)
• Operating Temperature: -10°C to +55°C
• Operating Humidity: 10% - 90% RH (non-condensing)

Recommendations

For optimal performance, use a regulated 12V DC power supply and ensure proper wire sizing (max 2.5 mm²). The module is designed for indoor use only; avoid exposure to moisture or extreme temperatures beyond the specified range. When mounting on a DIN rail, ensure secure clipping to prevent vibration.
