Μονάδα πομποδέκτη οπτικών ινών BlueOptics 4TC7A78615-BO SFP+ LC αλουμίνιο

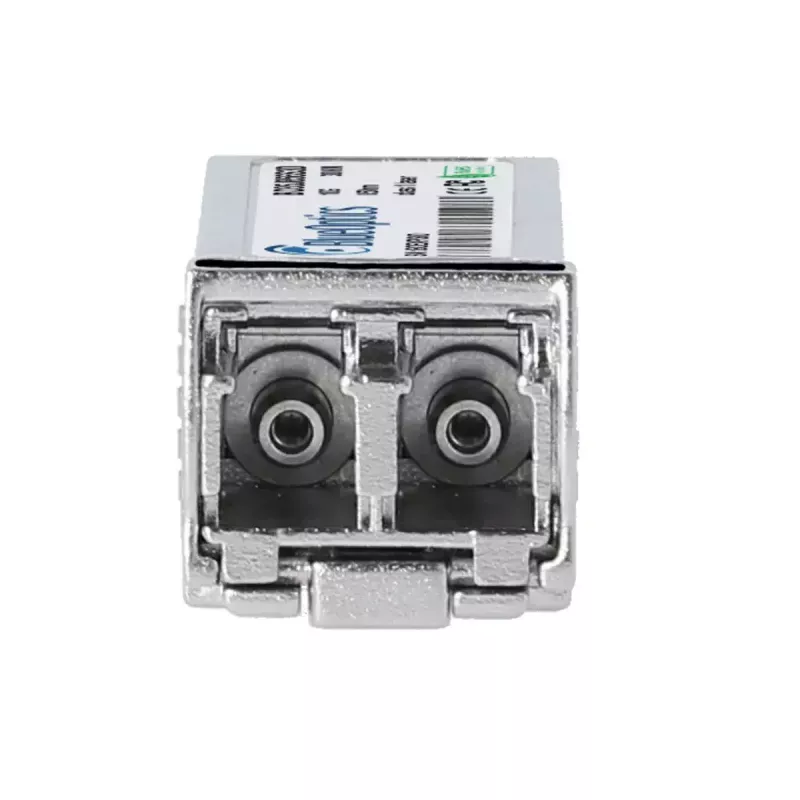

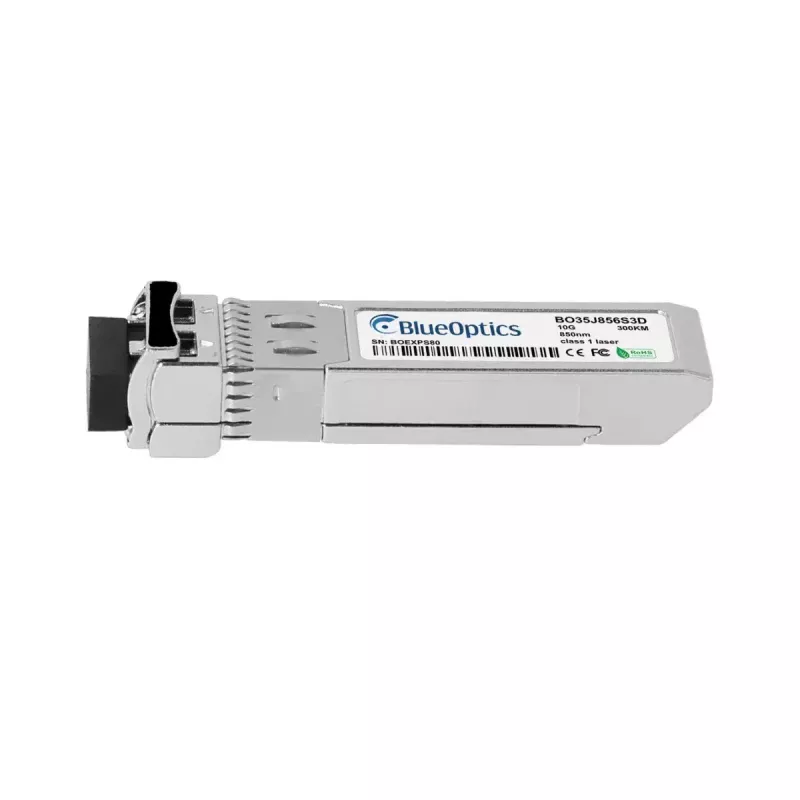

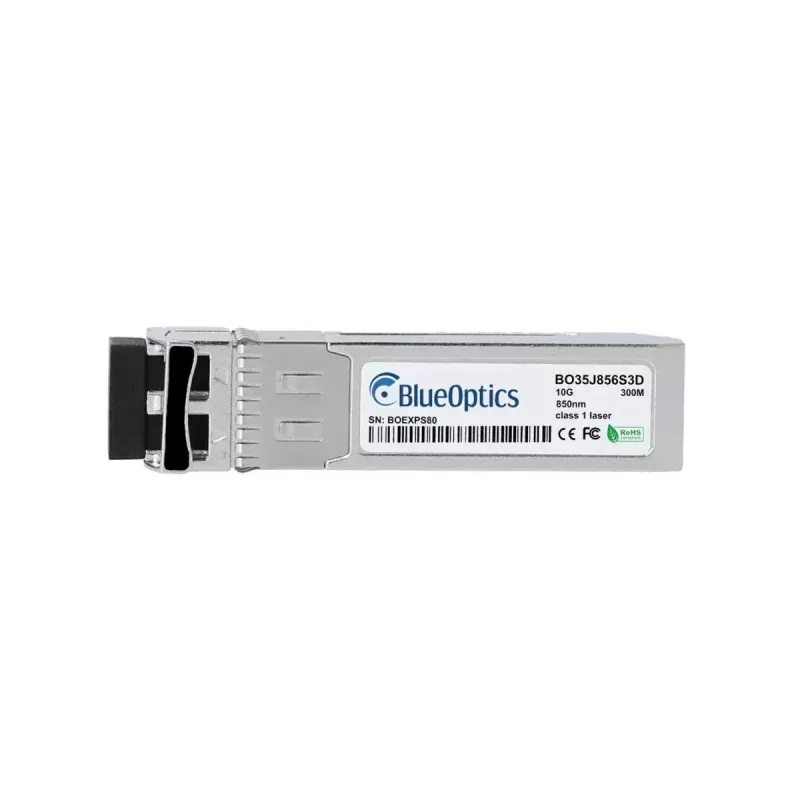

The BlueOptics 4TC7A78615-BO SFP+ LC Aluminium is a 10GBASE-SR compatible fiber optic transceiver module built to provide reliable short-range multimode fiber connectivity. Housed in an aluminium SFP+ form factor with an LC duplex connector, the module supports bidirectional 850 nm transmit and receive on multimode fiber and conforms to MSA mechanical and electrical standards for straightforward integration into compatible network platforms.

Advantages

This SFP+ transceiver supports up to 10 Gbit/s data rates for short-range optical links and is compatible with major switch and storage platforms that accept MSA-compliant 10GBASE-SR SFP+ modules. The aluminium housing provides mechanical durability and thermal stability. Built with industry-grade optoelectronic components and tested for interoperability, the module offers predictable performance and long service life for high-availability network environments.

Suitable for

• 10 Gigabit Ethernet connections over multimode fiber within data centers
• Interconnects between switches, routers and storage systems
• Short-range optical uplinks and server-to-switch links (up to multimode range limits)
• Environments requiring MSA-compliant SFP+ modules with LC duplex connectors

Key specifications

• Form factor: SFP+ (hot-pluggable)
• Optical standard: 10GBASE-SR
• Wavelength: 850 nm transmit and receive for multimode fiber
• Connector type: LC duplex
• Housing material: Aluminium
• Data rate: up to 10 Gbit/s
• Typical reach: multimode fiber (industry short-range limits up to ~300 m depending on fiber type)
• MSA-compliant mechanical and electrical interface

How to use

Insert the SFP+ transceiver into an appropriate SFP+ slot on supported networking equipment until it latches; connect LC duplex multimode fiber patch cords to the module’s LC connector, observing transmit/receive polarity. Ensure the host device firmware or software accepts third-party SFP+ modules and enable Digital Diagnostics (if supported by the host) to monitor operating parameters such as temperature and optical power. Verify link LEDs and management interfaces to confirm successful negotiation and link establishment.

Recommendations

Use quality multimode fiber patch cords and patch panels to achieve the expected range and signal integrity. Confirm that the target hardware supports DDM/DOM if you require real-time diagnostics. For optimal lifetime and reliability, maintain proper airflow around the transceiver and avoid excessive insertion/removal cycles.
