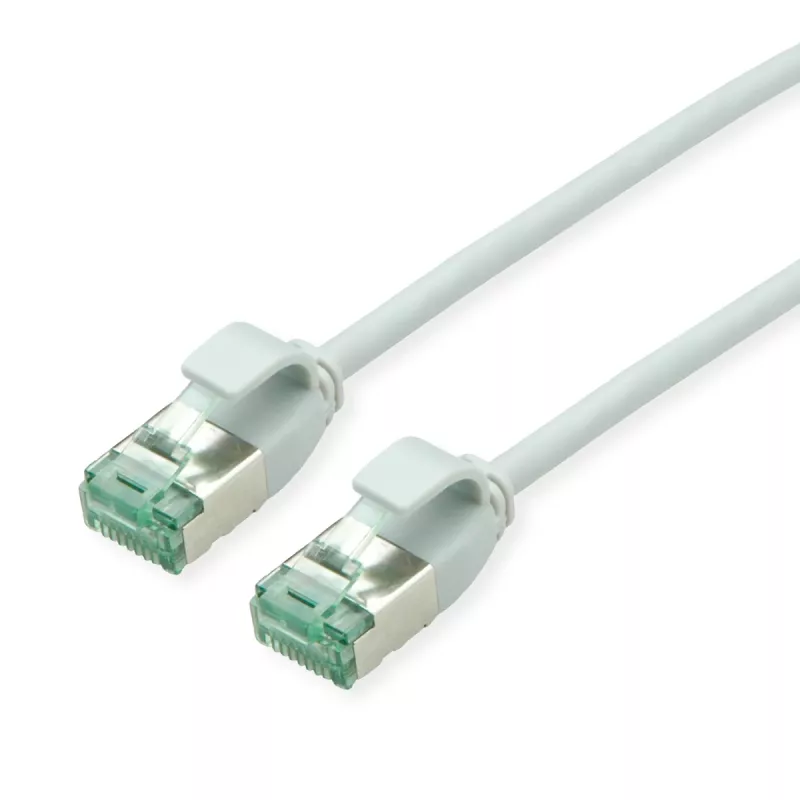

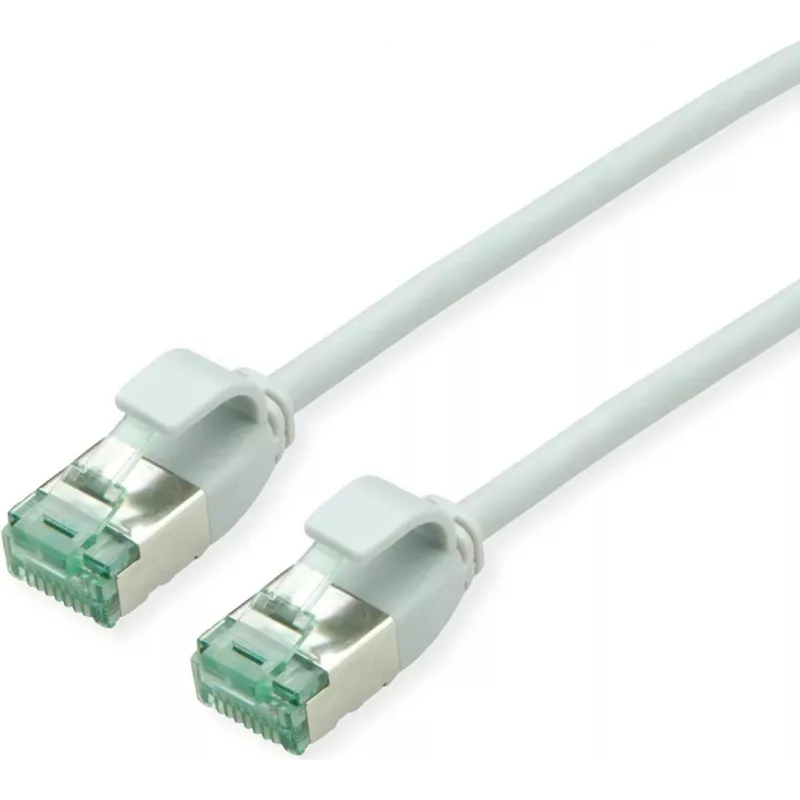

ROLINE RM U/FTP Patchkabel Cat.6A/Class EA Slim γκρι 1,5m 21.45.3304

This ROLINE RM patch cable stands out with its slim design, reducing clutter in high-density installations while maintaining full Cat.6A performance. The U/FTP shielding with foil per pair ensures excellent protection against alien crosstalk, making it suitable for 10 Gigabit Ethernet up to 500 MHz.

Highlights

• Cat.6A / Class EA performance for 10GBase-T networks
• Slim cable with ~3.6 mm outer diameter for space-saving routing
• U/FTP shielding: each pair individually foil-shielded
• LSOH jacket for low smoke and zero halogen in fire conditions
• Snagless molded boots protect the locking tab
• Gold-plated RJ45 connectors (50 µm) ensure reliable contacts

In daily use

The stranded copper conductors (28 AWG) provide flexibility for frequent patching, while the slim profile eases cable management in racks and behind desks. The grey jacket blends unobtrusively into office environments.

Full specifications

• Cable length: 1.5 m
• Cable standard: Cat.6a
• Cable shielding: U/FTP
• Cable type: Slim Ethernet Patch Cable
• Connector type: RJ45 male to RJ45 male
• Conductor material: Copper
• Conductor gauge: 28 AWG
• Jacket material: LSOH
• Outer diameter: 3.6 mm
• Max bandwidth: 500 MHz
• Data transfer rate: 10 Gbps
• Colour: Grey

Final note

A reliable slim Cat.6A patch cable for high-speed networking in space-constrained setups.
