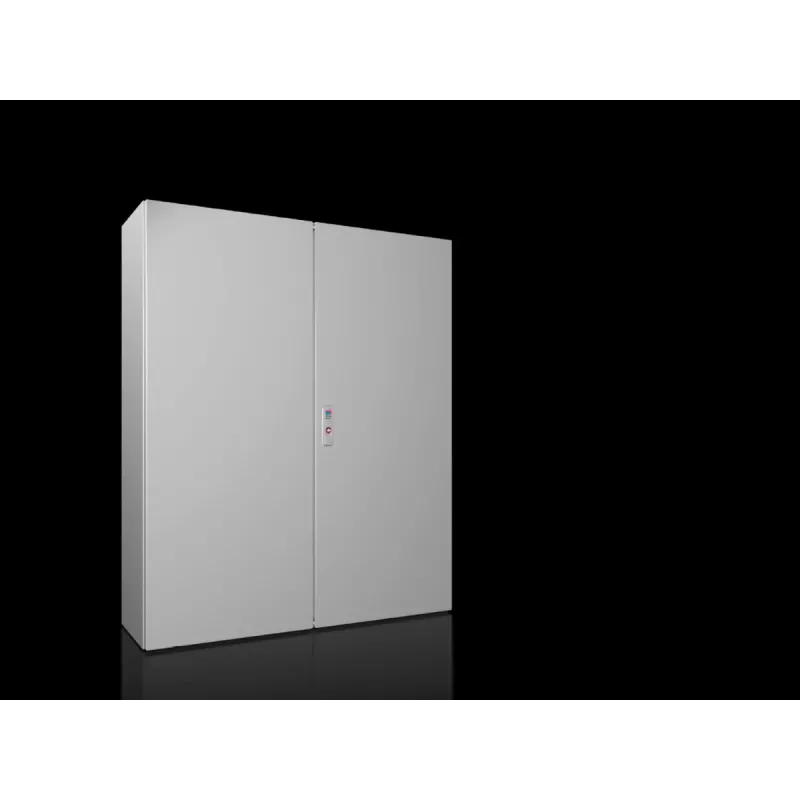

Rittal Συμπαγές Ερμάριο AX, 2-φυλλο, 1000x1200x300mm

Industrial control engineers and panel builders use the Rittal Compact Enclosure AX to house electrical and electronic components in demanding environments. This two-door enclosure measures 1000 mm wide, 1200 mm high, and 300 mm deep, providing ample space for control gear, terminals, and DIN rail equipment. The sheet steel body with a dip-primed, powder-coated finish in light grey (RAL 7035) ensures durability and corrosion resistance. The zinc-plated mounting plate is depth-adjustable, allowing flexible installation of components. A multi-piece gland plate facilitates cable entry and sealing. The enclosure is rated IP 66 and NEMA 4/12, making it suitable for use in dusty or wet locations. The doors open 130° and are secured with a 3 mm double-bit lock. With a material thickness of 1.25 mm for the body, 1.5 mm for the doors, and 2.5 mm for the mounting plate, this enclosure offers robust protection. It is approved by UL, cUL, TÜV, Germanischer Lloyd, EAC, and VDE. The enclosure is designed for wall mounting, with floor-standing possible using accessories.

Key specifications

• Enclosure type: Compact enclosure, wall-mount
• Number of doors: 2
• Material: Sheet steel
• Surface finish: Dip-primed, powder-coated (textured paint), RAL 7035
• Mounting plate: Zinc-plated, depth-adjustable, included
• Gland plate: Multi-piece, included
• Protection rating: IP 66, NEMA 4/12, IK10
• Door opening angle: 130°
• Lock: 3 mm double-bit
• Material thickness: Enclosure 1.25 mm, door 1.5 mm, mounting plate 2.5 mm
• Approvals: UL, cUL, TÜV, Germanischer Lloyd, EAC, VDE

Why choose it

The Rittal AX enclosure combines high protection with modular flexibility. Its robust steel construction and corrosion-resistant finish ensure long service life in industrial settings. The included depth-adjustable mounting plate simplifies component installation, while the multi-piece gland plate allows easy cable entry. The wide door opening and secure locking system enhance usability and safety.

Ideal use cases

• Industrial control panels
• Machine building and automation
• Power distribution and motor control
• Outdoor installations with appropriate protection

Good to know

The enclosure is supplied with two doors, mounting plate, gland plate, and lock system. It is designed for wall mounting; floor-standing installation requires additional accessories. The RAL 7035 light grey finish is standard for industrial enclosures and can be easily matched with other Rittal components.
