Περίβλημα Συναγερμού Pulsar AWO220

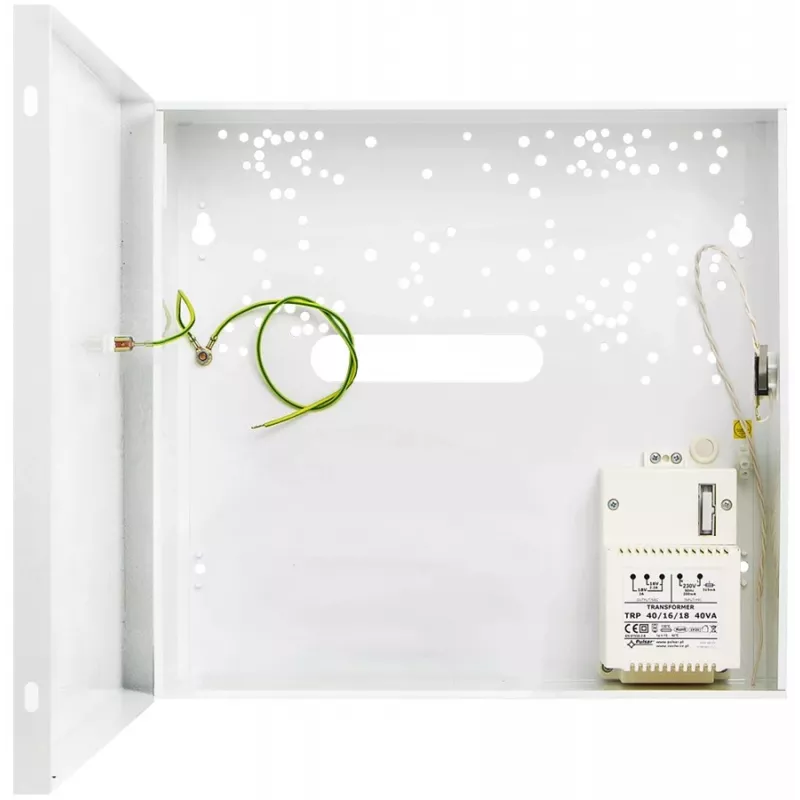

The Pulsar AWO220 is a robust metal alarm enclosure designed for surface mounting, ideal for housing alarm control panels, access control modules, and CCTV components. Manufactured from 0.8 mm steel sheet with a white RAL 9003 finish, it offers IP20 protection and includes a tamper microswitch for security.

Advantages

Durable steel construction with key lock and tamper protection ensures reliable security for your equipment. The 180-degree door opening and removable door facilitate easy installation and maintenance. Internal mounting plate and battery space for 17Ah/12V battery provide flexibility for various setups.

Suitable for

• Alarm control panels
• Access control modules
• CCTV components

Key specifications

• Enclosure type: Metal enclosure
• Mounting type: Surface-mounted
• Material: Steel sheet (0.8 mm)
• Colour: White (RAL 9003)
• Protection class: IP20
• Tamper protection: Microswitch (NC)
• Lock type: Key lock (2 keys included)
• Battery space: Yes, for 17Ah/12V battery
• Cable entries: Multiple knock-outs (top, bottom, rear)
• Ventilation: Yes, ventilation openings
• Door opening angle: 180 degrees
• Removable door: Yes
• Internal mounting plate: Yes, with mounting holes
• Operating temperature: -10°C to +40°C
• Humidity: 20% to 90% RH (non-condensing)

Recommendations

For optimal security, ensure the enclosure is properly grounded and all cable entries are sealed. Use the included keys to lock the door after installation.
