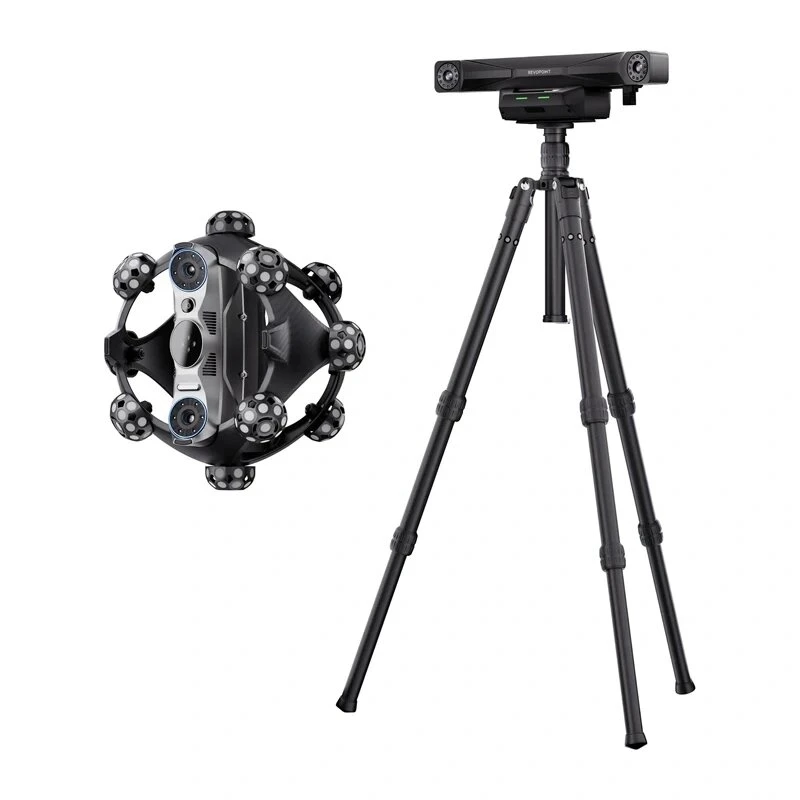

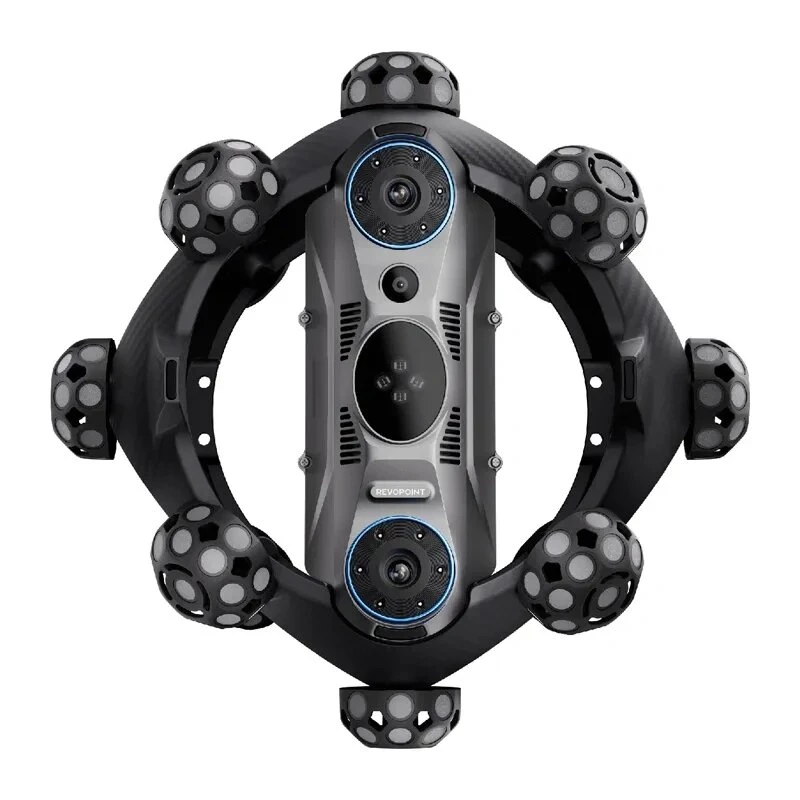

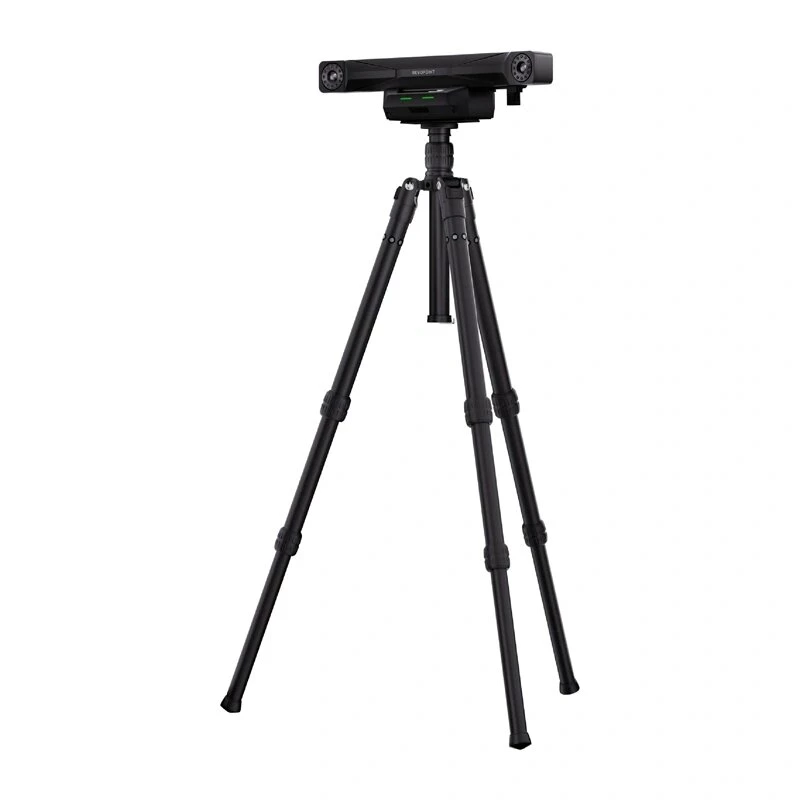

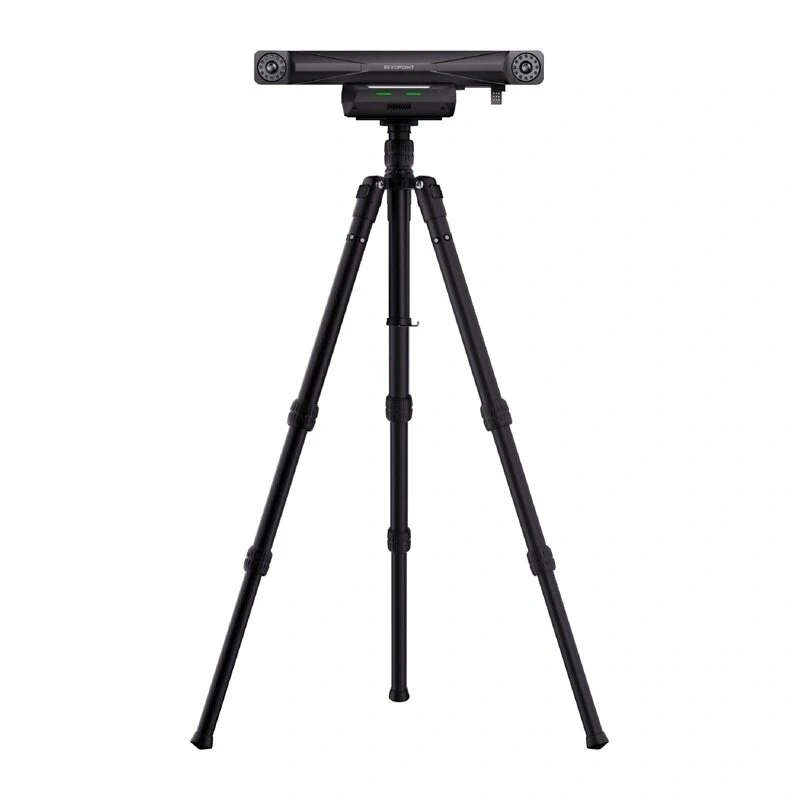

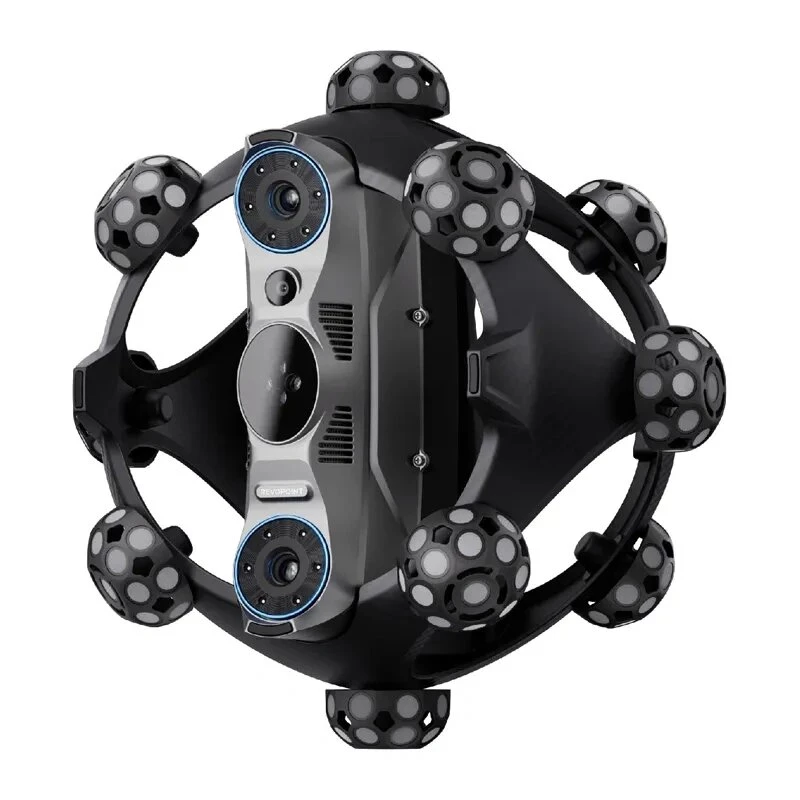

Revopoint Trackit SR οπτικός σαρωτής 3D

The Revopoint Trackit SR Optical 3D Scanner combines high scanning accuracy with wireless operation, advanced optical tracking, and three scanning modes. Weighing just 1 kg, it is easy to transport and suitable for scanning both small details and large objects. The package includes Revo Measure and Revo Track software for streamlined measurements and data processing.

Key features

• Three scanning modes: long-range mode with 17 parallel laser lines, fine-detail mode with 30 intersecting laser lines, and single laser line for deep holes and hard-to-reach areas
• Advanced optical tracking system eliminates the need for markers
• Wireless operation with support for wireless multi-position stations
• Volumetric accuracy: 0.02 + 0.04 mm × L (m)
• Thermal stabilization time: 2 minutes
• Full system setup in less than 20 minutes
• Operates outdoors under light intensities up to 100,000 lux
• Creates detailed texture maps and accurately reproduces colors
• Includes Revo Measure and Revo Track software

Specifications

• Brand: Revopoint
• Model: Trackit SR
• Material: Polycarbonate
• Weight: 1 kg
• Single-frame accuracy: 0.02 mm
