Πομποδέκτης SFP+ Digitus συμβατός με HP DN-81201-01

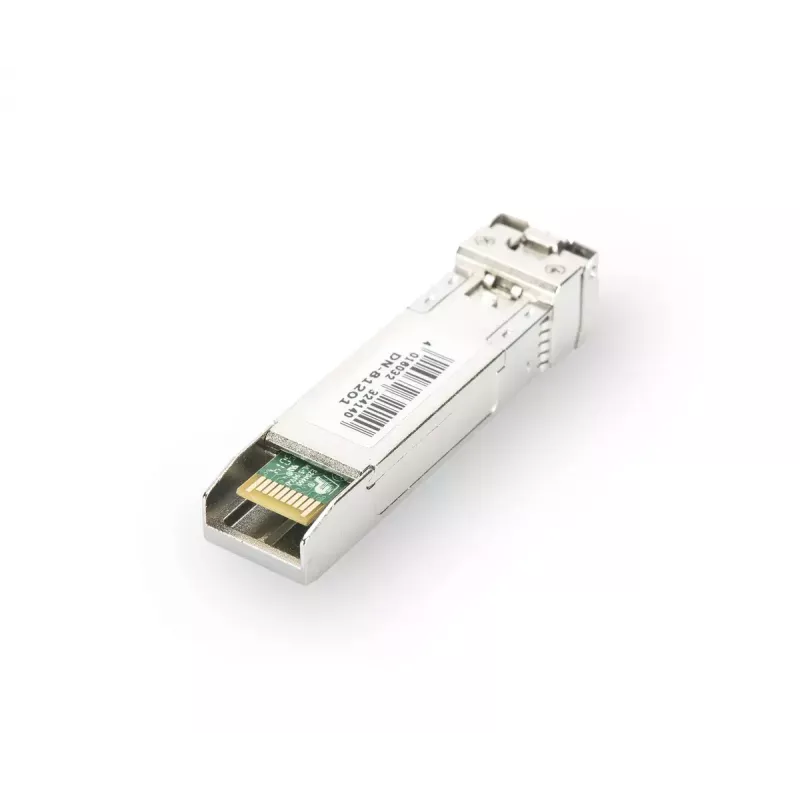

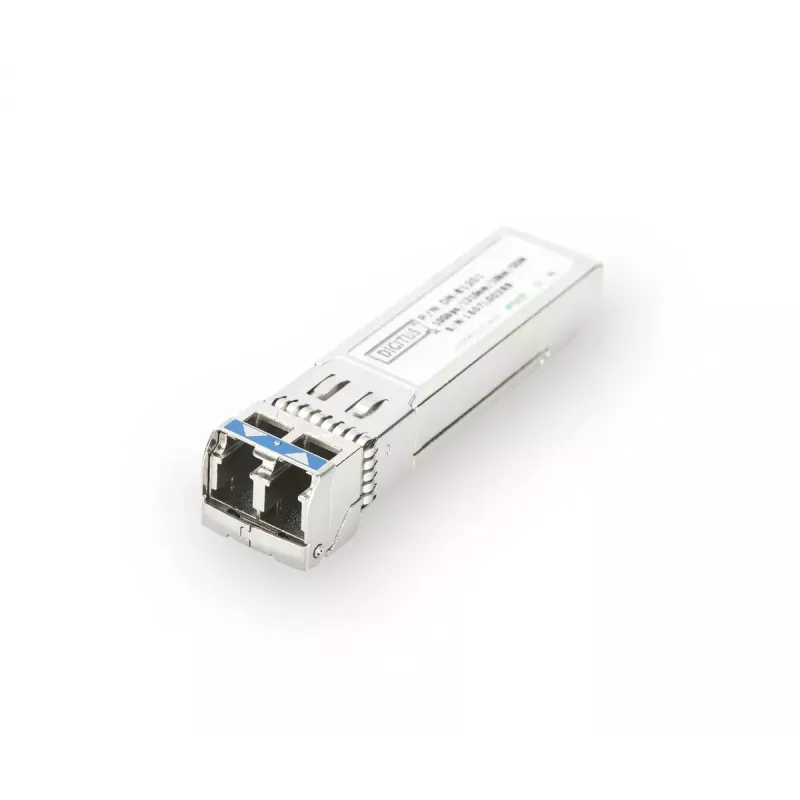

The SFP+ Transceiver Digitus HP-compatible DN-81201-01 is a plug-and-play mini GBIC (SFP+) module designed for single-mode fiber links. It supports 10 Gigabit Ethernet at 1310 nm with a maximum reach of 10 km, includes DDM for monitoring, and is compatible with HP equipment. The module operates reliably across an industrial temperature range and follows MSA standards to ensure interoperability with third-party devices.

Advantages

The transceiver provides quick installation through a plug-and-play design and delivers high-quality data transmission with robust reliability. Its compliance with the MSA (Multi Source Agreement) standard ensures broad compatibility, while DDM support enables real-time monitoring of link parameters. The module supports a data rate up to 10 Gbit/s over single-mode fiber and maintains performance across the specified operating temperature range.

Suitable for

• High-speed uplinks between switches
• Connections between media converters and switches
• Long-distance 10 Gigabit Ethernet links up to 10 km
• Network equipment requiring HP-compatible SFP+ modules

Key specifications

• Model: DN-81201-01 (DIGITUS)
• Form factor: SFP+ / mini GBIC
• Wavelength: 1310 nm
• Maximum data transfer rate: 10 000 Mbit/s (10 Gbit/s)
• Maximum transfer distance: 10 000 m (10 km)
• Fiber type: single-mode

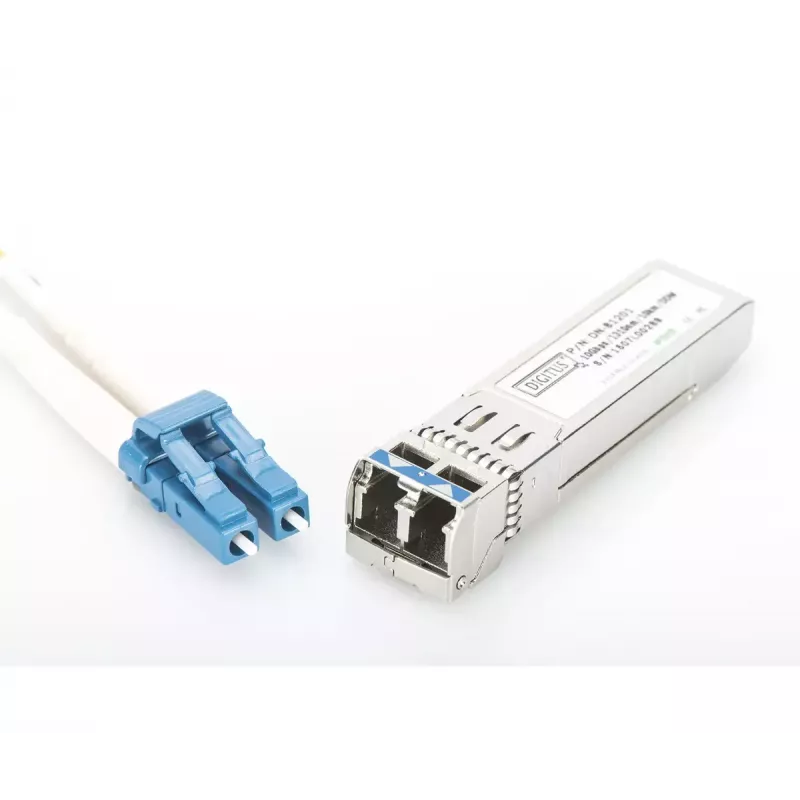

• Connector: LC
• Monitoring: DDM (Digital Diagnostics Monitoring)
• Operating temperature: 0 °C to 70 °C
• Compatibility: HP-compatible; MSA-compliant

How to use

Install the SFP+ transceiver into an SFP+ slot on a compatible switch, converter, or network device until it clicks into place. Connect single-mode LC fiber cables to the module, ensuring proper polarity and connector cleanliness. Once inserted, the device should be recognized automatically thanks to plug-and-play functionality; verify link status and diagnostics via the network equipment management interface if available.

Recommendations

Use single-mode LC fiber with clean connectors and observe correct polarity. Verify compatibility with host equipment, and monitor DDM readings to check signal quality. Operate the module within the specified temperature range (0 °C to 70 °C) and avoid exposing it to dust or moisture during installation.
