Πομποδέκτης και δέκτης AV ATEN VE1812-AT-G

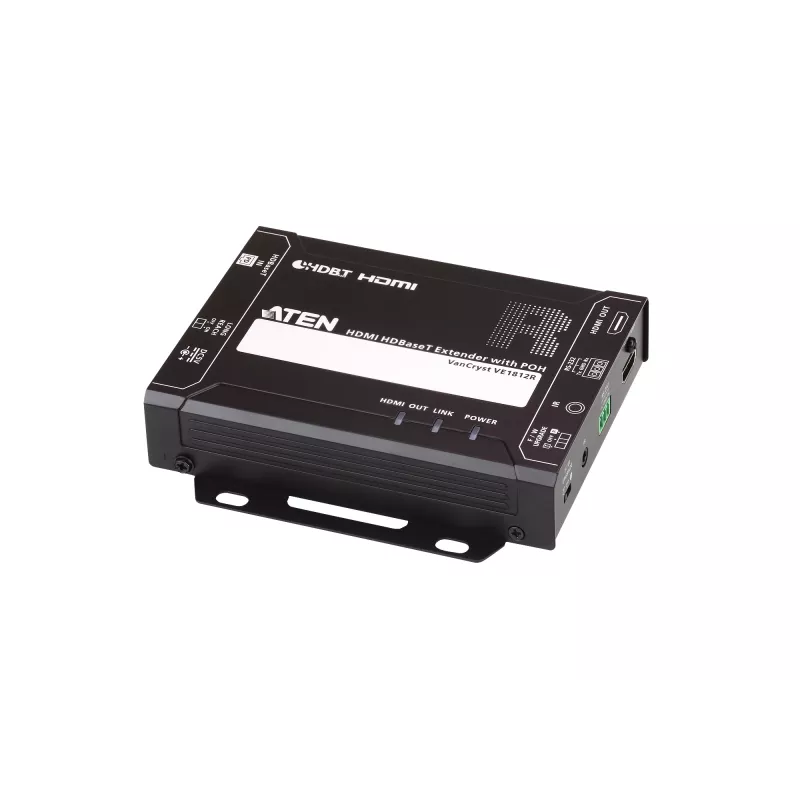

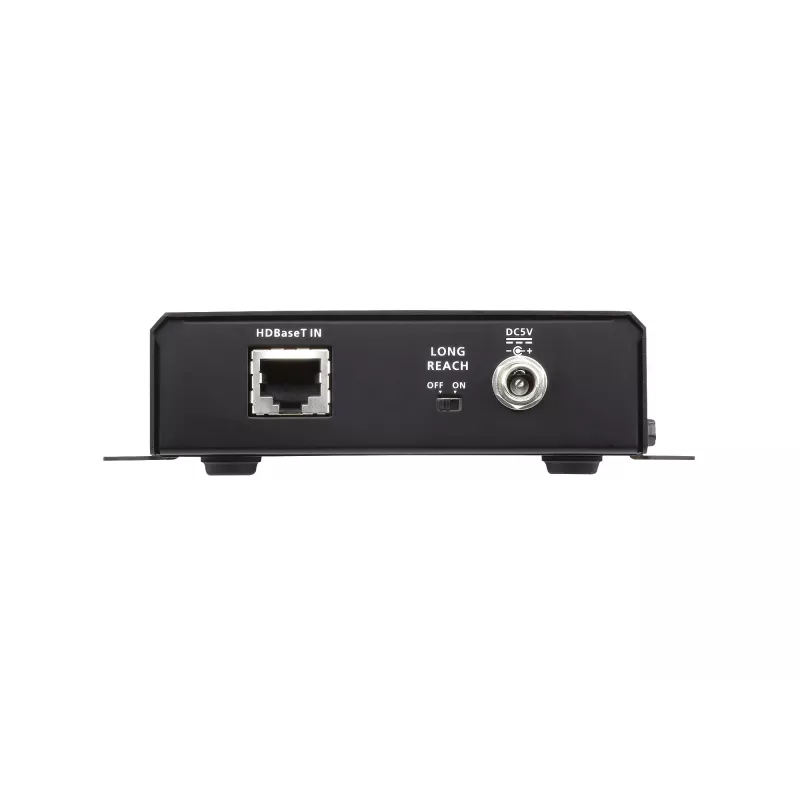

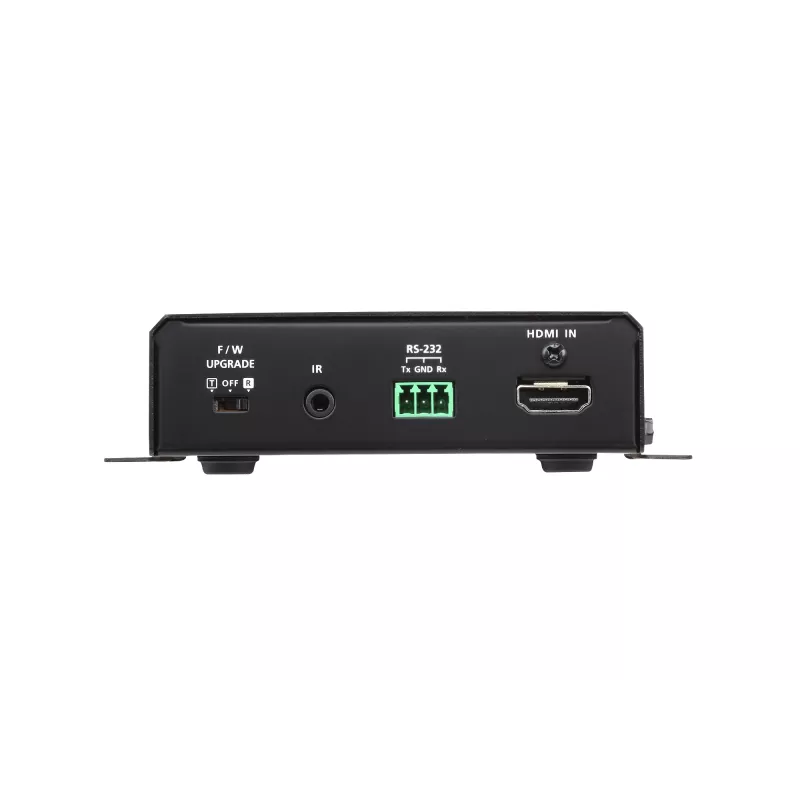

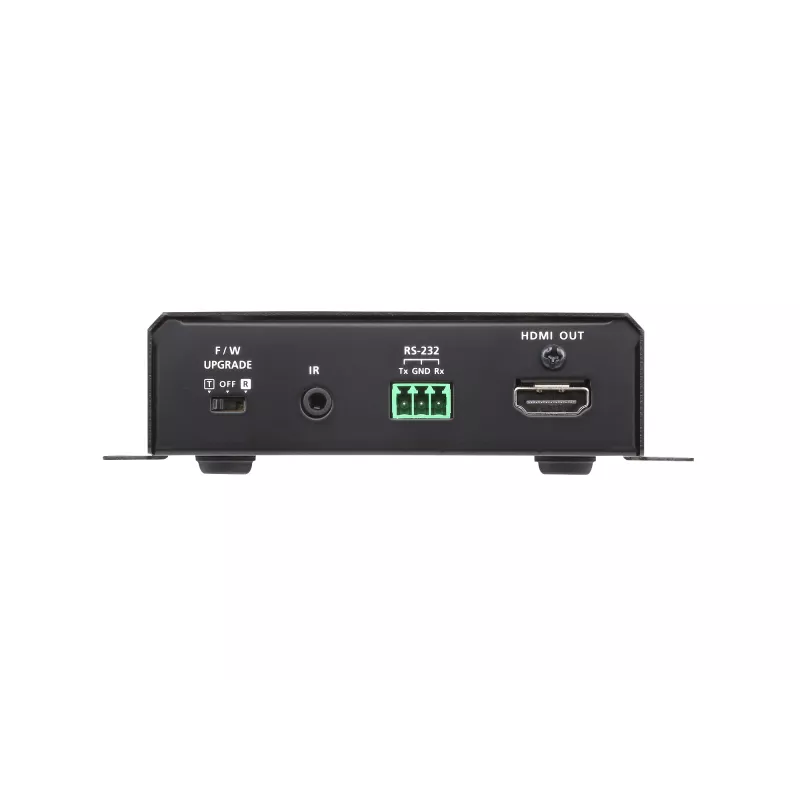

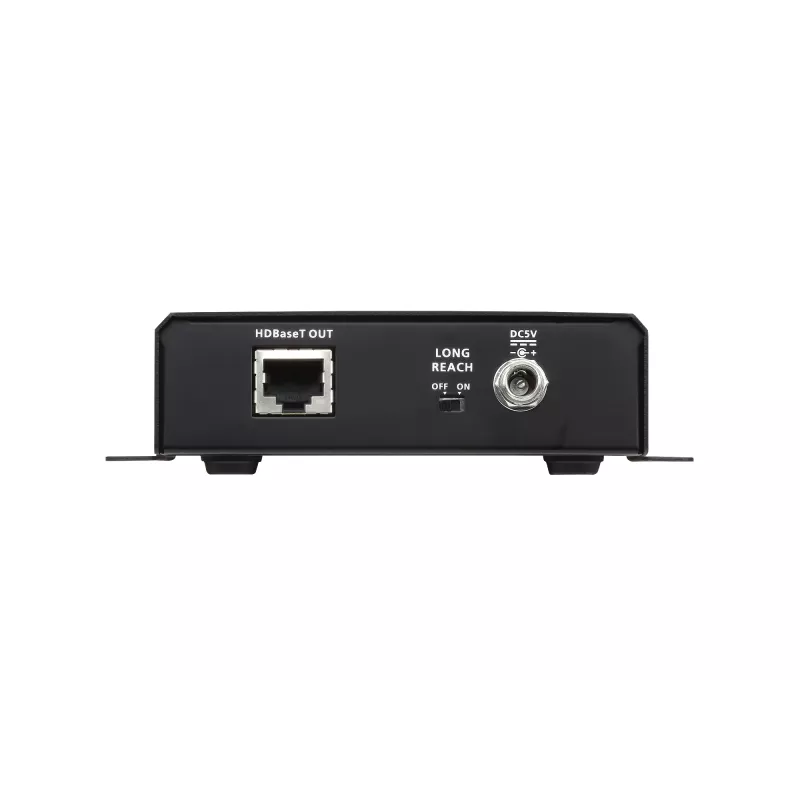

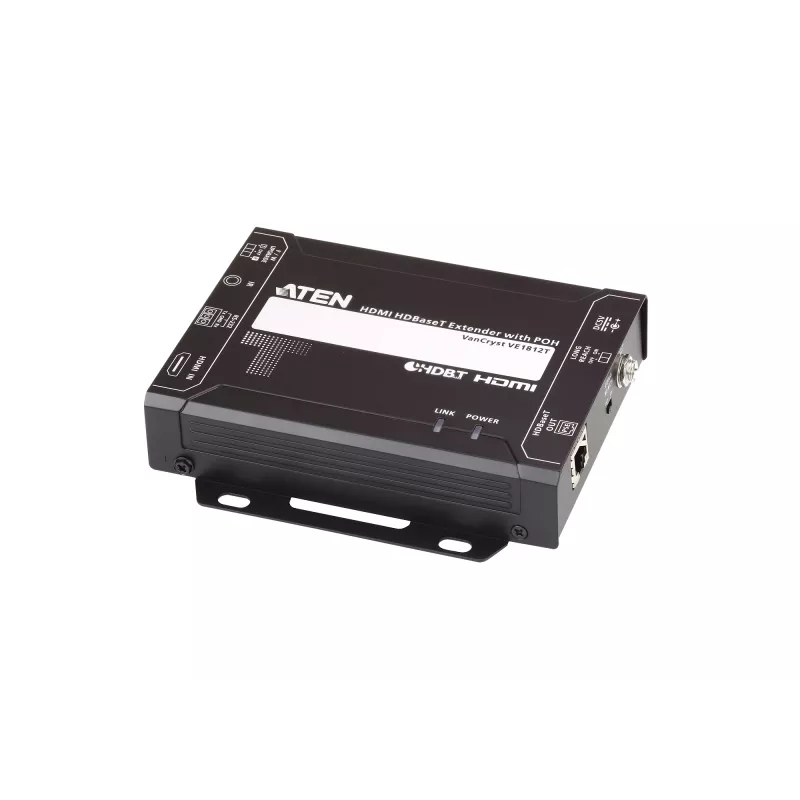

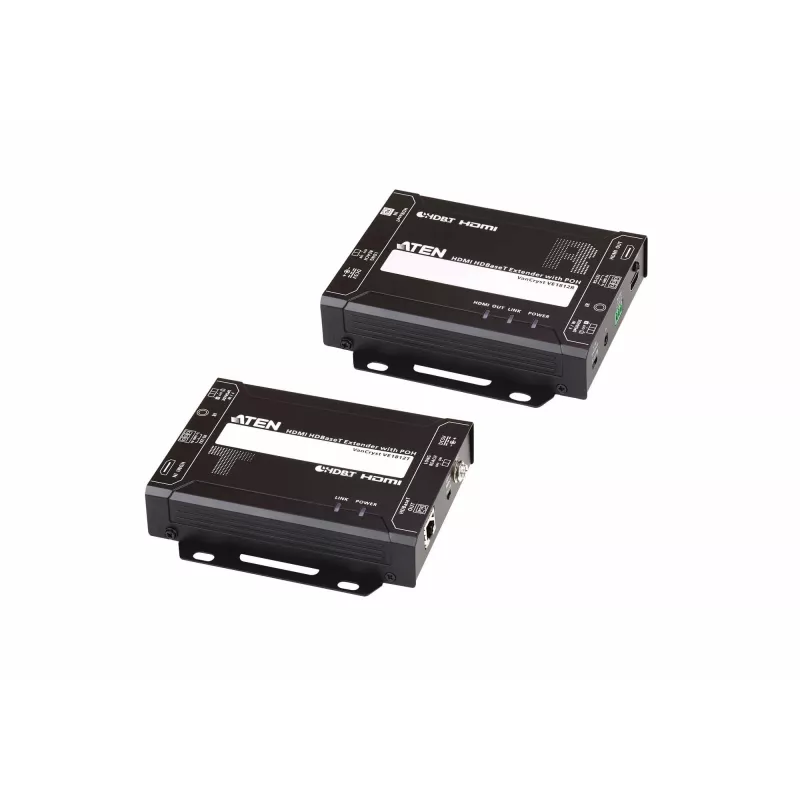

The ATEN VE1812-AT-G HDMI HDBaseT extender with Power over HDBaseT (POH) transmits high-resolution HDMI video and control signals over a single Cat 5e/6/6a cable to connect equipment at distances up to 100 m. When Long Reach Mode is enabled, the extender supports extension up to 150 m at 1080p. The set includes one transmitter, one receiver, IR transmitter and receiver units, RS-232 terminal blocks and a power adapter for straightforward installation in professional AV and KVM extender setups.

Advantages

The VE1812-AT-G provides reliable wired HDMI transmission with POH to deliver power to the remote unit over the same Cat cable, reducing the need for an additional power supply at the receiver location. It supports high-resolution video up to 4096 x 2160, offers compact receiver dimensions for easy integration, and includes IR and RS-232 support for remote control and serial device communication.

Suitable for

• Professional AV installations (conference rooms, lecture halls)
• Digital signage and display walls
• KVM extender applications and remote workstation setups
• Environments requiring IR and RS-232 remote control over distance

Key specifications

• Model: ATEN VE1812-AT-G
• Video resolution: up to 4096 x 2160
• Extension range: up to 100 m over Cat5e/6/6a (up to 150 m @1080p in Long Reach Mode)
• Power: 5 V supply, maximum consumption 3.2 W
• Receiver size: 123 x 140.4 x 30 mm
• Weight (set): 1.3 kg; Receiver weight: 450 g
• Colour: Black
• Included accessories: transmitter, receiver, power adapter (0AD8-1F05-30M1), IR transmitter (2XRT-0004G), IR receiver (2XRT-0003G-1), 2x RS-232 terminal blocks, user instructions

How to use

Connect the VE1812 transmitter to the HDMI source and the receiver to the display using HDMI cables. Link transmitter and receiver with a single Cat5e/6/6a cable, ensuring correct cable type and termination. If POH is used, connect the supplied power adapter to the unit designated to supply power over the HDBaseT link. Configure Long Reach Mode if a longer distance at 1080p is required. Use the included IR and RS-232 interfaces to integrate remote control and serial communication as needed.

Recommendations

For reliable performance, use high-quality shielded Cat6/6a cables for longer runs, avoid routing cables near large electrical sources, and verify HDMI and serial connections before final installation. Enable Long Reach Mode only when operating at 1080p to extend distance up to 150 m.
