Πομποδέκτης AV ATEN VE814A-AT-G

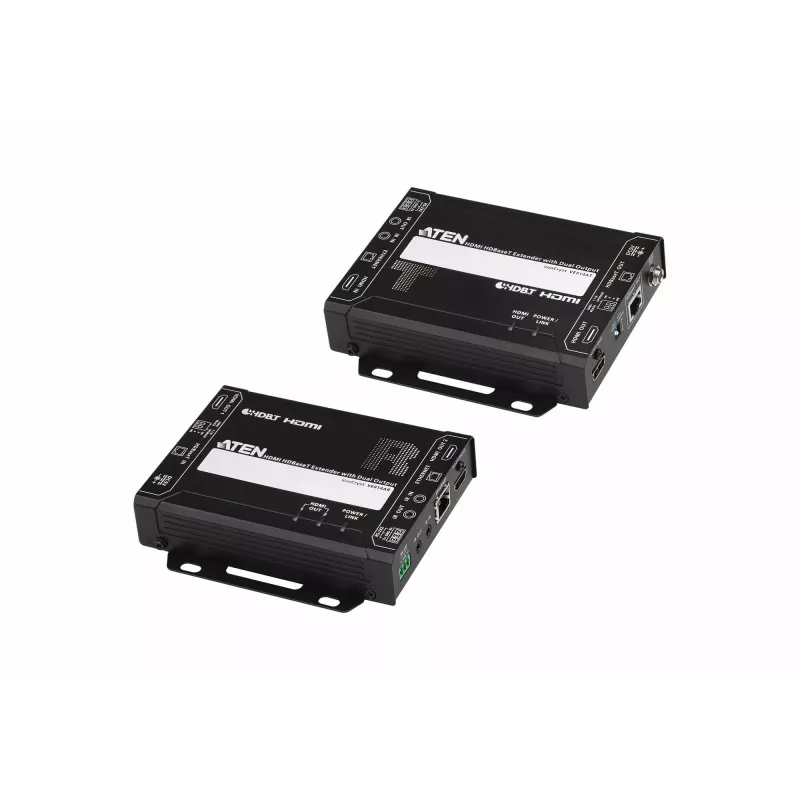

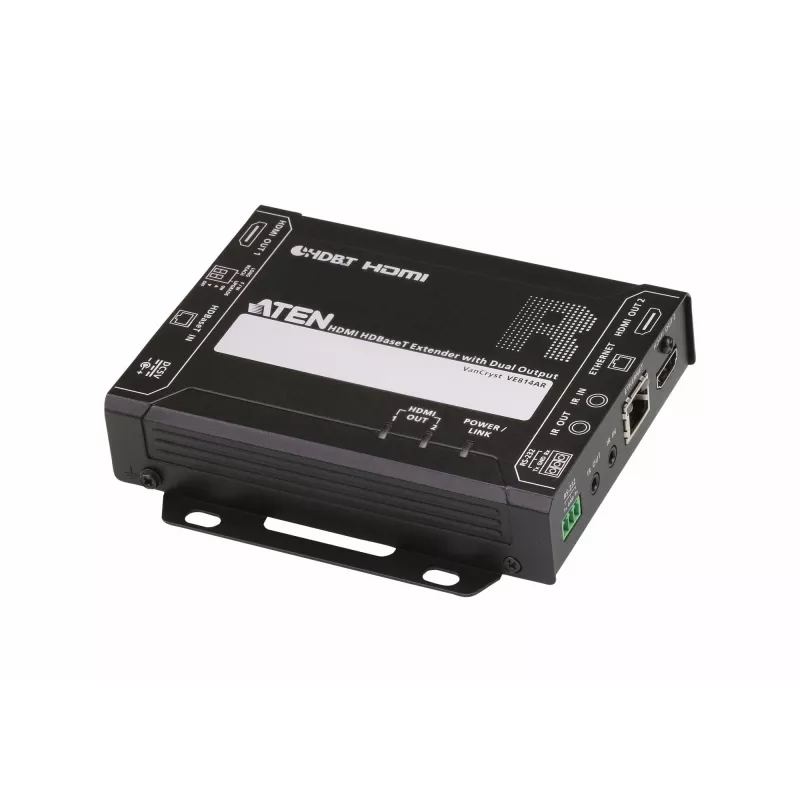

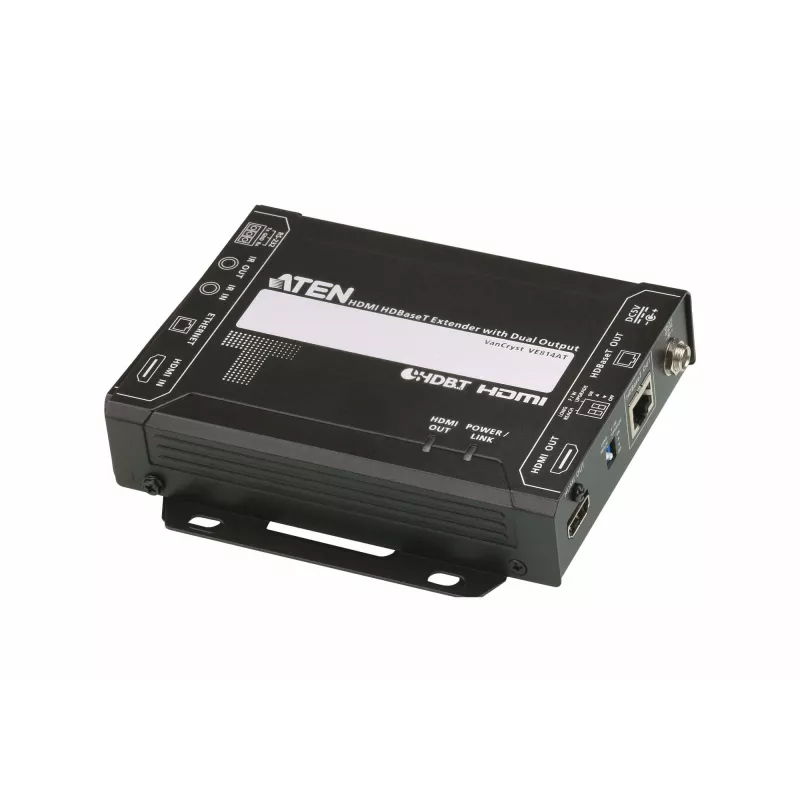

ATEN VE814A is an HDBaseT HDMI extender pair (transmitter and receiver) designed to carry HDMI signals up to 100 m over a single Cat5e/6/6a or ATEN 2L-2910 Cat6 cable. The unit supports HDCP 2.2 and HDMI features including 3D, Deep Color and a maximum data rate of 10.2 Gbps, enabling 4K video transmission for professional AV installations. The package includes one VE814AT transmitter, one VE814AR receiver, IR transmitter and receiver cables, RS-232 terminal blocks, power adapters and user instructions.

Advantages

The ATEN VE814A provides reliable long-distance HDMI transmission without signal degradation by using HDBaseT technology and a single Cat cable. Dual synchronous outputs allow feeding two remote displays plus a local display simultaneously. Compliance with HDCP 2.2 and HDMI 4K/10.2 Gbps specifications ensures compatibility with modern sources and displays. The compact receiver design and included accessories (IR cables, RS-232 blocks and power adapters) simplify installation and system integration.

Suitable for

• Conference rooms and meeting spaces requiring remote displays
• Digital signage and retail displays across long cable runs
• Lecture halls and classrooms connecting a central source to multiple screens
• Professional AV installations where 4K and HDCP 2.2 support are required

Key specifications

• Model: VE814A (VE814AT transmitter + VE814AR receiver)
• Transmission: HDBaseT over Cat5e/6/6a or ATEN Cat6 (single cable) up to 100 m
• Video support: HDMI up to 4K (4096 x 2160), 3D, Deep Color
• Max data rate: 10.2 Gbps
• HDCP: 2.2 compliant
• Power: 5V supply; power adapters included
• Weight: 1.14 kg (receiver specified)
• Colour: Black

How to use

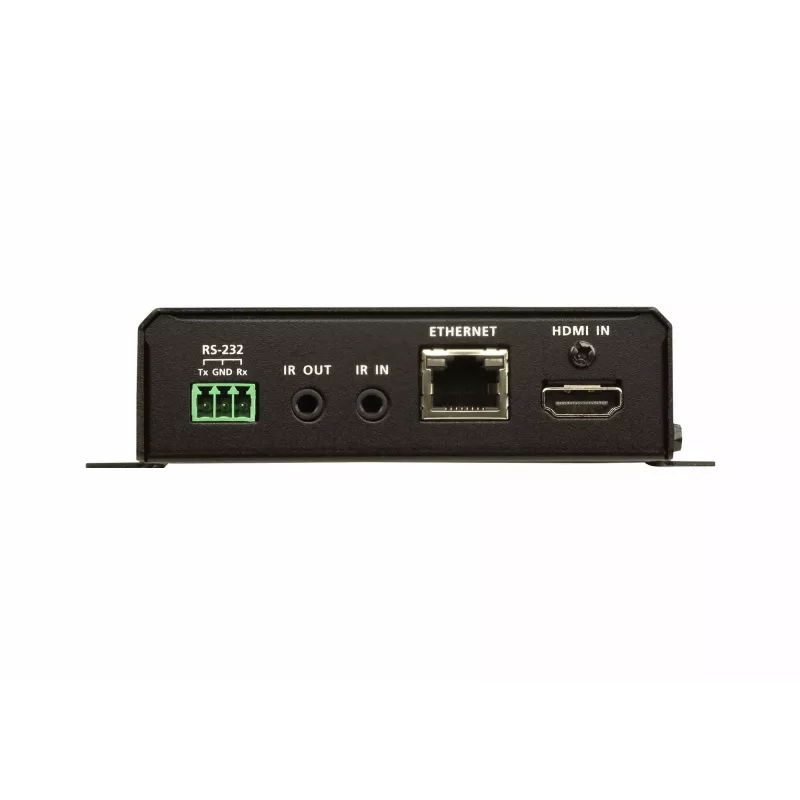

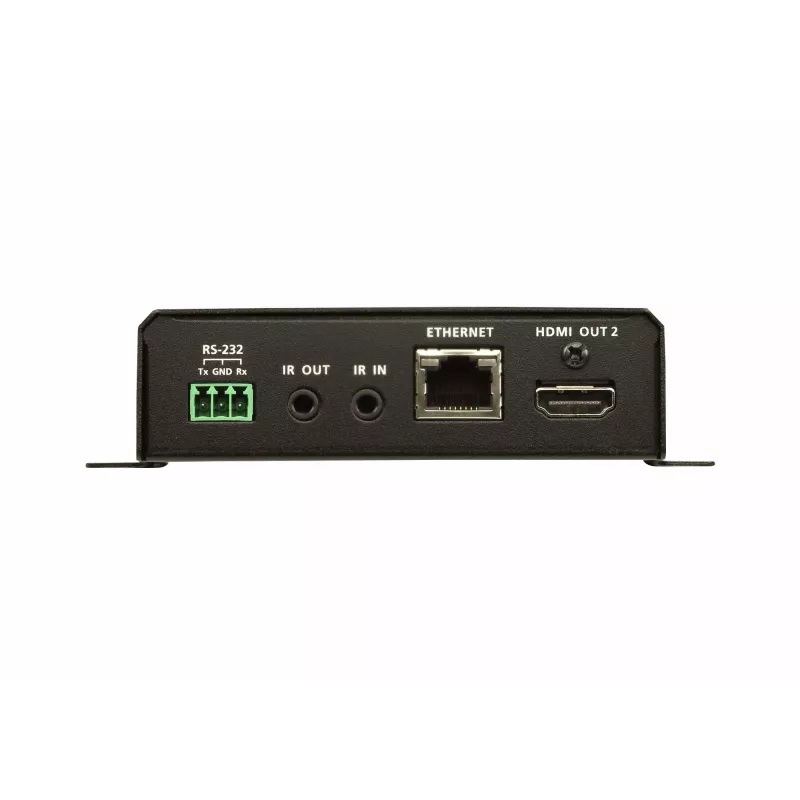

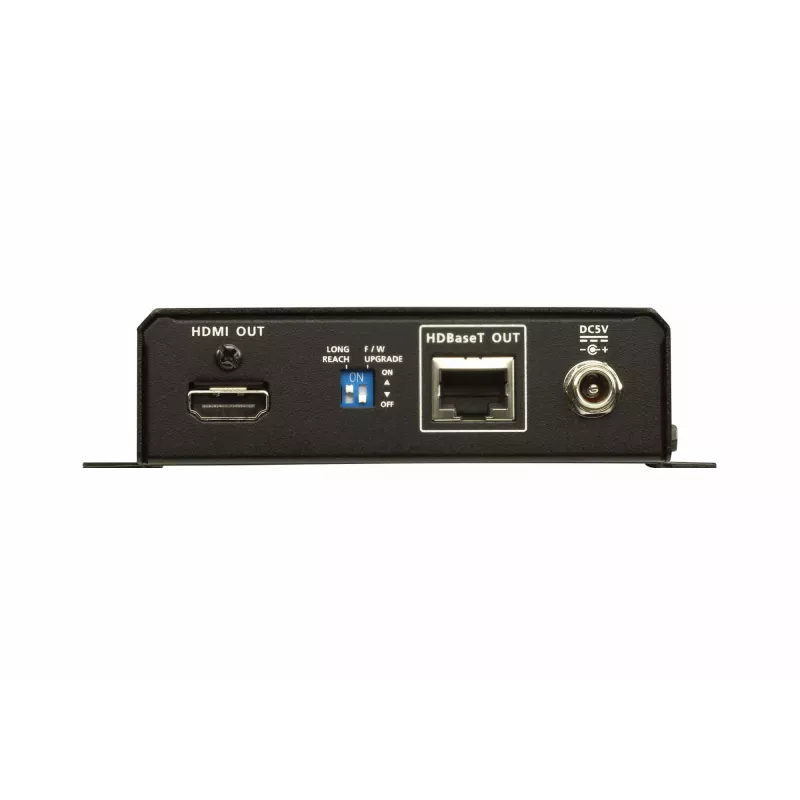

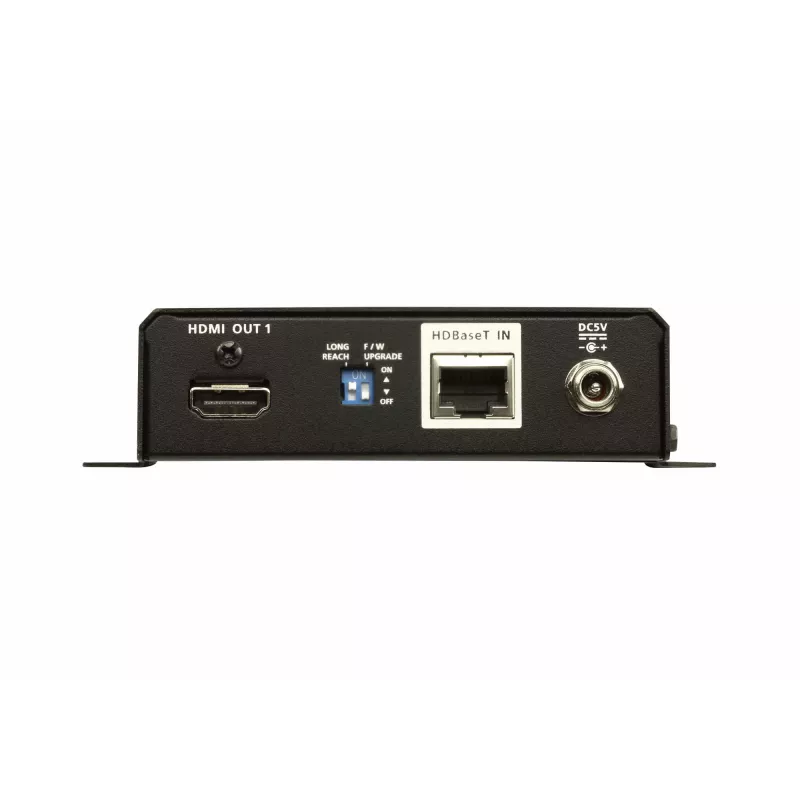

Connect the HDMI source to the VE814AT transmitter and link the transmitter and VE814AR receiver with a single Cat5e/6/6a or ATEN Cat6 cable up to 100 m. Connect the HDMI output(s) at the local and remote displays to the transmitter and receiver outputs as required. Attach the included IR transmitter/receiver cables and RS-232 terminal blocks if remote control or serial control is needed. Plug in the provided 5V power adapters to both units before powering on the system.

Recommendations

For best performance, use high-quality Cat6 or Cat6a cable and avoid runs near high-power electrical wiring. Verify source and display compatibility with HDCP 2.2 when transmitting protected 4K content. Keep cable length at or below 100 m to maintain full 4K performance.
