Phoenix 0800886 Τερματικό στοιχείο E/NS 35 N

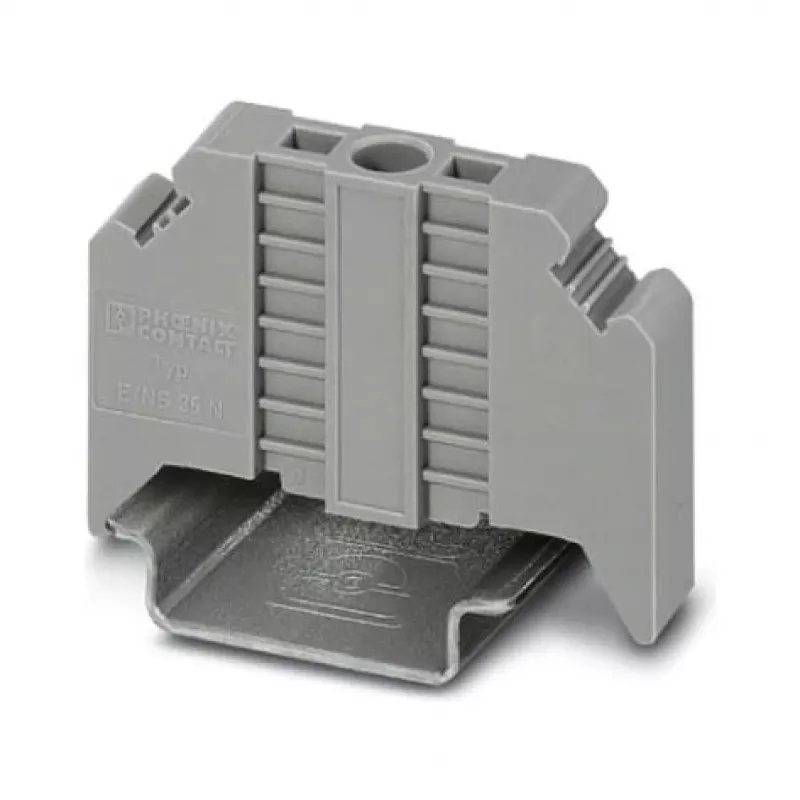

Terminal blocks on DIN rails often shift or slide, especially in high-vibration environments. The Phoenix 0800886 End Bracket E/NS 35 N locks them firmly in place, preventing movement and ensuring a stable, professional installation. This end stop is part of the CLIPFIX series and is designed for NS 35/7.5 and NS 35/15 DIN rails.

Who is it for

Electrical engineers, panel builders, and maintenance technicians who need reliable terminal block fixation in industrial control panels, machinery, and building automation systems. It's ideal for applications where vibration or thermal expansion could cause terminal blocks to drift.

Main features

• Secure end stop for terminal blocks on DIN rails
• Compatible with NS 35/7.5 and NS 35/15 rails
• Made of gray polyamide (PA) with UL 94 V0 flammability rating
• Wide operating temperature range: -60 °C to 105 °C

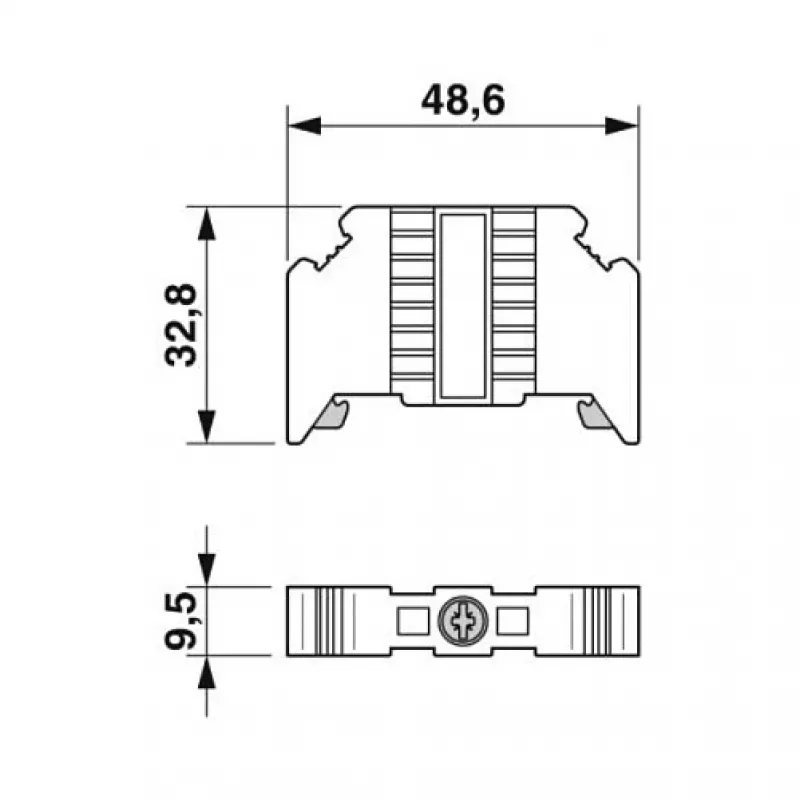

• Compact size: 9.5 mm width, 42.5 mm length, 35 mm height
• Lightweight at only 6.9 g
• Compliant with RoHS and REACH standards

Specifications

• Product type: End bracket / end stop
• Mounting type: DIN rail
• DIN rail compatibility: NS 35/7.5, NS 35/15
• Material: Polyamide (PA)
• Color: Gray
• Flammability rating: UL 94 V0
• Operating temperature: -60 °C to 105 °C
• Storage temperature: -60 °C to 105 °C
• Ambient temperature (assembly): -5 °C to 70 °C
• Insulating material group: I
• Standards/certifications: RoHS, REACH
• Manufacturer series: CLIPFIX
• Width: 9.5 mm
• Length: 42.5 mm
• Height (above DIN rail): 35 mm
• Weight: 6.9 g
• Application: Securing terminal blocks on DIN rails
• Number of positions: 1

Tips

Install one end bracket at each end of a terminal block row to prevent lateral movement. For longer rows, consider adding intermediate brackets every 10–15 terminal blocks to maintain alignment under vibration. Ensure the DIN rail is clean and free of debris before mounting for a secure fit.
