Οδηγός LED Qoltec 50945

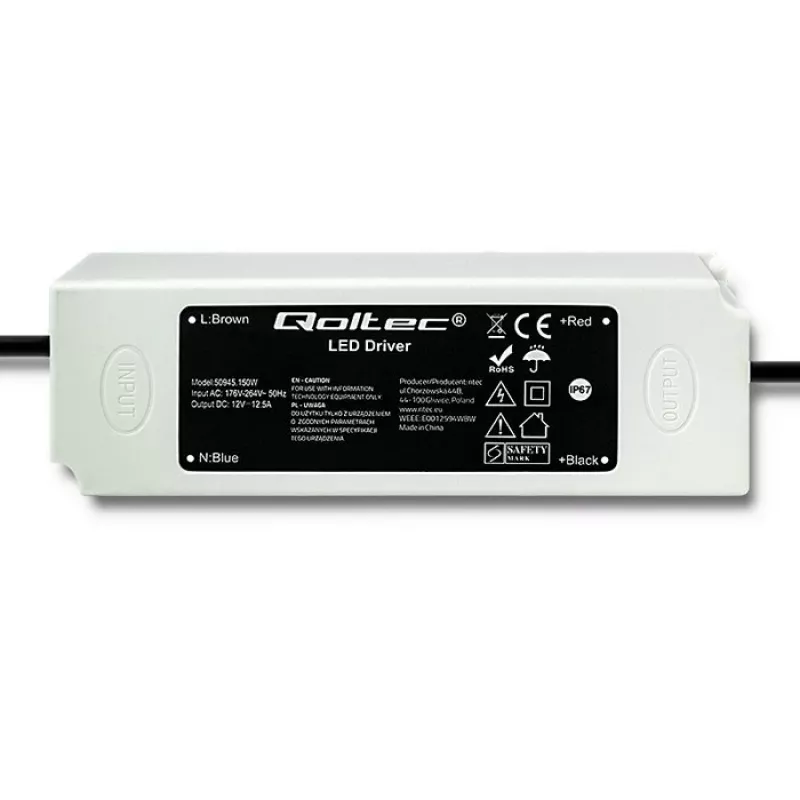

The Qoltec 50945 LED driver is a waterproof 12V DC power supply designed for powering LED strips, LED modules, panels, bulbs and other 12V devices. It provides 150 W output power, an IP67 protection rating against dust and water, and operates across a wide AC input range, making it suitable for indoor and outdoor installations where a compact, robust supply is required.

Advantages

The driver delivers a stable 12V DC output at up to 150 W and is rated IP67 for reliable protection in damp or dusty environments. It accepts an AC input voltage range of 175–264 V and a frequency of 47–63 Hz, and is specified to operate between −20 °C and 60 °C. Its compact dimensions (62 × 190 × 37 mm) allow installation in constrained spaces.

Suitable for

Key specifications

How to use

Mount the driver in a suitable location that complies with IP67 installation requirements. Connect the AC input to a compatible mains supply within 175–264 V and the DC output to the 12V LED load, respecting correct polarity. Ensure cables and connectors are rated for the current drawn by the LED load and secure all connections before powering on. Allow for adequate ventilation if installed in an enclosure and avoid exposing the driver to temperatures outside the specified −20 °C to 60 °C range.

Recommendations

For reliable operation, match the total LED load to the 150 W maximum output and avoid continuous operation at or above the maximum rating. Use appropriate IP67-rated cable glands and connectors for outdoor installations and follow local electrical safety regulations when installing the Qoltec 50945.
