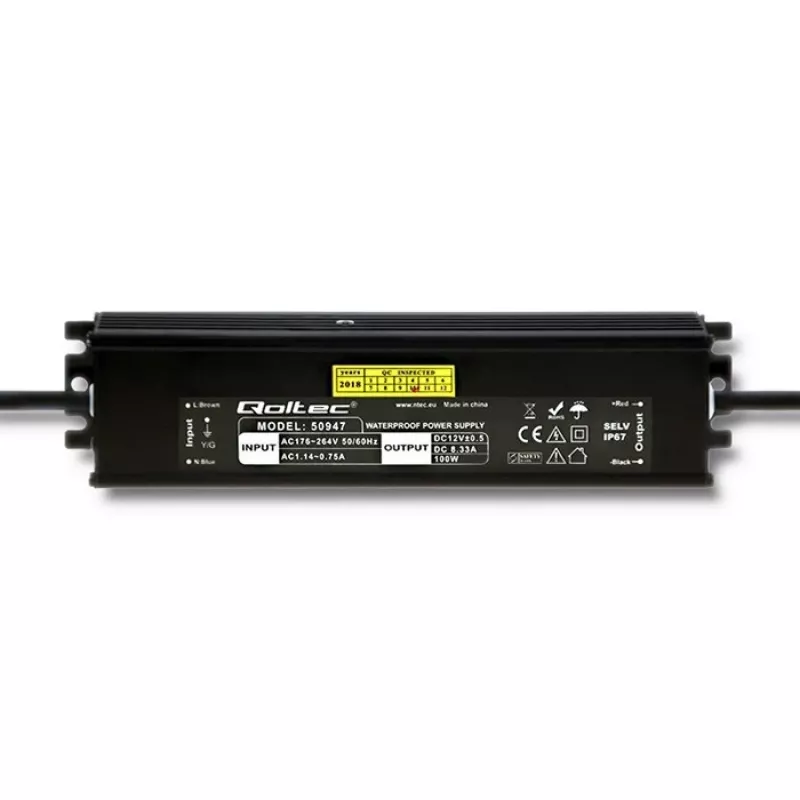

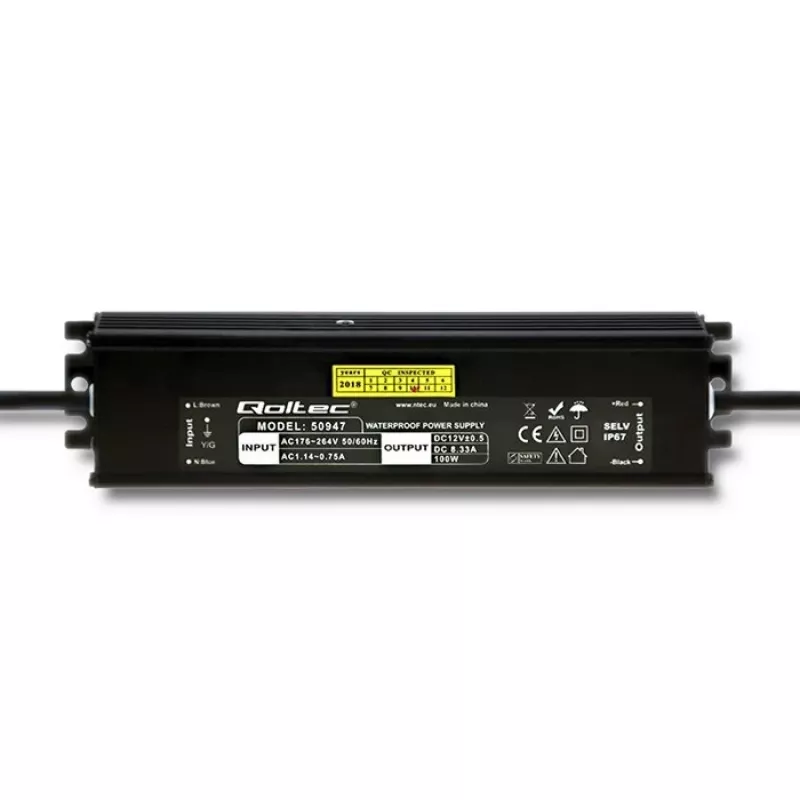

LED driver Qoltec 50947

Qoltec 50947 is a waterproof LED power supply designed to provide stable 12 VDC power for LED strips, modules, panels, bulbs and other 12V devices. The unit delivers a continuous output power of 100 W (12 V, 8.3 A) and features an IP67 rating for protection against dust and immersion, allowing use both indoors and outdoors. Its compact dimensions (220 × 50 × 32 mm) and light weight (645 g) make installation and handling straightforward, while the wide AC input range (170–264 V) ensures compatibility with different mains voltages.

Advantages

The Qoltec 50947 offers consistent 12 V output at up to 8.3 A for reliable operation of LED systems. The IP67 enclosure provides dust-tight protection and water resistance for outdoor or damp locations. Its compact form factor and modest weight simplify mounting in confined spaces. Wide AC input range increases compatibility with various electrical installations.

Suitable for

• Powering 12 V LED strips for indoor and outdoor lighting
• Supplying LED modules and panels in residential or commercial projects
• Driving 12 V LED bulbs and small 12 V electronic devices
• Use in gardens, facades, signage and damp environments

Key specifications

• Model: Qoltec 50947
• Output voltage: 12 VDC
• Output current: 8.3 A
• Output power: 100 W
• Input voltage (AC): 170–264 V
• IP rating: IP67 (waterproof and dustproof)
• Dimensions: 220 × 50 × 32 mm
• Weight: 645 g
• Brand: QOLTEC
• EAN: 5901878509471

How to use

Install the power supply on a stable surface using appropriate fasteners, ensuring adequate ventilation and protection from direct mechanical damage. Connect the AC mains (170–264 V) to the AC input terminals following local electrical codes; then connect the 12 VDC output to the LED device, observing correct polarity. Verify connections before powering up and test the system at low load before full operation.

Recommendations

For reliable long-term performance, avoid placing the unit submerged for extended periods and ensure cable entries are sealed. Select a power supply capacity that leaves a safety margin (recommend using at most 80–90% of rated power for continuous loads).
