Ντίζα Fischer RG M 10 τεμ.

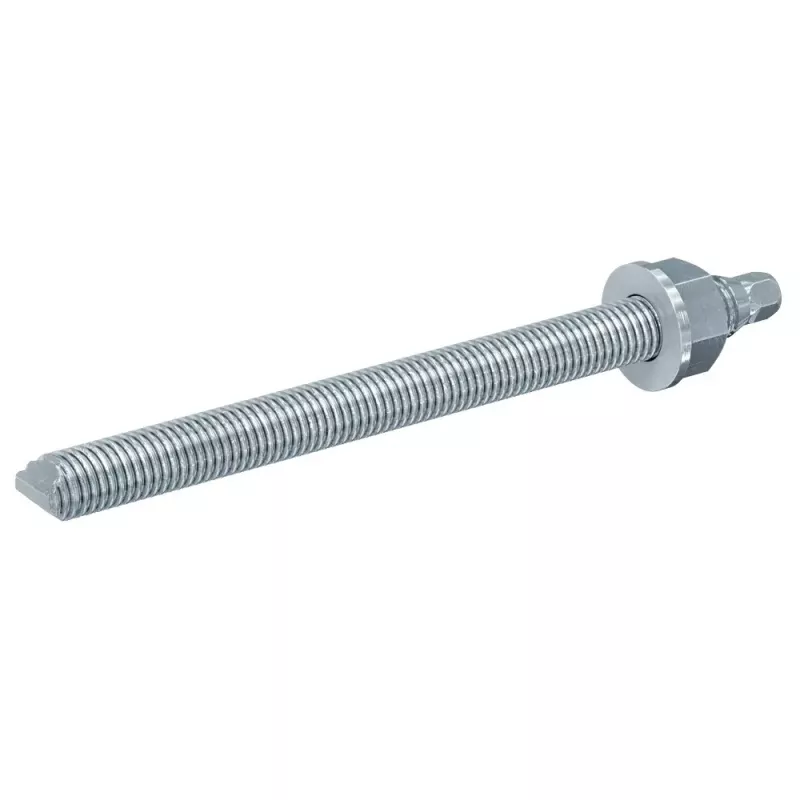

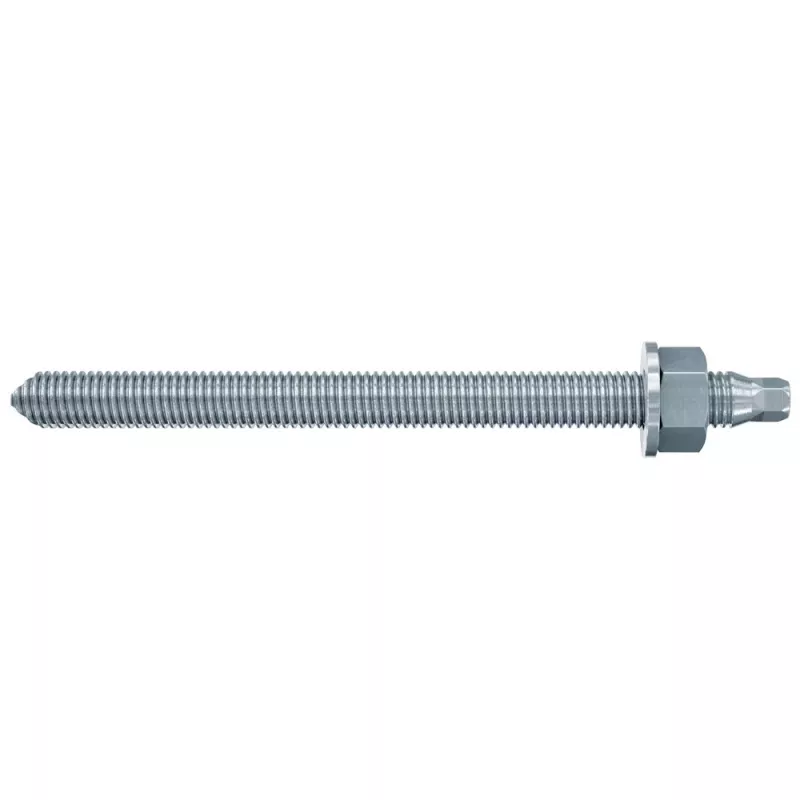

The Fischer rod anchor RG M is a steel threaded anchor intended for use in concrete and masonry. Manufactured from zinc-plated steel with strength grade 5.8, the anchor is supplied as a systems accessory for use with Fischer mortar capsules or injection mortars. The product is sold in a pack of 10 and is suitable for secure fixings in construction and renovation projects.

Advantages

The RG M anchor combines corrosion-protected zinc plating with a 5.8 steel grade for consistent mechanical performance. It is compatible with Fischer pre-portioned mortar capsules and with injection mortars, allowing flexible installation methods depending on project scale. The design and materials provide reliable load transfer in concrete and masonry substrates when installed according to manufacturer instructions.

Suitable for

• Fixing machines and equipment to concrete
• Anchoring steelwork and supports
• Securing supporting feet and base plates indoors
• General construction and renovation fastenings in concrete and masonry

Key specifications

• Brand: FISCHER
• Model: RG M
• Material: Zinc-plated steel, grade 5.8
• Pack quantity: 10 pieces
• Drill hole diameter (recommended): 1.8 cm
• MPN: 50288
• EAN: 4006209502884

How to use

When installing with Fischer pre-portioned mortar capsules, insert the anchor rod into the drilled hole together with the capsule and set it by rotating and striking with a hammer drill; the capsule will break and the mortar compound will mix and cure, securing the anchor. When using injection mortar, inject the resin according to the mortar manufacturer instructions, then push the anchor rod into the hole while lightly rotating it to ensure full coverage of the anchor shank by the resin. Follow the mortar and anchor spacing, embedment depth, and curing times specified by the mortar and Fischer system documentation.

Recommendations

Use the Fischer RG M anchor only in suitable base materials (concrete, solid masonry) and follow the system instructions for drill diameter, embedment depth and curing time. For safety-critical or high-load applications, consult Fischer technical data sheets and design guidelines to select appropriate anchor size, spacing and installation method.
