Μονάδα πομποδέκτη SFP BlueOptics 500SSM40 R0001-BO 155 Mbit/s

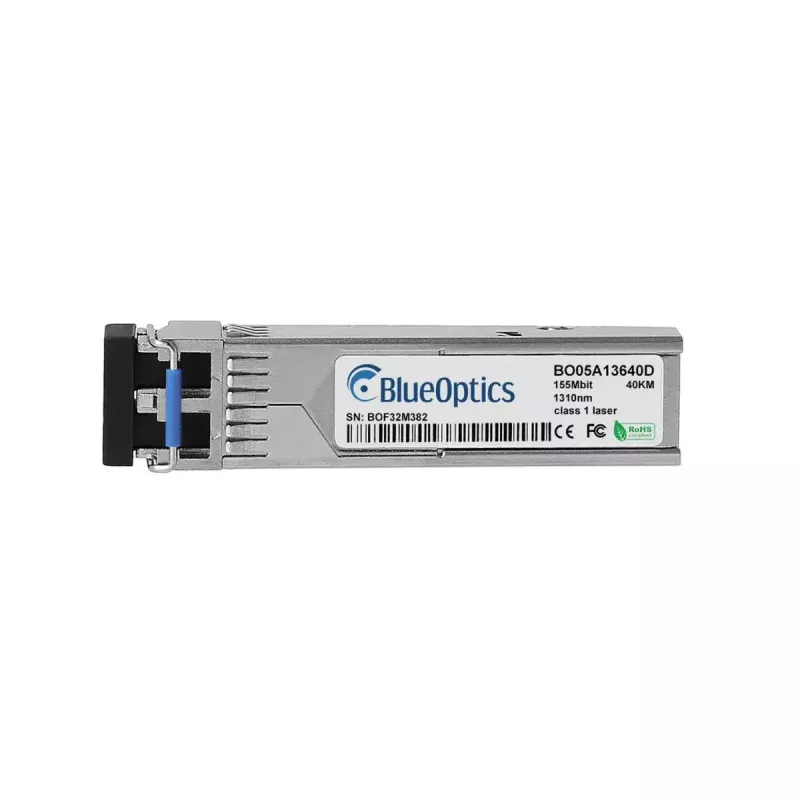

The BlueOptics 500SSM40 R0001-BO SFP transceiver module is a compact fiber optic interface designed for synchronous network links with a maximum data transfer rate of 155 Mbit/s. Housed in a small-form pluggable (SFP) metal enclosure in silver, this module supports single-fiber connections using an LC (UPC) connector and is intended for long-reach applications up to 40,000 meters. With a rated mean time between failures (MTBF) of 1,000,000 hours and a lightweight build of 20 g, it provides a predictable, space-efficient optical option for network equipment with SFP ports.

Advantages

This SFP transceiver offers a standardized SFP form factor for hot-pluggable installation, a stable 155 Mbit/s data rate suitable for legacy and niche synchronous links, and an LC (UPC) fiber connector for reliable optical mating. The silver metal housing contributes to mechanical robustness and effective shielding, while the low weight and long MTBF make the module suitable for dense installation environments and continuous operation.

Suitable for

• Long-reach fiber links up to 40 km
• Network devices with SFP uplink slots (switches, routers, media converters)
• Legacy synchronous transmission applications at 155 Mbit/s
• Deployments requiring LC (UPC) fiber terminations

Key specifications

• Form factor: SFP (Small Form-factor Pluggable)
• Maximum data transfer rate: 155 Mbit/s
• Maximum transfer distance: 40,000 m (40 km)
• Fiber optic connector: LC (UPC)
• Product colour: Silver
• Weight: 0.02 kg
• Reliability: MTBF 1,000,000 hours

How to use

Ensure the host device supports SFP modules and is powered off or in a state recommended by the vendor for hot-plugging. Align the module with the SFP cage and insert it until it latches; if the host supports hot-swapping, insertion can be performed while powered. Connect the LC (UPC) fiber cable to the transceiver, observing proper fiber handling and connector cleanliness. Configure the network device for the required synchronous link settings at 155 Mbit/s and verify link status and signal levels through the host management interface.

Recommendations

Maintain clean LC connectors and use dust caps when the transceiver is not connected. For reliable long-distance links, use single-mode fiber with appropriate attenuation budgets and verify compatibility with the host device's SFP module list. Avoid mechanical stress on the fiber and ensure proper thermal conditions to match the transceiver's operating range.
