Θήκη σύνδεσης Conceptronic DONN32B 14 σε 1 USB 3.2 Gen 1 HDMI DP

The Conceptronic DONN32B 14-in-1 USB 3.2 Gen 1 HDMI DP docking station expands a workstation with multiple video outputs, high-speed data ports and wired network access. It supports triple extended displays on Windows using HDMI and DisplayPort at up to 4K@60Hz, provides five high-speed USB ports (2 × USB-C, 3 × USB-A) with 5 Gbps transfer rates, SD and TF card readers supporting UHS-I speeds, a Gigabit Ethernet port for 1000 Mbps wired connectivity, and a 3.5 mm combo audio jack. The aluminium housing improves heat dissipation and the unit includes a built-in security slot. Power Delivery up to 100 W lets you charge a connected laptop while using the dock.

Advantages

The docking station delivers multi-monitor support for increased productivity, multiple USB ports for peripherals and fast file transfers, and a reliable Gigabit Ethernet connection for stable network access. Its metal casing enhances thermal performance and durability, while Plug and Play operation requires no additional drivers for most systems. Integrated SD and TF card readers and a 3.5 mm audio jack add convenient media and audio connectivity.

Suitable for

• Office workstations requiring multiple external monitors
• Content creators who need 4K video output and fast data transfer
• Remote workers needing stable wired Ethernet and peripheral expansion
• Users who want to charge a laptop via USB Power Delivery while connected to multiple devices

Key specifications

• Model: Conceptronic DONN32B
• Ports: 2 × HDMI, 1 × DisplayPort, 2 × USB-C, 3 × USB-A (USB 3.2 Gen 1 / 5 Gbps)
• Card readers: SD and TF (UHS-I up to 104 MB/s)
• Ethernet: Gigabit Ethernet (1000 Mbps)
• Audio: 3.5 mm combo jack
• Power Delivery: up to 100 W
• Material and colour: aluminium housing, grey/silver
• Weight: 0.22 kg

How to use

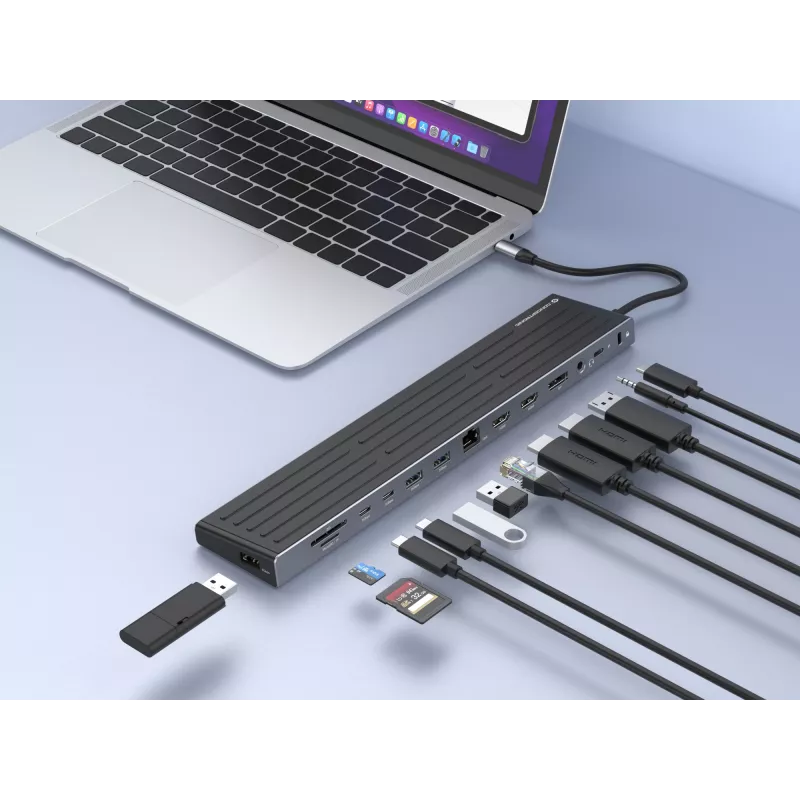

Connect the docking station to your laptop using the provided USB-C cable (or the appropriate host cable). Attach external displays to the HDMI and DisplayPort outputs and connect peripherals to the USB-A and USB-C ports. Insert SD or TF cards into the corresponding card slots to access media files. For wired network access, connect an Ethernet cable to the Gigabit RJ-45 port. If required, attach headphones or a headset to the 3.5 mm combo jack. The dock supports Plug and Play on most systems; verify display settings in your operating system to arrange extended or mirrored screens.

Recommendations

For optimal multi-monitor performance on Windows, use a combination of HDMI and DisplayPort outputs as described in the product documentation and ensure your laptop’s USB-C port supports DisplayPort Alt Mode and sufficient power delivery if you require laptop charging through the dock.
