Μονάδα πομποδέκτη SFP+ BlueOptics 3FE62600EA-BO 10000 Mbit/s

The BlueOptics 3FE62600EA-BO is an SFP+ fiber optic transceiver module designed for high-speed data transmission up to 10000 Mbit/s. The module uses an SFP+ interface with an LC duplex connector and a robust metal housing in silver finish. It is compatible with 10GBASE-LR optical links over single-mode fiber and is engineered for long operational lifetimes with an MTBF of 1,000,000 hours and a compact weight of 0.02 kg.

Advantages

The transceiver offers support for 10 Gbit/s Ethernet and related high-speed protocols over single-mode fiber, with LC duplex connection according to MSA specifications to ensure mechanical and electrical interoperability. Its metal housing provides mechanical durability and thermal stability, while the documented MTBF supports long-term deployments. The module is lightweight and easy to install in compatible SFP+ ports.

Suitable for

• 10 Gbit/s Ethernet links over single-mode fiber
• Long-reach connections up to the supported 10 km class for 10GBASE-LR
• Integration into switches, routers, storage systems and other network devices with SFP+ ports
• Environments requiring MSA-compliant transceiver modules and LC duplex connectors

Key specifications

• Interface type: SFP+
• Maximum data transfer rate: 10000 Mbit/s (10 Gbit/s)

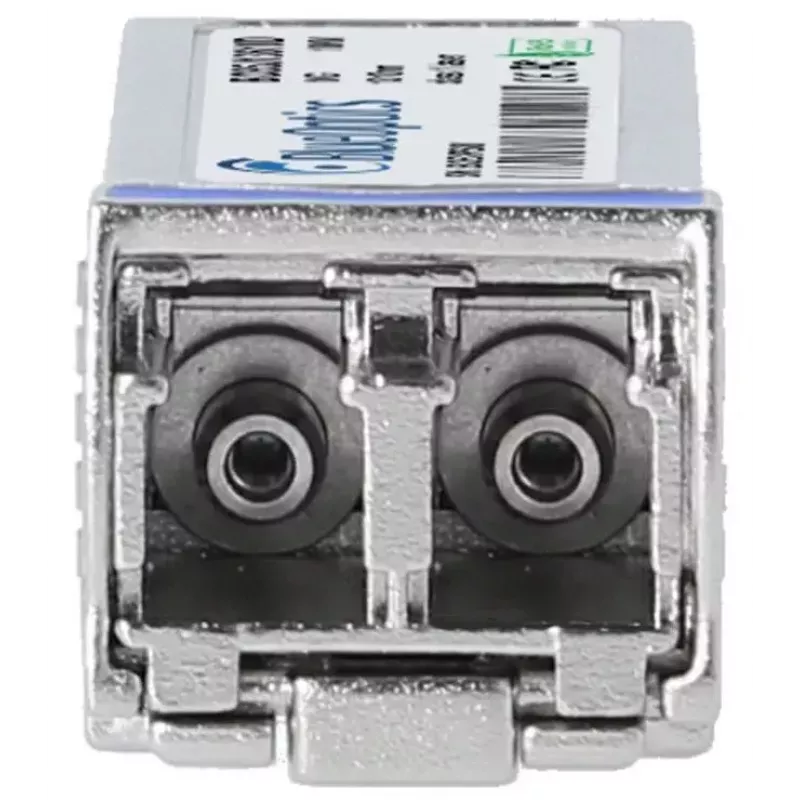

• Connector: LC duplex (single-mode fibre)
• Form factor: SFP+ transceiver module
• Housing material and colour: metal, silver
• Weight: 0.02 kg
• Mean Time Between Failures (MTBF): 1,000,000 hours

How to use

Install the BlueOptics 3FE62600EA-BO into a compatible SFP+ slot on a switch, router or other network device while the device is powered down or following the vendor’s hot-swap guidelines. Connect an LC duplex single-mode patch cable between transceivers at both ends of the link. Verify link status and negotiated speed via the host device management interface. If digital diagnostics (DDM/DOM) are available and supported by the host, monitor optical parameters such as supply voltage, transmit power and receive power for ongoing maintenance.

Recommendations

Ensure the host device officially supports third‑party SFP+ modules or provides an option to enable compatibility. Use single‑mode LC duplex patch cords rated for 10GBASE-LR, maintain clean connector endfaces, and follow ESD precautions during handling. Check that the transceiver’s diagnostic functions are supported by the system firmware before relying on DDM/DOM values for troubleshooting.
