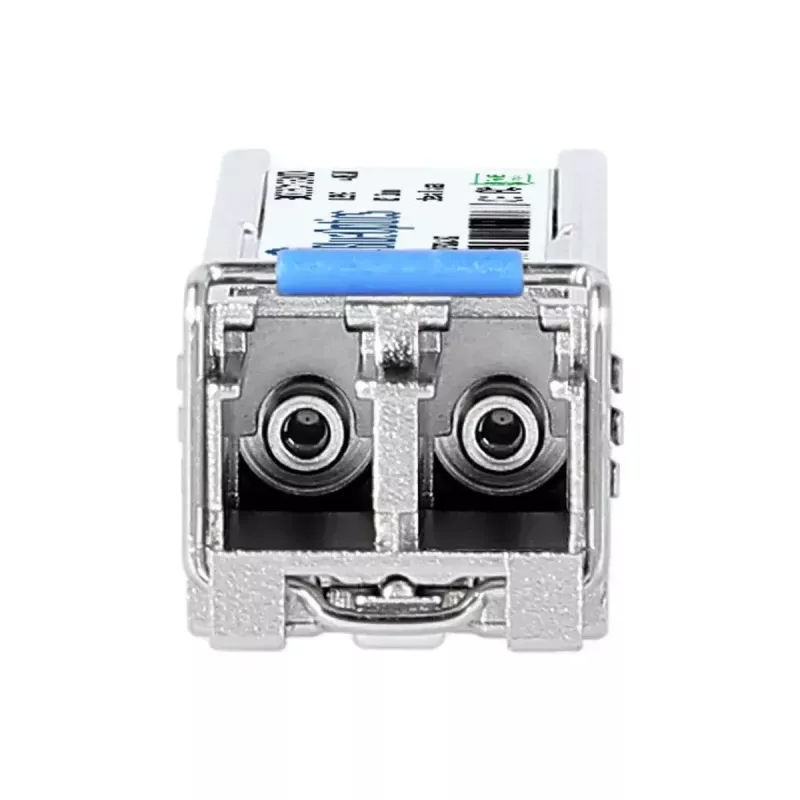

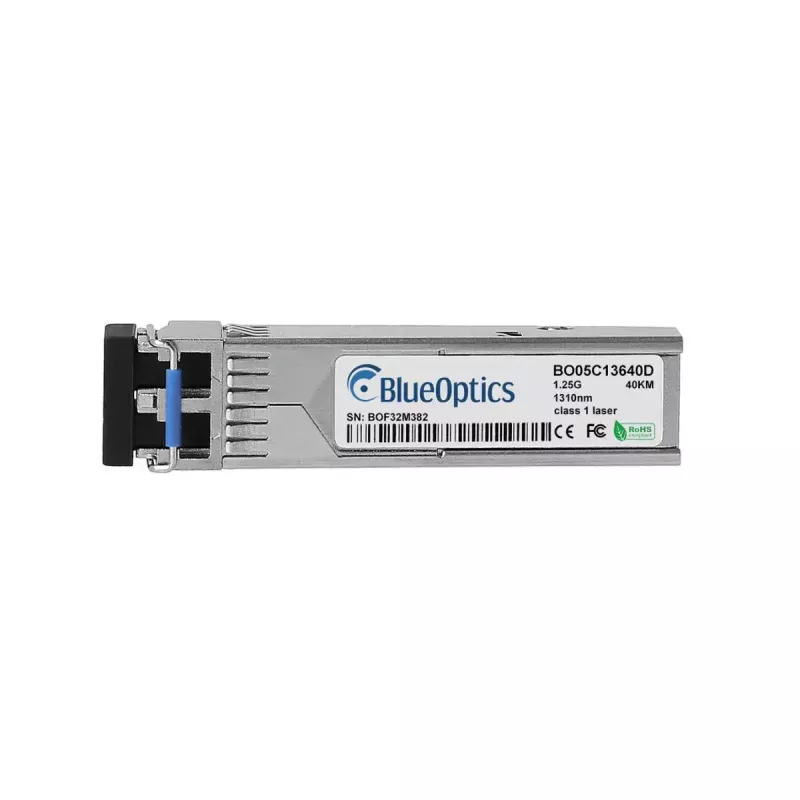

Μονάδα πομποδέκτη SFP BlueOptics 2682510000-BO 1250 Mbit/s

The BlueOptics 2682510000-BO SFP transceiver module is a compact fiber optic module designed for 1.25 Gigabit Ethernet links with a maximum data transfer rate of 1250 Mbit/s. Housed in a silver metal enclosure and weighing approximately 20 g, this SFP module supports single‑fiber connections via an LC connector and is specified for link distances up to 40,000 m. With a mean time between failures (MTBF) of 1,000,000 hours, the module is intended for use in network media converters, switches and other networking equipment that accept standard SFP form factor transceivers.

Advantages

The module combines a standard SFP form factor and LC fiber connector for broad compatibility with networking equipment. Its compact silver housing and low weight make it easy to install and hot‑swap in populated chassis. The specified 1250 Mbit/s throughput and 40 km maximum transfer distance allow deployment in metropolitan and long‑reach fiber links. A high MTBF rating indicates expected long operational life and reduced maintenance frequency.

Suitable for

• Extending Ethernet links over single‑mode fiber in campus and metro networks
• Connecting media converters to switches and routers that accept SFP transceivers
• Replacing or upgrading existing SFP ports where LC connector and 1.25 Gbit/s support are required
• Long‑reach point‑to‑point fiber links up to 40 km

Key specifications

• Data transfer rate: 1250 Mbit/s (1.25 Gbit/s)
• Maximum transfer distance: 40,000 m (40 km)
• Interface type: 1.25 Gigabit Ethernet (SFP form factor)
• Fiber connector: LC
• Product colour: Silver
• Weight: 0.02 kg
• Reliability: MTBF 1,000,000 hours

How to use

Insert the BlueOptics SFP transceiver into a compatible SFP port on a switch, router or media converter while the host device is powered according to the equipment manufacturer's hot‑swap guidelines. Connect a single‑mode fiber cable with LC connectors to the transceiver, observing correct transmit/receive orientation. Confirm link status via the host device management interface and verify negotiated speed and signal quality. If required, configure interface settings on the host device to match network parameters.

Recommendations

Use single‑mode fiber cables rated for the intended distance and install appropriate surge protection and grounding where long external fiber runs are present. Ensure firmware and driver compatibility with the host device and test link integrity after installation. Store spare modules in anti‑static packaging and avoid exposure to extreme temperatures or mechanical shock.
