Μονάδα πομποδέκτη οπτικών ινών BlueOptics 407-10464-BO SFP+ 10000 m

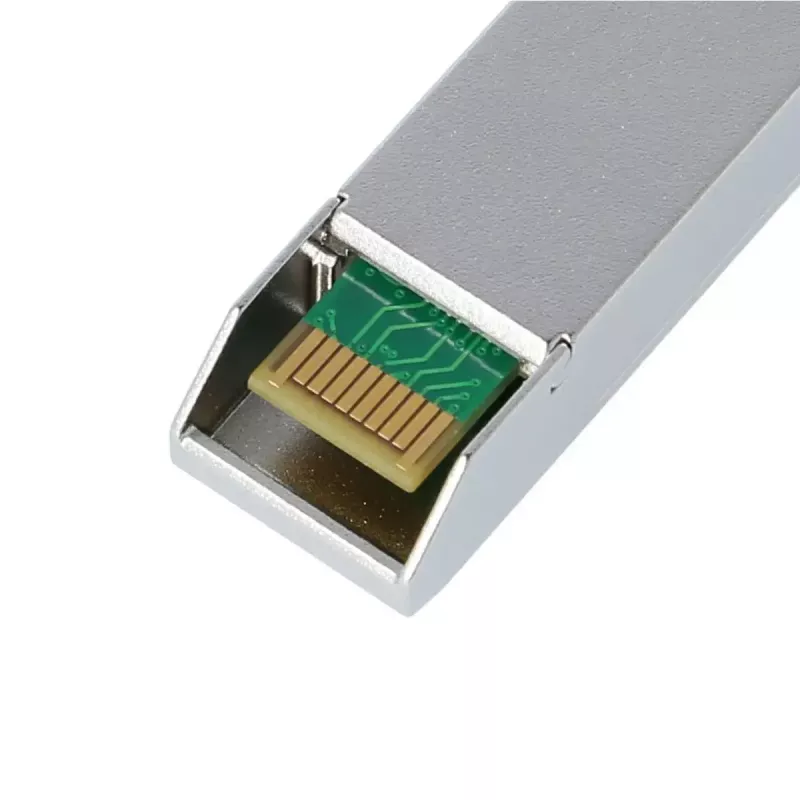

The BlueOptics 407-10464-BO SFP+ 10000 m is a fiber optic transceiver module designed for 10 Gigabit optical links over single-mode fiber. Housed in an aluminium casing and weighing approximately 20 g, the module provides a long-range optical interface for network equipment that accepts SFP+ form-factor transceivers. It uses LC duplex connectivity and supports optical transmission distances up to 10,000 meters, enabling high-speed links between switches, routers and storage devices.

Advantages

The transceiver is engineered to meet MSA SFP+ mechanical and electrical specifications, providing interoperability with major networking platforms that support 10GBASE-LR SFP+ modules. Its aluminium construction offers a balance of durability and thermal dissipation while keeping the unit lightweight. Designed for single-mode fiber, the module transmits and receives at 1310 nm wavelength and supports high data rates typical for 10 Gbps Ethernet and related protocols. Integrated digital diagnostic monitoring (DDM/DOM) capability enables remote readout of operational parameters where the host hardware supports this function.

Suitable for

• Long-distance 10 Gbps Ethernet links over single-mode fiber
• Connections between core and aggregation switches or between sites up to 10 km apart
• Storage networking and SAN uplinks requiring SFP+ interfaces
• Optical uplinks in routers, load balancers and compatible network appliances

Key specifications

• Form factor: SFP+
• Maximum transmission distance: up to 10,000 m on single-mode fiber
• Connector type: LC duplex
• Wavelength: 1310 nm (transmit and receive)
• Supported data rate: 10 Gbps class (10GBASE-LR applications)
• Housing material and colour: aluminium (silver/metallic)
• Weight: approx. 20 g
• Digital diagnostic monitoring (DDM/DOM): supported when enabled by host hardware

How to use

Install the BlueOptics SFP+ module into an SFP+ slot of compatible network equipment following the device manufacturer’s hot-plug guidance. Use LC duplex single-mode patch cords or pigtails to connect the module to the fiber infrastructure, ensuring correct transmit-to-receive orientation. Verify link status and data rate on the host device; if DDM/DOM is available and enabled, check diagnostic parameters such as supply voltage, temperature and optical power through the equipment management interface. Follow any vendor-specific firmware or compatibility notes for optimal operation.

Recommendations

For reliable long-range performance, use single-mode fiber and quality LC duplex patch cords, keep connectors clean and compliant with industry cleaning procedures, and confirm that the target device supports 10GBASE-LR SFP+ modules and DDM/DOM if diagnostics are required.
