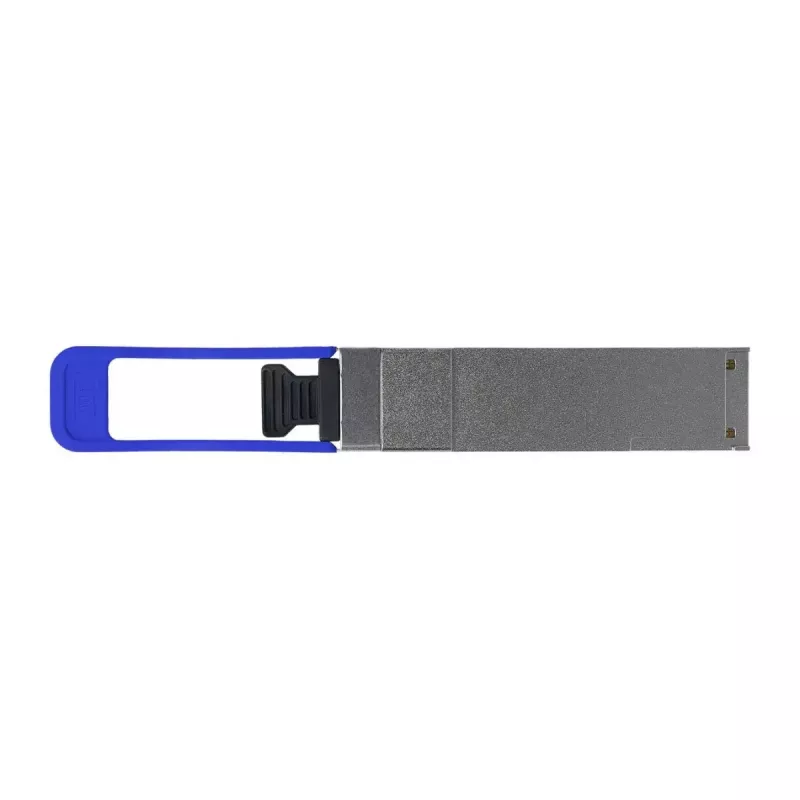

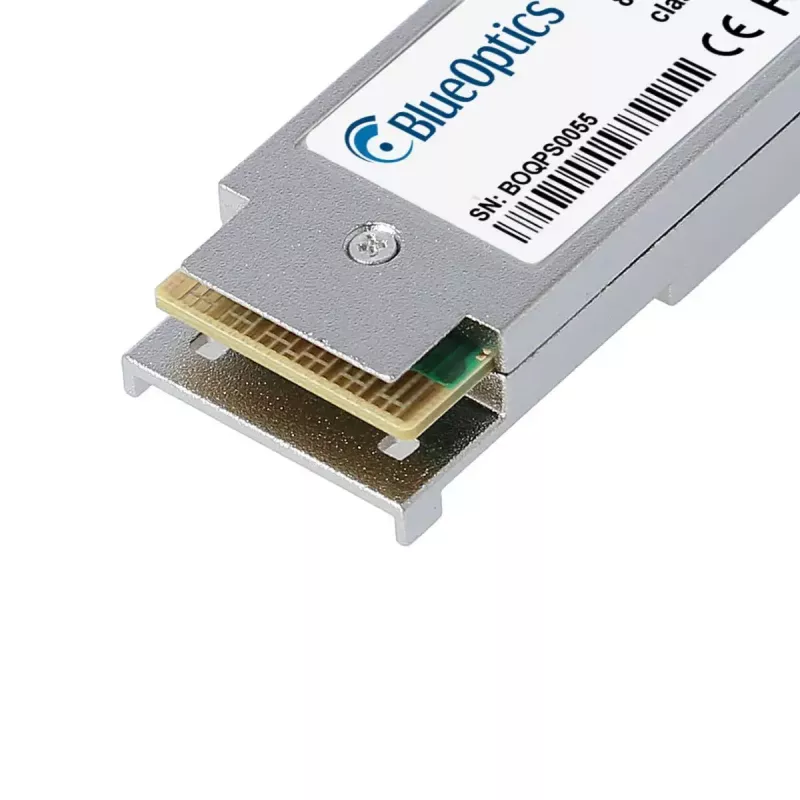

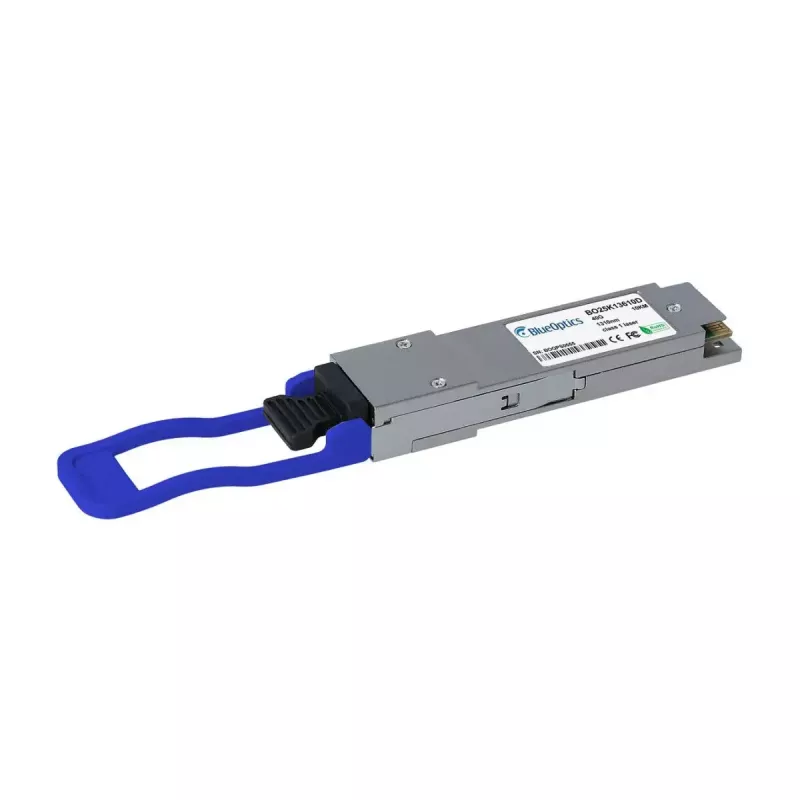

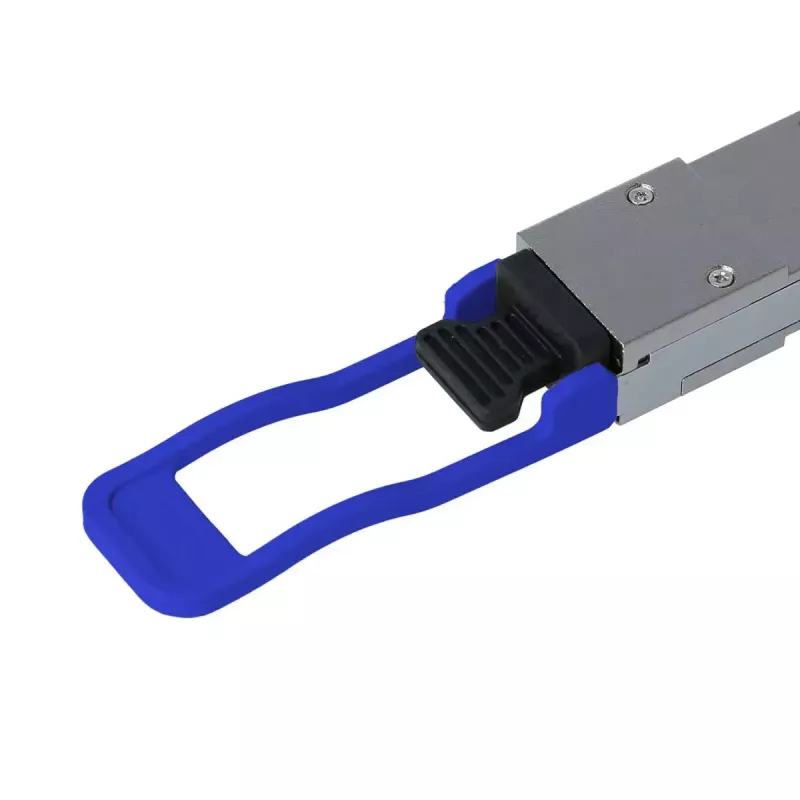

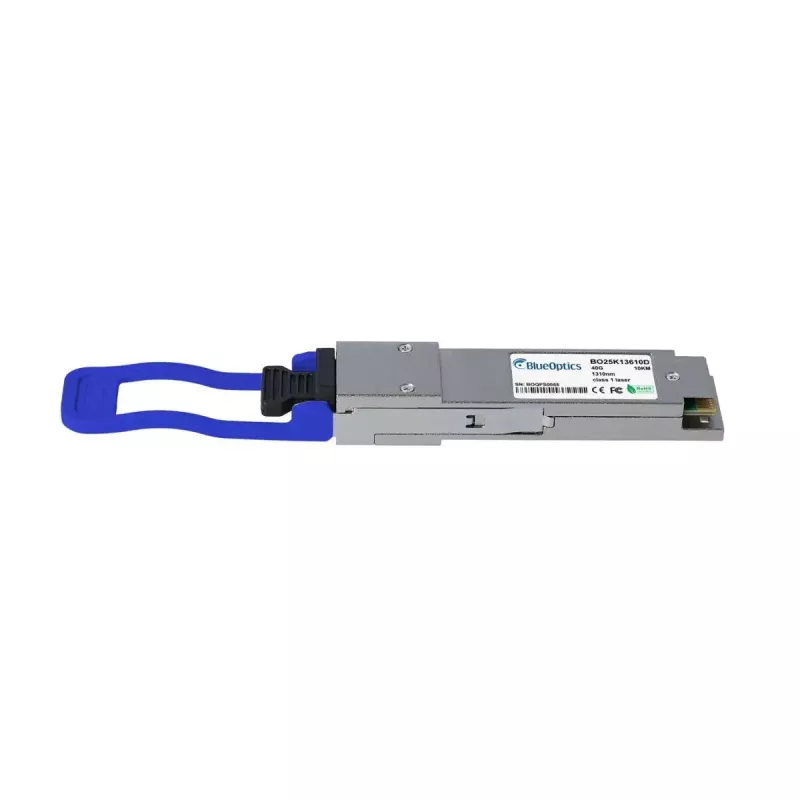

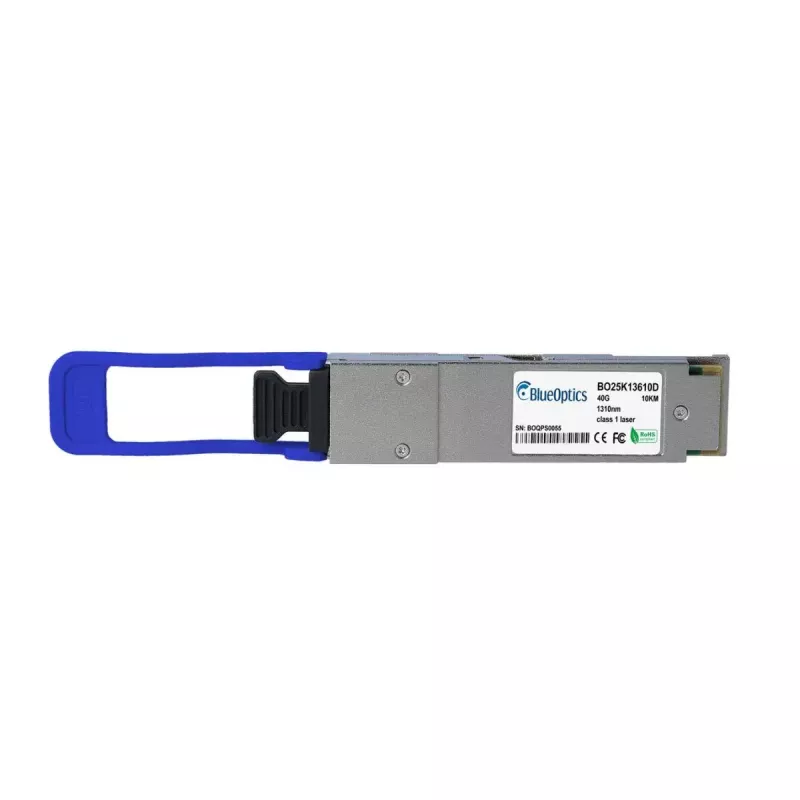

Μονάδα πομποδέκτη QSFP BlueOptics 00D6222-LE-BO CWDM υποδοχή LC

The BlueOptics 00D6222-LE-BO is a QSFP transceiver module designed for high-speed optical links. It implements the 40GBASE-LR4 type transmission over single‑mode fiber with CWDM multiplexing and an LC duplex fiber interface, providing up to 40 Gbit/s data throughput and long-reach connectivity in data center and enterprise networks. The module is compact and lightweight (approx. 20 g) and follows QSFP MSA mechanical and electrical specifications to ensure physical interoperability with compatible equipment.

Advantages

This QSFP transceiver supports CWDM channels for LR4 single‑mode transmission and uses an LC duplex connector for simultaneous send and receive channels. It is manufactured to MSA-aligned standards to match the mechanical and electrical interface of widely used QSFP ports. The module's form factor and low weight simplify installation and replacement in switches, routers and storage systems while supporting common high-speed protocols up to 40 Gbit/s.

Suitable for

• 40 Gbit/s Ethernet links in data center spine and leaf switches
• Fibre Channel over Ethernet and SAN interconnects requiring 40G LR4 optics
• Long‑reach single‑mode optical links up to several kilometers within campus and metropolitan networks
• High‑density network equipment that accepts QSFP transceivers with LC duplex interfaces

Key specifications

• Form factor: QSFP (Quad Small Form‑Factor Pluggable)
• Transmission type: 40GBASE‑LR4 with CWDM multiplexing
• Fiber type: single‑mode fiber (SMF)
• Connector: LC duplex
• Supported data rate: up to 40 Gbit/s
• Weight: approximately 0.02 kg
• Color: grey (housing)

How to use

Insert the QSFP transceiver into a compatible QSFP port following the host equipment manufacturer’s hot‑swap and grounding procedures. Connect LC duplex single‑mode fiber patch cords to the module’s LC connectors, ensuring correct transmit/receive alignment. Verify link status and protocol configuration on the connected devices; the transceiver supports standard 40G protocols and will negotiate according to the host hardware and firmware. Follow the equipment vendor’s instructions when enabling or disabling digital diagnostic monitoring if supported.

Recommendations

For reliable operation, use single‑mode LC patch cords and maintain proper fiber cleanliness. Confirm compatibility with the target switch, router or storage platform and verify that firmware or port settings allow third‑party QSFP modules. Use digital diagnostics monitoring (DDM/DOM) if the host supports it to monitor supply voltage, laser bias current, output and received power, and temperature for remote troubleshooting.
