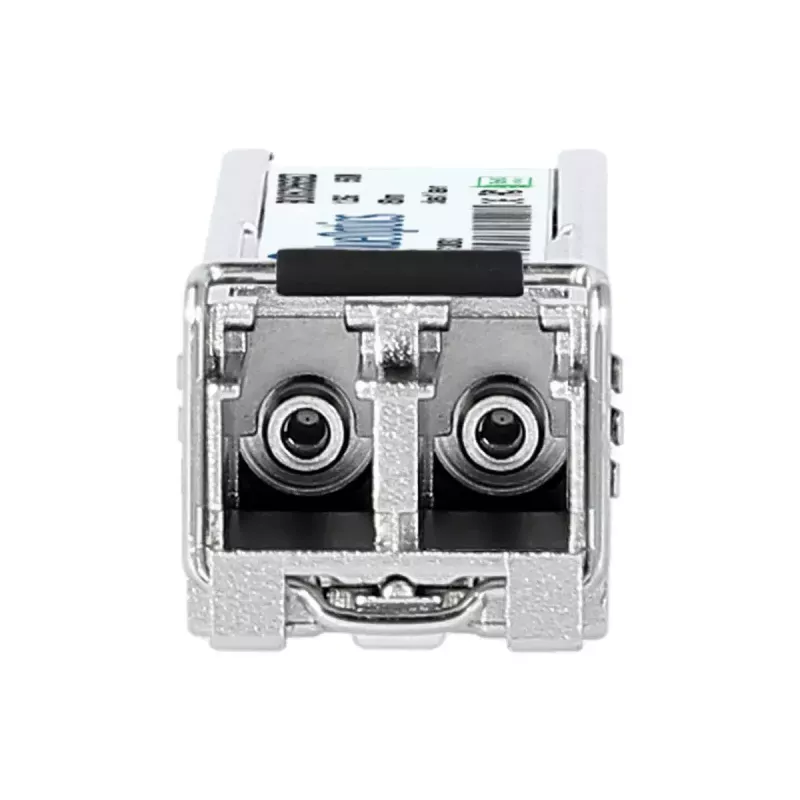

Μονάδα πομποδέκτη οπτικής ίνας BlueOptics LC-MM-SFP-BO Αλουμίνιο

The BlueOptics LC-MM-SFP-BO Aluminium is a compact SFP fiber optic transceiver module designed for 1000Base-SX multimode applications. It uses an LC duplex connector and an SFP interface to provide reliable optical links over short to medium distances. Constructed with an aluminium housing and weighing approximately 20 g, the module is suited for installation in switches, routers and storage systems that support SFP optical transceivers.

Advantages

The module supports 1.25 Gbps data rates using 850 nm transmit and receive wavelengths optimized for multimode fiber, delivering stable optical performance in everyday networking environments. Its aluminium casing offers mechanical durability and thermal stability while maintaining a lightweight profile. The BlueOptics unit is engineered to conform to common MSA form factors and standards, promoting broad compatibility with equipment from multiple vendors. Digital diagnostic monitoring (DDM/DOM) support enables real-time monitoring of parameters such as optical power and temperature when the host hardware supports that feature.

Suitable for

Key specifications

How to use

Insert the SFP transceiver into a compatible SFP port on your network device until it clicks into place, then connect an LC duplex multimode fiber patch cable to the transceiver. Ensure the host device supports 1000Base-SX SFP modules and enable any required software or firmware settings for third-party transceivers if applicable. If your hardware supports digital diagnostics, use the management interface to view real-time transceiver parameters such as optical power and temperature. Remove the module by disengaging the retention mechanism and gently pulling the transceiver out of the port.

Recommendations

For optimal performance, pair the transceiver with quality multimode fiber (OM3/OM4 as appropriate for distance) and LC duplex patch cords, maintain clean fiber connectors, and verify compatibility with the host device. Observe electrostatic discharge (ESD) precautions during handling and store unused transceivers with protective caps to prevent contamination.
