Μονάδα Keystone EFB Elektronik E-20072 επίπεδη ασημί RJ-45

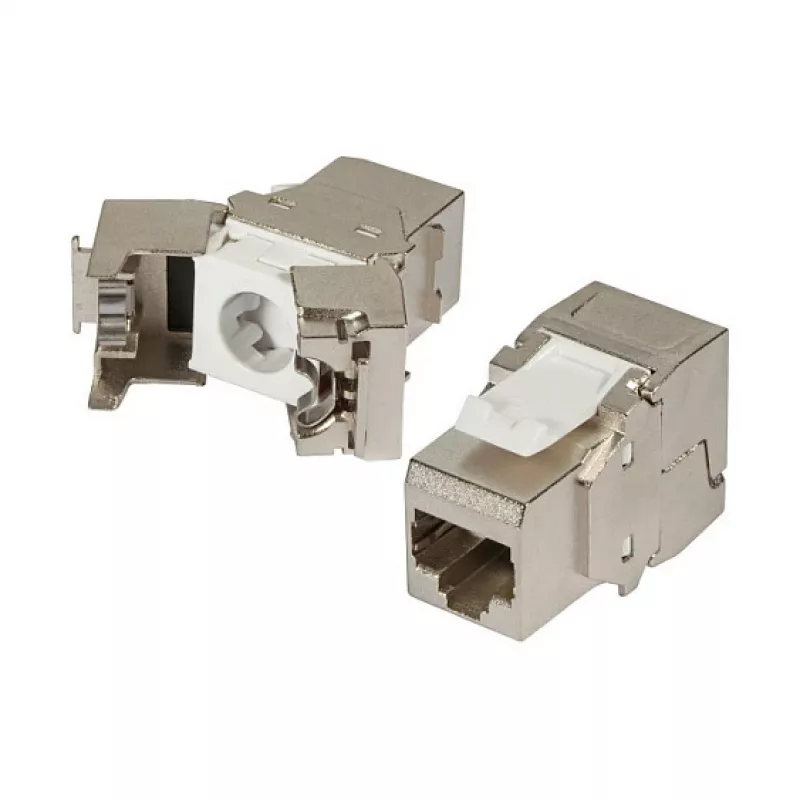

Shielded keystone jack with a zinc diecast body and a separate dust cap designed for use in structured cabling systems. The compact cable presorter supports conductor sizes AWG 24/1 to AWG 22/1 and provides pair management following TIA 568A/B colour codes. The jack supports Power over Ethernet (PoE) and PoE+ according to IEEE 802.3af/at and is suitable for installation in distribution panels and frames with a keystone opening (not compatible with UAE outlets). A strain relief with cable ties is included to secure the cable.

Advantages

The shielded zinc diecast body offers enhanced EMI protection and mechanical durability while the separate dust cap keeps the contact area clean during handling and installation. Compact presorting simplifies termination of AWG 24/1 to AWG 22/1 conductors and the built-in pair management ensures correct wiring per TIA 568A/B. Support for IEEE 802.3af/at allows use with PoE and PoE+ devices. Integrated strain relief and cable tie points help maintain cable integrity and reduce stress on terminations.

Key specifications

• Body material: zinc diecast, shielded
• Dust cap: separate, removable
• Compatible conductor sizes: AWG 24/1 – AWG 22/1
• Pair management: TIA 568A / TIA 568B colour codes
• PoE support: IEEE 802.3af (PoE) and IEEE 802.3at (PoE+)
• Mounting: keystone opening in distribution panels and frames (not for UAE)
• Strain relief: cable ties included

How to use

Prepare the cable by stripping the outer sheath to expose pairs, insert conductors into the compact presorter according to the TIA 568A or 568B colour code required, and terminate the pairs into the keystone jack. Snap the jack into the keystone opening of the panel or frame. Attach the separate dust cap when the port is not in use. Secure the cable using the provided strain relief and cable ties to minimize mechanical stress on the termination. Verify continuity and wiring with appropriate testing equipment before commissioning.
