MIMO-Κατευθυντική κεραία Panorama Antennas B4BE-6-60-5SP

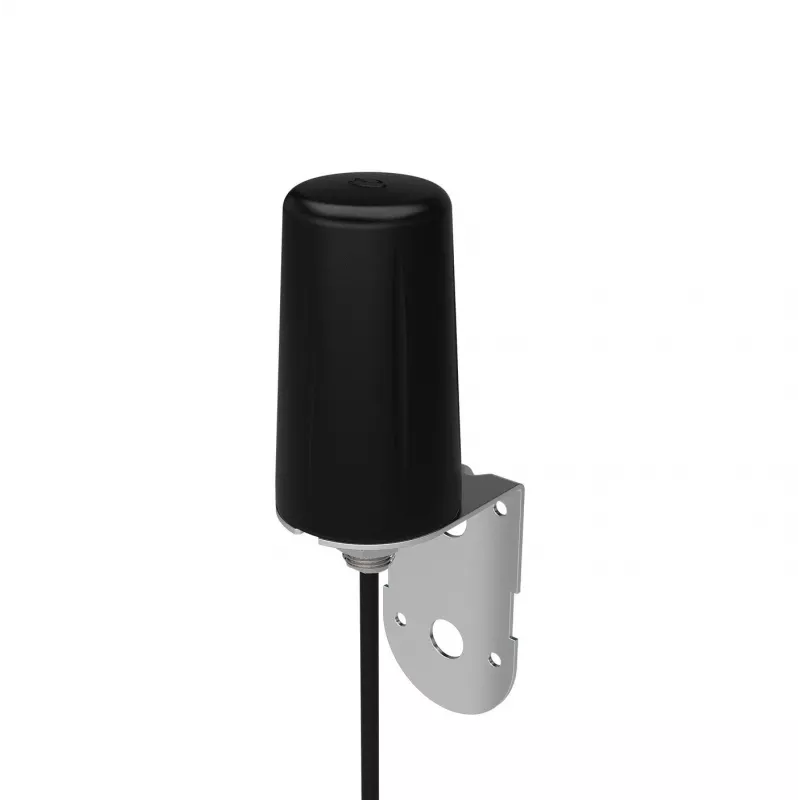

The Panorama B4BE-6-60-5SP is a robust MIMO directional bracket-mount antenna designed for LTE, M2M and IoT applications. It provides wide cellular coverage for 2G/3G/4G and 5G devices with an omni-directional radiation characteristic, is weatherproof for outdoor or elevated installation, and is available with different cable variants for flexible installation options.

Advantages

This antenna offers a 5 dBi gain across a broad frequency range (0.617–6 GHz) and maintains 50 Ω impedance with vertical polarization, making it suitable for various cellular and IoT deployments. Its compact dimensions (164 mm height, 4.8 cm diameter) and light weight (372 g) simplify mounting on walls or masts, while the weatherproof housing ensures reliable outdoor performance. Two cable options are offered: 5 mm double-shielded CS29 or 2.8 mm RG174, enabling compatibility with different installation requirements.

Suitable for

• Enhancing cellular signal for routers, gateways and modems
• M2M and IoT device connectivity in outdoor or elevated locations
• 2G/3G/4G and 5G network coverage extension
• Wall or mast mounting where compact, lightweight antennas are required

Key specifications

• Frequency band: 0.617–6 GHz
• Maximum gain: 5 dBi
• Polarization: vertical
• Impedance: 50 Ω
• Height: 164 mm
• Diameter: 48 mm
• Weight: 0.372 kg
• Colour: Black
• Model / MPN: B4BE-6-60-5SP
• Connector / cable variants: 5 mm double-shielded CS29 or 2.8 mm RG174 (depending on variant)

How to use

Mount the Panorama B4BE antenna on a wall or mast in an elevated or outdoor position where cellular signal strength is highest. Select the correct cable variant for your installation and connect the antenna to the modem, router or gateway following the device manufacturer’s instructions. Ensure the antenna is securely fixed and the cable runs are protected from mechanical strain and water ingress. Aligning is minimal due to its omni-directional pattern, but adjust position if needed to achieve the best signal levels.

Recommendations

For best performance, install the antenna outdoors or as high as practical, keep clear line-of-sight from major obstructions, use appropriate weatherproof cable glands where the cable enters equipment, and choose the CS29 cable variant for lower signal loss over longer runs when required.
