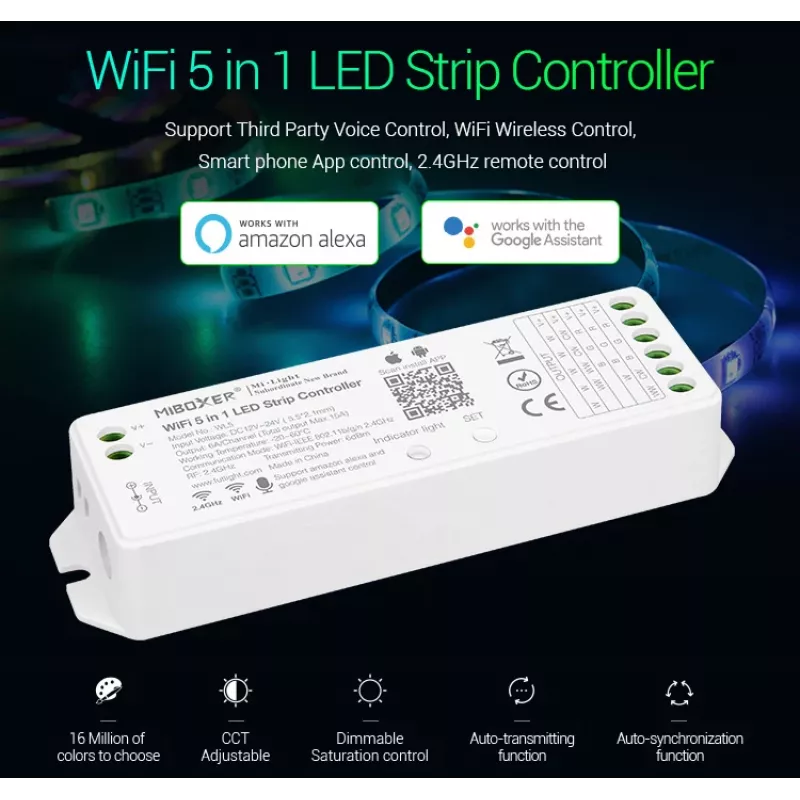

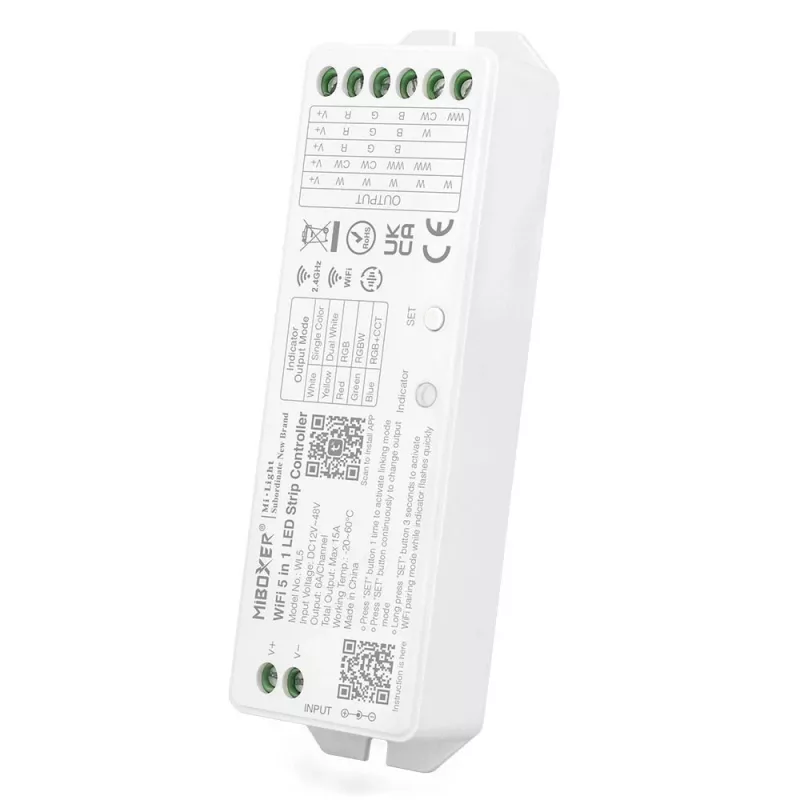

MIBOXER WL5 5in1 RGB+CCT LED Controller DC12-24V WiFi 2.4G Alexa

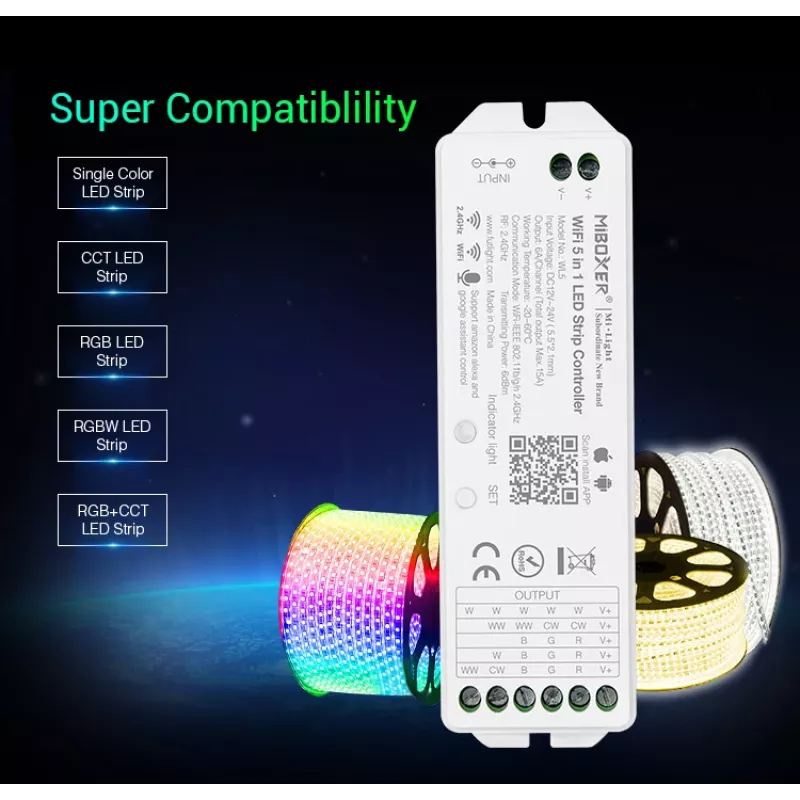

The MIBOXER WL5 is a versatile 5-in-1 LED controller from the Classic Series, designed to control single color, CCT, RGB, RGBW, and RGB+CCT LED strips. It operates on DC 12-24V and supports both WiFi and 2.4G RF wireless control, with compatibility for Amazon Alexa via the MiBoxer WL-Box1 gateway (sold separately).

Advantages

This controller offers five control modes in one device, making it suitable for a wide range of LED lighting projects. The 2.4G RF remote control provides a range of up to 30 meters, while the WiFi connectivity enables smart home integration and app control. With a maximum output of 240W at 24V, it can handle large installations.

Suitable for

• RGB+CCT LED strip lighting
• Smart home lighting systems
• Commercial and residential LED installations
• DIY lighting projects

Key specifications

• Product Type: LED Controller
• Control Modes: 5-in-1 (Single Color, CCT, RGB, RGBW, RGB+CCT)
• Input Voltage: DC 12V - 24V
• Output Current per Channel: 6A
• Max Total Output Current: 10A
• Max Output Power: 120W (12V) / 240W (24V)
• Wireless Control: 2.4GHz RF, up to 30m range
• Smart Home: Amazon Alexa compatible (via WL-Box1 gateway)
• App Control: MiBoxer App (via WL-Box1 gateway)
• Dimming Range: 0-100%
• Channels: 5 (Red, Green, Blue, Warm White, Cold White)
• Operating Temperature: -20°C to 60°C
• Connection: Screw Terminals
• Housing Material: ABS Plastic
• Protection: Overload, Short Circuit
• Certifications: CE, RoHS

Recommendations

For full smart home functionality, pair with the MiBoxer WL-Box1 WiFi gateway (sold separately). Use a compatible 2.4G RF remote for convenient wireless control.
