METZ OpDAT REGpro Μονάδα συγκόλλησης 6xLC-Duplex OS2 καθαρό λευκό RAL 9010 15024A97406-E

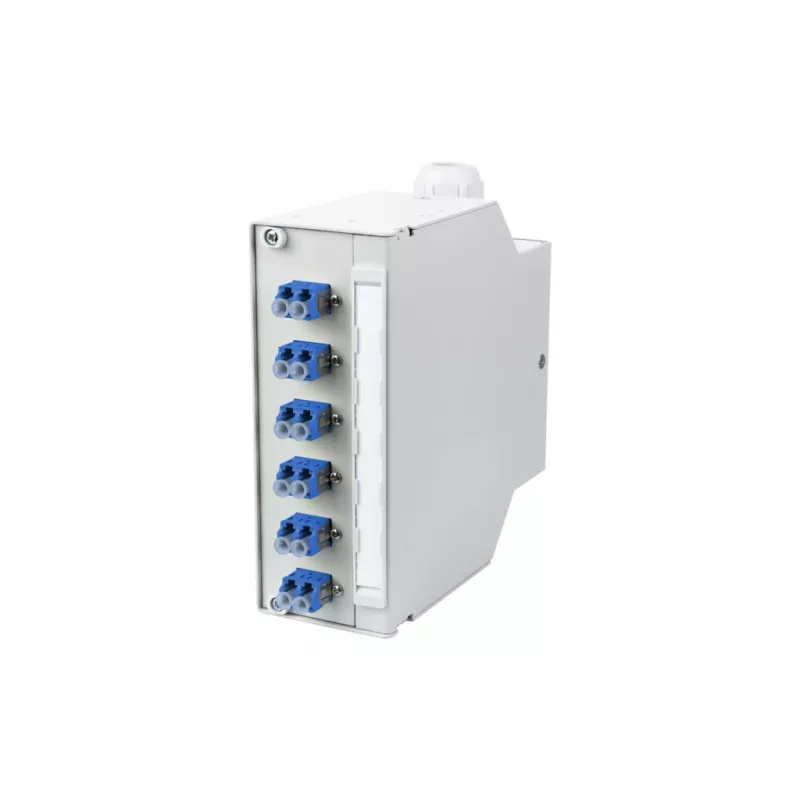

In data centers and enterprise LANs, the METZ OpDAT REGpro splice module provides a clean, organized termination point for single-mode fiber optic links. It integrates six LC duplex adapters in a pure white housing, ready for fusion splicing in compatible OpDAT REGpro panels and boxes.

Key specifications

• Fiber type: Single-mode OS2 (G.652.D)
• Connector type: LC Duplex (LC-D)
• Number of connectors: 6 (12 fibers)
• Connector color: Blue
• Housing color: Pure White RAL 9010
• Splice type: Fusion splice (compatible with mechanical splices)
• Insertion loss: < 0.2 dB
• Return loss: > 50 dB
• Operating temperature: -10°C to +60°C
• Storage temperature: -25°C to +70°C
• Material: High-grade plastic (PC/ABS)

Why choose it

This module delivers low insertion loss and high return loss for reliable single-mode connections. Its blue LC adapters follow standard color coding, simplifying identification in dense fiber installations.

Ideal use cases

• Data center fiber distribution
• Enterprise LAN backbone splicing
• FTTx network termination
• Telecommunications infrastructure

Good to know

The module is designed for use with Metz Connect OpDAT REGpro series housings and panels, ensuring a secure fit and easy integration into existing installations.
