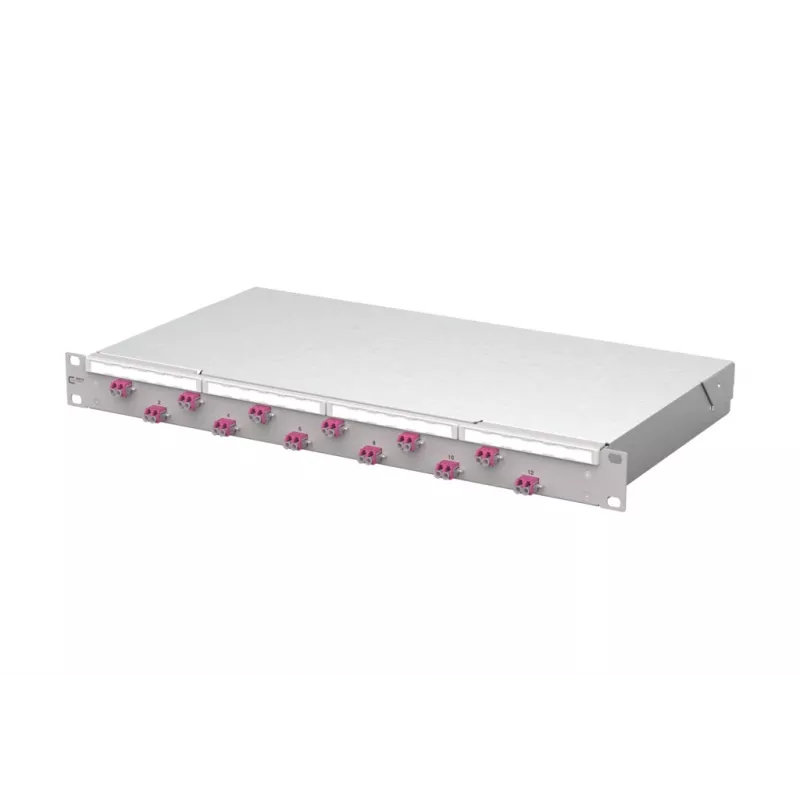

METZ CONNECT VIK 12xLC-D OM4 LWL Patchpanel 1U 24 ίνες 1504507512-F

Managing high-density fiber connections in a 19-inch rack can quickly become chaotic. The METZ CONNECT VIK 12xLC-D OM4 patch panel solves this by providing a structured, reliable termination point for up to 24 multimode fibers in just 1U of rack space.

Who is it for

Network installers and data center technicians who need a compact, high-performance fiber distribution solution for OM4 multimode cabling. Ideal for backbone and horizontal cabling in enterprise environments.

Main features

• 12 LC-Duplex ports, ready for OM4 multimode connections
• 1U 19-inch rack mount design, saving valuable rack space
• Pre-installed 2 m LC-PC pigtails for fast splicing
• Robust steel housing with light grey powder coating
• Integrated splice tray capacity for 24 splices

Specifications

• Product type: Fiber optic patch panel
• Series: VIK
• Mounting: 19-inch rack, 1U
• Ports: 12 LC-Duplex
• Fibers: 24
• Fiber type: Multimode OM4 (50/125 µm)
• Adapter type: LC-Duplex
• Pigtail type: LC-PC, length 2 m
• Housing material: Steel, powder-coated
• Front panel material: Aluminum, anodized
• Colour: Light grey (RAL 7035)
• Rear cable entry: 4x PG16/M20, 2x PG21/M25
• Splice tray capacity: 24 splices (crimp or heat shrink)
• Operating temperature: -20 °C to +70 °C
• Storage temperature: -25 °C to +75 °C

Tips

For best performance, use OM4-rated patch cords and ensure proper bend radius management when routing fibers to and from the panel.
