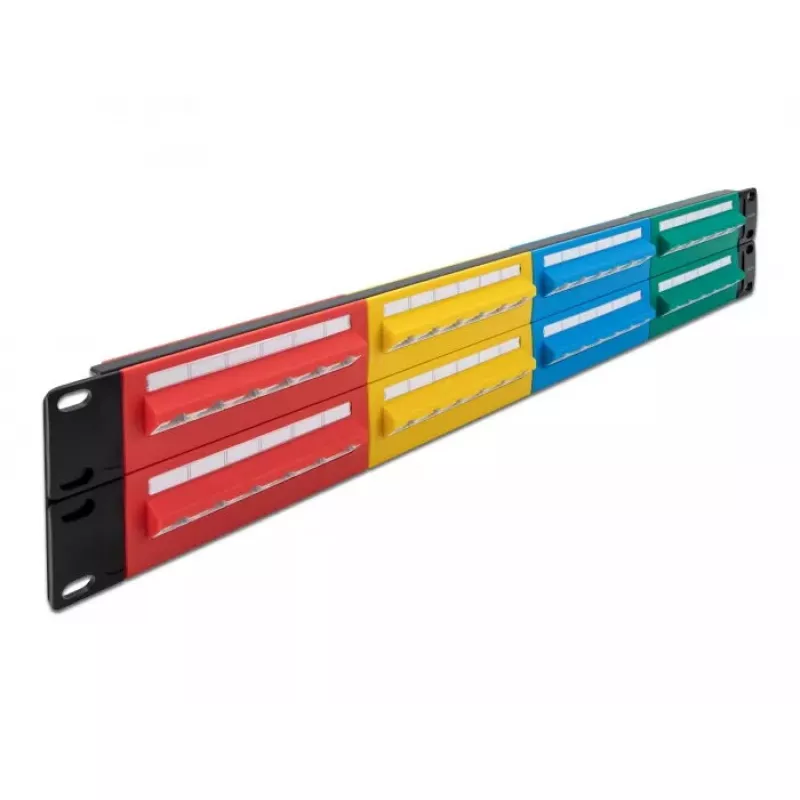

DeLOCK 19 ιντσών Patch Panel 48 Θύρες Cat.5e 2HE χρωματιστό RJ-45

Structured cabling in server rooms often becomes a tangled mess, making it hard to trace connections and manage network segments. The Delock 19" Patch Panel solves this by providing 48 Cat.5e ports in a compact 2U rack-mountable frame. Its coloured RJ-45 ports allow quick visual identification of different networks or services, while LSA punch-down blocks ensure reliable terminations for AWG 22–26 conductors.

Who is it for

Network administrators and installers who need a dependable, high-density patching solution for medium to large installations. Ideal for server rooms, network closets, and campus environments using Cat.5e cabling, where organized cable management and fast port identification are essential.

Main features

• 48 RJ-45 ports compliant with Cat.5e standard
• 2U rack-mountable design for standard 19" cabinets
• LSA punch-down termination blocks support AWG 22–26 wires
• Coloured ports (blue, green, red, yellow) for easy network segmentation
• Durable metal and plastic construction
• Gold-plated RJ-45 contacts for reliable connections
• Rear cable support bar for neat cable management
• Complies with ISO/IEC 11801, EN 50173, and TIA/EIA 568B.2

Specifications

• Brand: Delock
• Model: 66881
• MPN: 66881
• EAN: 4043619668816
• Product type: Network patch panel
• Rack size: 19"
• Rack units: 2U
• Port count: 48
• Network standard: Cat.5e
• Connector type: RJ-45
• Shielding: Unshielded (UTP)
• Termination type: LSA (Krone compatible)
• Wiring standard: TIA-568A/B
• Housing material: Metal (steel) and plastic
• RJ-45 contact plating: Gold-plated (3µ)
• IDC terminal material: Phosphor bronze with tin plating
• Colour: Black panel, coloured ports (blue, green, red, yellow)
• Cable management: Rear cable support bar
• Mounting: Rackmount
• Insertion cycles (RJ-45): > 750
• IDC termination cycles: > 200
• Operating temperature: -10 °C to 50 °C
• Certification: ISO/IEC 11801, EN 50173, TIA/EIA 568B.2

Tips

Use a proper punch-down tool to terminate cables onto the LSA blocks, following T568A or T568B consistently. Leverage the colour-coded ports to separate VLANs, departments, or security zones. Mount the panel with the rear cable support bar to reduce strain on terminations and keep the rack tidy.
