METZ CONNECT Θερμοσυστελλόμενο Προστατευτικό Σύνδεσης 15090402-I

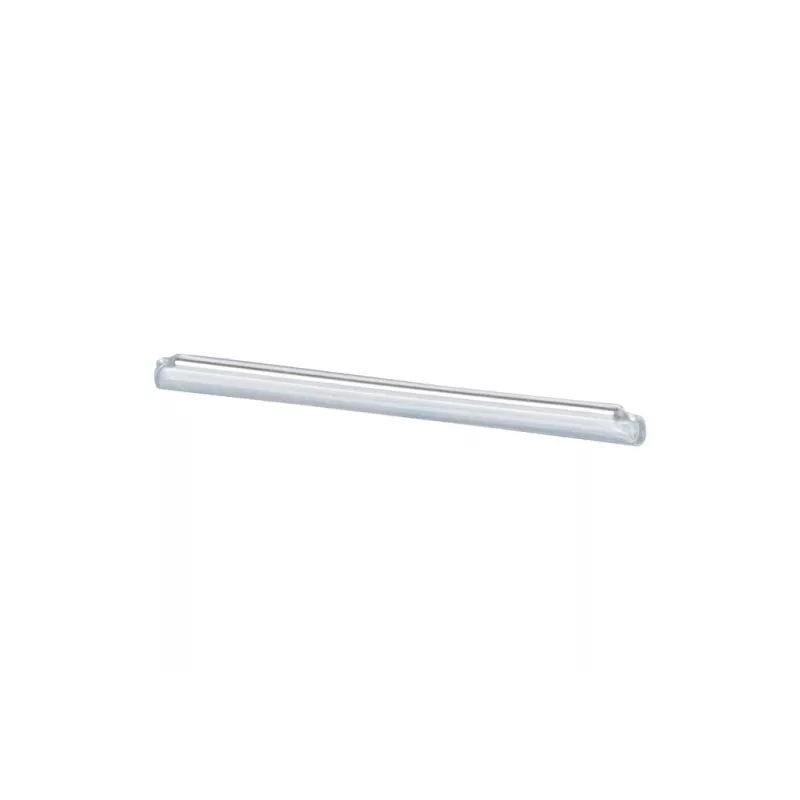

The METZ CONNECT Heat Shrink Splice Protector 15090402-I is a high-quality protective sleeve designed for single fiber optic splices. It provides mechanical strength and environmental sealing to ensure long-term reliability of fusion splices in telecom and data networks.

Advantages

This splice protector offers a robust stainless steel strength member for excellent mechanical protection, combined with a transparent polyolefin outer tube and hot melt adhesive inner tube for secure sealing. The 3:1 shrink ratio ensures a tight fit on various fiber sizes, and the operating temperature range of -40°C to +85°C makes it suitable for harsh environments.

Suitable for

• Single-mode and multi-mode fiber optic cables (250µm, 900µm buffered)
• Fusion splice protection in FTTH, LAN, and telecom networks
• Indoor and outdoor applications requiring environmental sealing

Key specifications

• Product Type: Heat Shrink Splice Protector
• Sleeve Length: 60 mm
• Outer Diameter (before shrinking): Approx. 3.5 mm
• Outer Diameter (after shrinking): Approx. 2.5 mm
• Strength Member: Stainless Steel
• Outer Tube Material: Polyolefin
• Inner Tube Material: Hot Melt Adhesive
• Shrink Temperature: +110°C to +130°C
• Quantity per Pack: 100 pieces
• Color: Transparent
• RoHS Compliant

Recommendations

For optimal performance, use with a fusion splicer and follow the manufacturer's instructions for heating and shrinking. Store in a cool, dry place.
