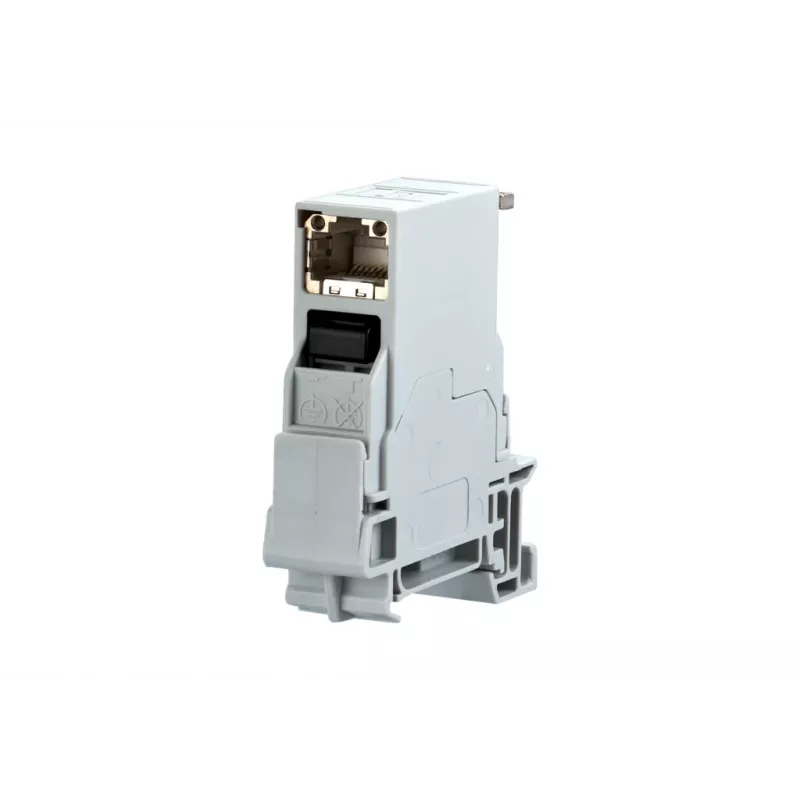

METZ CONNECT RJ45 Keystone Module Cat.6A STP Γκρι (RAL 7035) 1401906113KE

The METZ CONNECT 1401906113KE is a high-performance RJ45 keystone module designed for structured cabling systems. It supports Category 6A (Class EA) performance, ensuring reliable data transmission up to 500 MHz. The module is shielded (STP/FTP) and features a tool-free IDC termination for quick and easy installation. Its die-cast zinc housing provides durability, and the gold-plated phosphor bronze contacts guarantee excellent conductivity and corrosion resistance. Suitable for PoE, PoE+, and 4PPoE applications, this module is ideal for enterprise networks, data centers, and industrial environments.

Advantages

Tool-free termination reduces installation time and effort. Shielded design minimizes electromagnetic interference (EMI). Robust die-cast zinc housing ensures long-term reliability. Supports advanced Power over Ethernet standards (IEEE 802.3af/at/bt).

Suitable for

• Enterprise network infrastructure
• Data center cabling
• Industrial Ethernet applications
• PoE-powered devices (cameras, access points, IoT)

Key specifications

• Connector Type: RJ45 (8P8C)
• Performance Class: Category 6A (Class EA)
• Shielding: Shielded (STP/FTP)
• Termination: IDC, tool-free
• Wiring Scheme: T568A / T568B
• Cable Entry Angle: 180°
• Color: Grey (RAL 7035)
• Housing Material: Die-cast zinc
• Contact Material: Gold-plated phosphor bronze
• Frequency Range: Up to 500 MHz
• Cable Compatibility: AWG 24/1 - 22/1 (solid), AWG 26/7 - 22/7 (stranded)
• PoE Support: PoE, PoE+, 4PPoE (IEEE 802.3af/at/bt)
• Standards: ISO/IEC 11801, EN 50173, TIA/EIA-568-C.2
• Mating Cycles: ≥ 750
• Operating Temperature: -40 °C to +70 °C
• Mounting: Keystone module, snap-in

Recommendations

For optimal performance, use with Category 6A shielded cabling and ensure proper grounding. This module is compatible with standard keystone patch panels and faceplates.
